R1-16O802 (316-8) - Toro Garden Tractor (1990) KOHLER BAFFLES & SHROUDS Parts Diagram

Garden Tractor

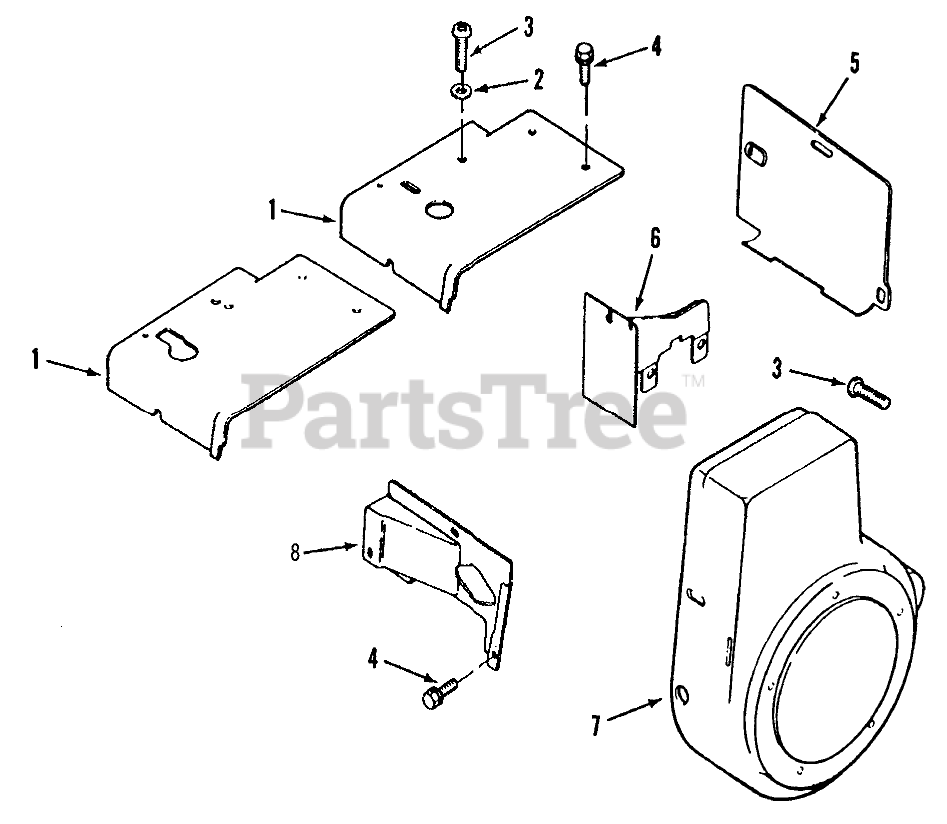

KOHLER BAFFLES & SHROUDS Parts Diagram

  • Title
1

Kohler 45 063 08

Baffle-Head
(Superseded to 45 063 08-S)

$

$

Not available

2

Kohler X-25-53

Washer
(Superseded to X-25-53-S)

$3.49

$

Usually ships in 2-5 days

0

3

4708608

Screw-Posidriv T.H.

$

$

Not available

4

52086 11

Hex. Washer Hd. Screw

$

$

Not available

5

Kohler 47 063 10

Baffle-Cylinder
(Superseded to 47 063 10-S)

$29.99

$

Usually ships in 2-5 days

0

6

Kohler 47 063 07

Baffle-Inner
(Superseded to 47 063 07-S)

$

$

Not available

7

Kohler 47 027 42

Housing-Blower
(Superseded to 47 027 42-S)

$237.99

$

Usually ships in 2-5 days

0

8

Kohler 47 063 06

Baffle-Side Air
(Superseded to 47 063 06-S)

$

$

Not available
