R1-16O801 (316-8) - Toro Garden Tractor (1990) THROTTLE CHOKE & EXHAUST Parts Diagram

Garden Tractor

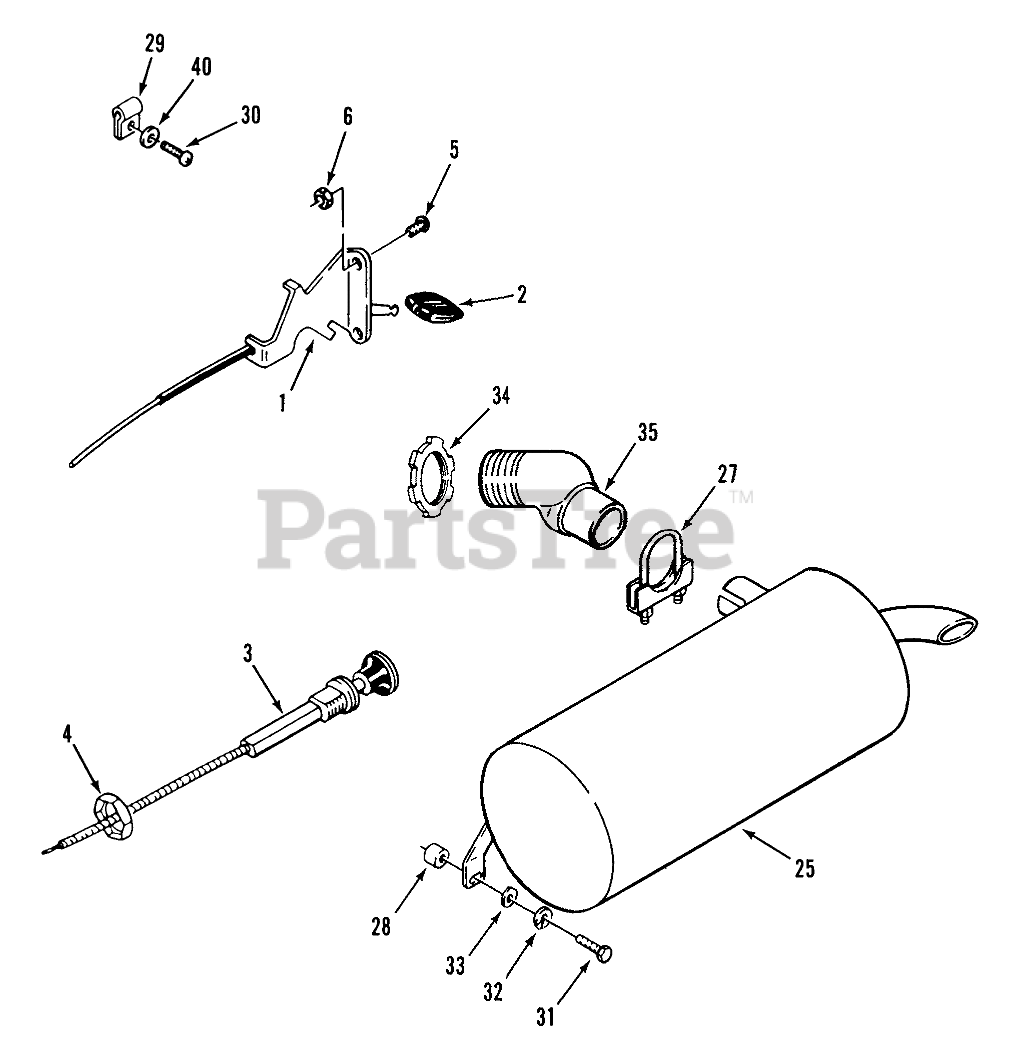

THROTTLE CHOKE & EXHAUST Parts Diagram

  • Title

1

Toro 112199

Throttle Control 310, 312, 414
(Superseded to 115854)

$69.99

$

In Stock, only 1 left!

0

Toro 115392

CONTROL-THROTTLE

$93.99

$

In Stock, only 3 left!

0

2

Toro 108917

KNOB-THROTTLE

$2.99

$

In Stock, only 1 left!

0

3

Toro 112214

CONTROL CHOKE

$52.99

$

In Stock, Qty 5

0

Toro 114951

CONTROL-CHOKE

$101.99

$

Usually ships in 3-6 days

0

4

Toro 109530

NUT-HEX PALNUT

$0.99

$

In Stock, only 4 left!

0

5

Toro 9107922

SCRW-PHC

$9.99

$

Usually ships in 3-6 days

0

6

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

25

Toro 112213

Muffler
(Superseded to 94-3739)

$485.99

$

Usually ships in 3-6 days

0

27

Toro 106858

CLAMP-1 1/2
(Superseded to 2112-9)

$9.49

$

Usually ships in 3-6 days

0

28

Toro 6876

SPACER

$

$

Not available

29

Toro KH10344

Clip

$

$

Not available

30

Toro KH10610

Screw

$

$

Not available

31

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

32

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

33

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

34

Toro KH10535

Nut-Lock

$

$

Not available

35

Toro KH10278

Elbow

$

$

Not available

40

Toro KH10570

Washer

$

$

Not available
