R1-16O801 (316-8) - Toro Garden Tractor (1990) ONAN OIL BASE FILL TUBE AND BRACKET Parts Diagram

Garden Tractor

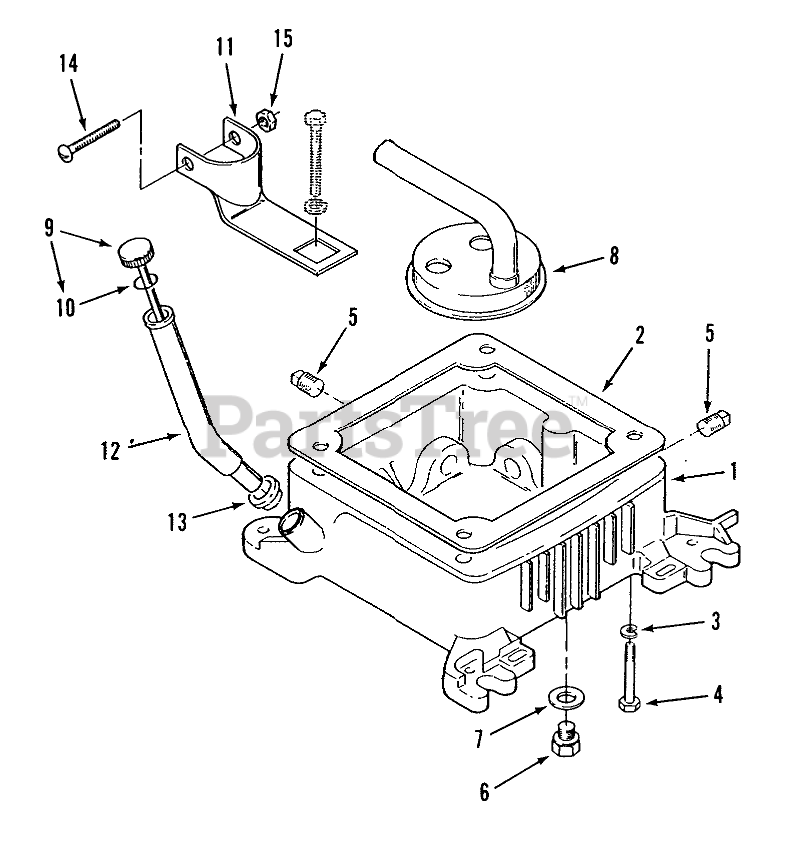

ONAN OIL BASE FILL TUBE AND BRACKET Parts Diagram

  • Title
1

Toro 102-1325

Oil Base (Includes All Plugs and Plug Gasket)

$

$

Currently unavailable

2

Toro 102-1200

Gasket, Oil Base

$

$

Currently unavailable

3

Toro 850-0050

Washer, Lock-Spring

$

$

Currently unavailable

4

Toro 800-0061

Screw, Cap-Hex Head

$

$

Currently unavailable

5

Toro 505-0110

Sq. Hd. Plug 3/8

$

$

Currently unavailable

6

Toro 102-0938

Plug, Oil Drain

$

$

Currently unavailable

7

Toro 102-0743

Gasket, Oil Drain

$

$

Currently unavailable

8

Toro 120-0713

Cup, Intake-Oil Pump

$

$

Currently unavailable

9

Toro 123-1637

Oil Fill Cap and Indicator (Includes "O" Ring)

$

$

Currently unavailable

10

Toro 509-0142

O-Ring, Oil Fill Cap

$

$

Currently unavailable

11

Toro 123-1742-01

Fill Tube Bracket

$

$

Currently unavailable

12

Toro 123-1685-02

Oil Fill Tube-Chrome 15-3/4" Lg

$

$

Currently unavailable

13

Toro 509-0209

Oil Fill Tube Seal

$

$

Currently unavailable

14

Toro 815-0576

Pan Hd. Screw No. 10 x 1-1/4

$

$

Currently unavailable

15

Toro 870-0410

Speed Nut

$

$

Currently unavailable
