R1-16O801 (316-8) - Toro Garden Tractor (1990) ONAN INTAKE MANIFOLD Parts Diagram

Garden Tractor

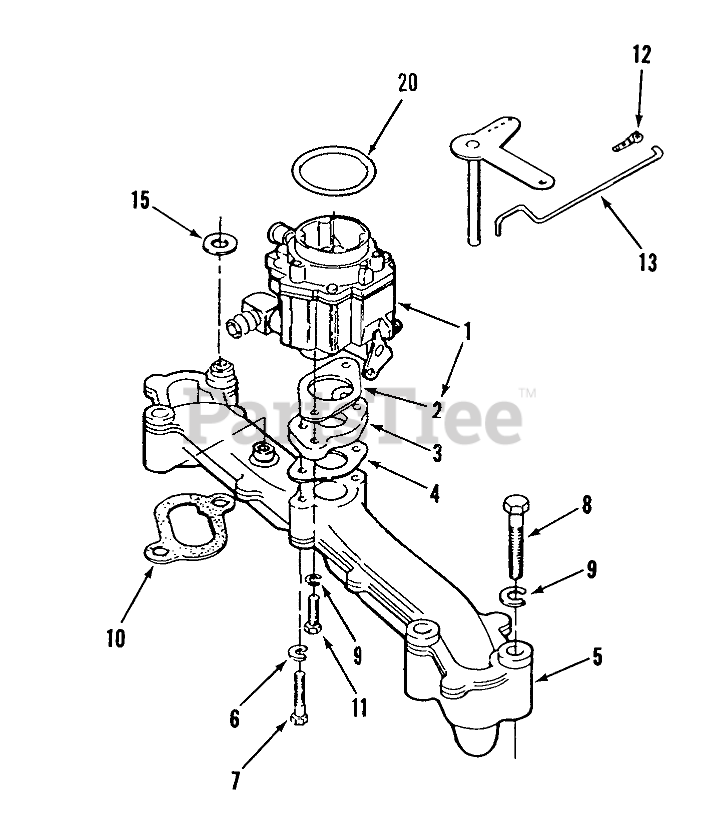

ONAN INTAKE MANIFOLD Parts Diagram

  • Title
1

Toro 146-0428

Carburetor (Includes Mounting Gasket, Elbow and "O" Ring) see section 7-17 for complete carburetor breakdown

$

$

Currently unavailable

2

Toro 154-0733

Gasket Carburetor Mounting

$

$

Currently unavailable

3

Toro 154-1977-01

Carburetor Adapter

$

$

Currently unavailable

4

Toro 145-0438

Gasket, Adapter to Manifold

$

$

Currently unavailable

5

Toro 154-2339

Intake Manifold

$

$

Currently unavailable

6

Toro 850-0040

Washer, Lock

$

$

Currently unavailable

7

Toro 800-0023

Screw Cap-Hex Hd.

$

$

Currently unavailable

8

Toro 800-0033

Screw, Cap-Hex Head

$

$

Currently unavailable

9

Toro 850-0045

Washer, Lock-Spring

$

$

Currently unavailable

10

Toro 154-1446

Manifold to Block Gasket

$

$

Currently unavailable

11

Toro 800-0028

Hex Hd. Cap Screw 5/16-18 x 1

$

$

Currently unavailable

12

Toro 518-0004

Clip, Retaining-Control Rod

$

$

Currently unavailable

13

Toro 150-1924

Rod, Governor Control

$

$

Currently unavailable

15

Toro 526-0113

Flat Washer 5/16

$

$

Currently unavailable
