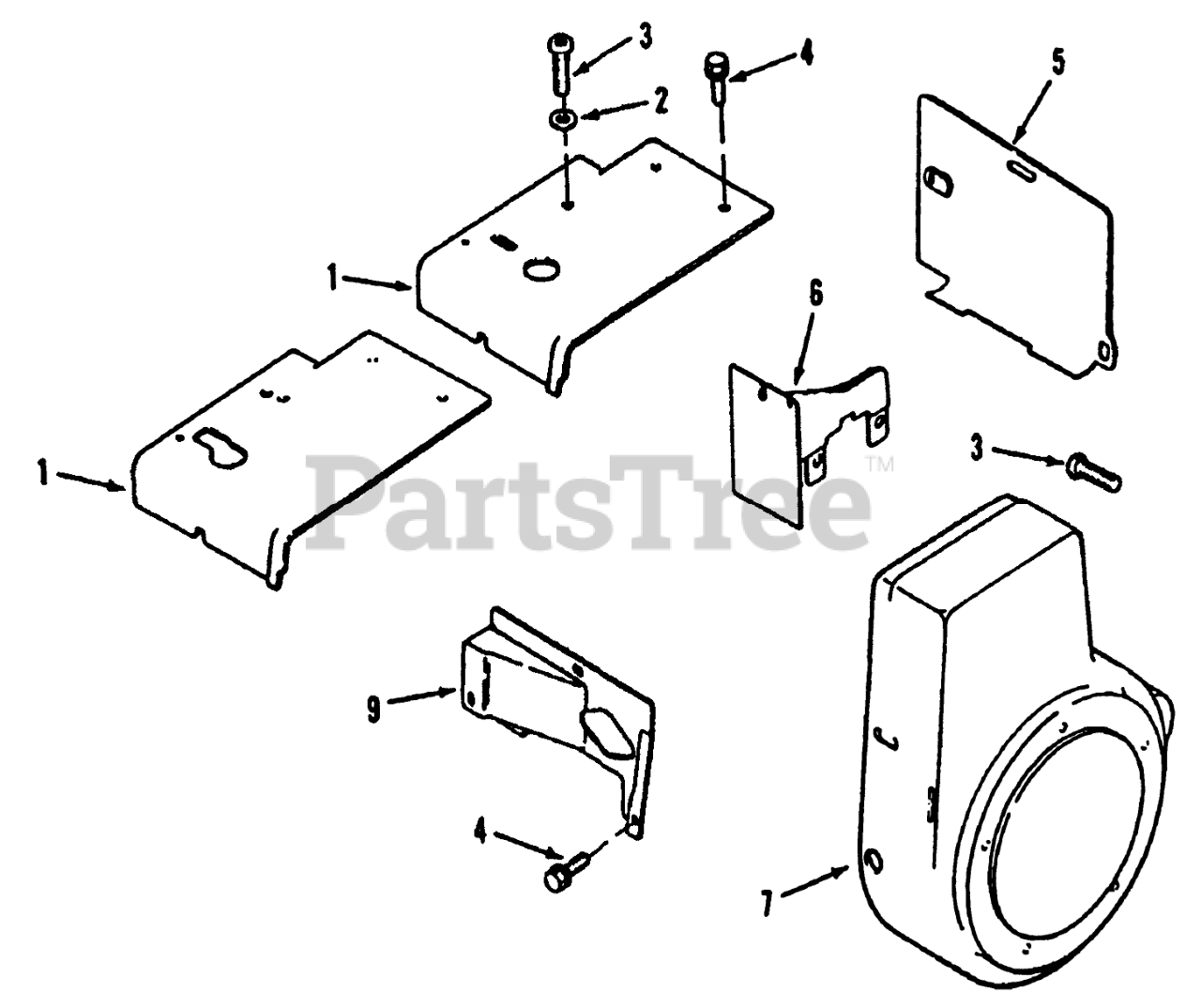

R1-12K804 (312-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) KOHLER BAFFLES AND SHROUDS Parts Diagram

Garden Tractor

KOHLER BAFFLES AND SHROUDS Parts Diagram

  • Title
1

Toro KH10231

Baffle-Head

$

$

Not available

2

Toro KH10567

Washer

$

$

Not available

3

Toro KH10289

Screw-Pozidriv T.H.

$

$

Not available

4

Toro KH10413

Screw Hex Hd

$

$

Not available

5

Toro KH10282

Baffle-Cylinder

$

$

Not available

6

Toro KH10280

Baffle-Inner

$

$

Not available

7

Toro KH10265

Blower Housing

$

$

Not available

9

Toro KH10279

Baffle-SideAir

$

$

Not available

Decal-HP

Note: Not illustrated

$

$

Not available
