R1-12K804 (312-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) KOHLER AIR INTAKE Parts Diagram

Garden Tractor

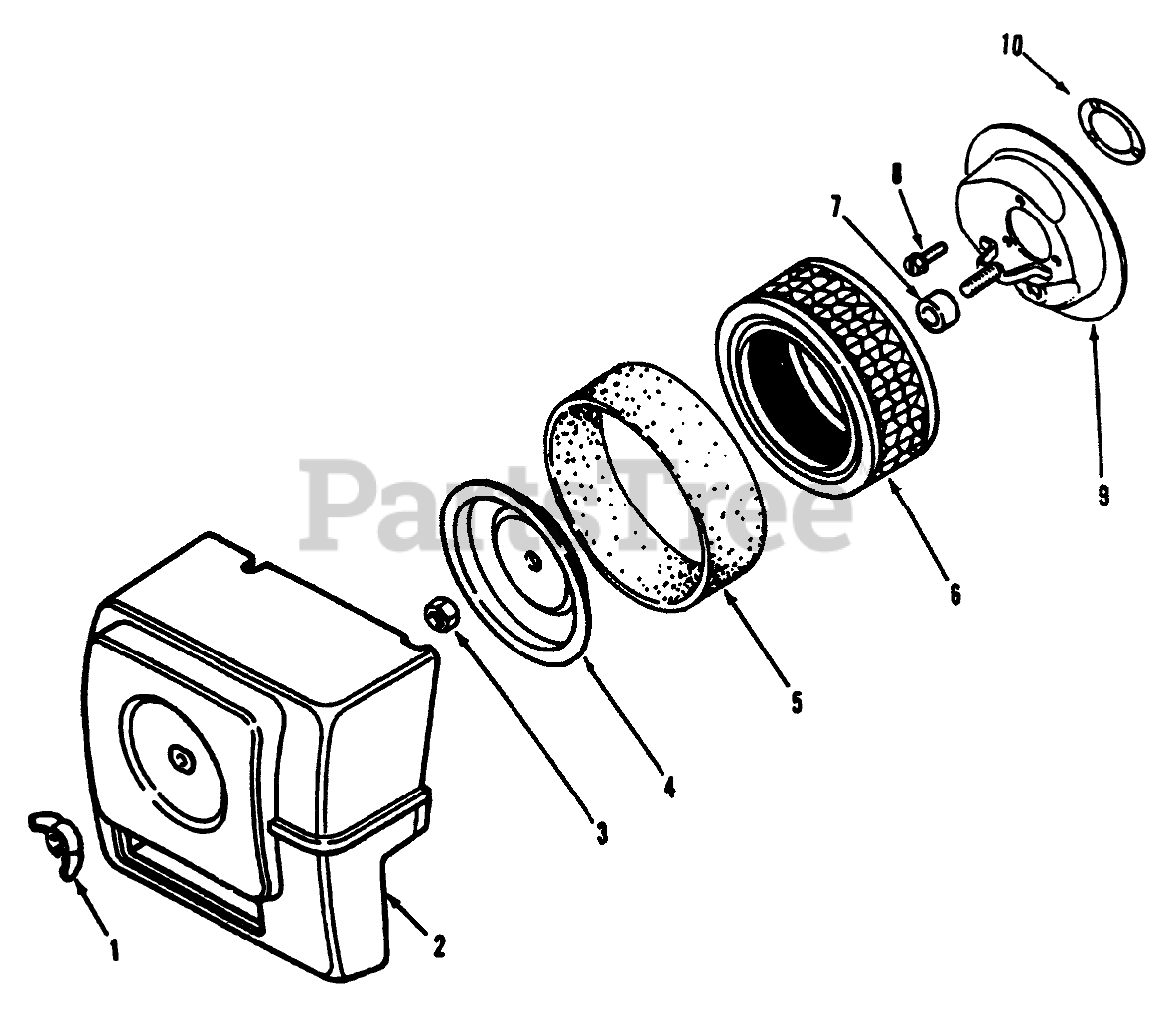

KOHLER AIR INTAKE Parts Diagram

  • Title
1

Toro KH10576

Nut-Wing

$

$

Not available

2

Toro KH10299

Cover

$

$

Not available

3

$

$

Not available

4

Toro KH10412

Air Cleaner Element Cover

$

$

Not available

5

Toro KH10235

Element-Precleaner

$

$

Not available

6

Toro KH10236

Element

$

$

Not available

7

$

$

Not available

8

Toro KH10609

Screw

$

$

Not available

9

Toro KH10297

Base-AirCleaner

$

$

Not available

10

Toro KH10697

Gasket

$

$

Not available

Toro KH10191

Decal-Air Cleaner

Note: Not illustrated

$

$

Not available
