R1-12K802 (312-8) - Toro Garden Tractor (1990) TORO POWER PLUS INTAKE MANIFOLD Parts Diagram

Garden Tractor

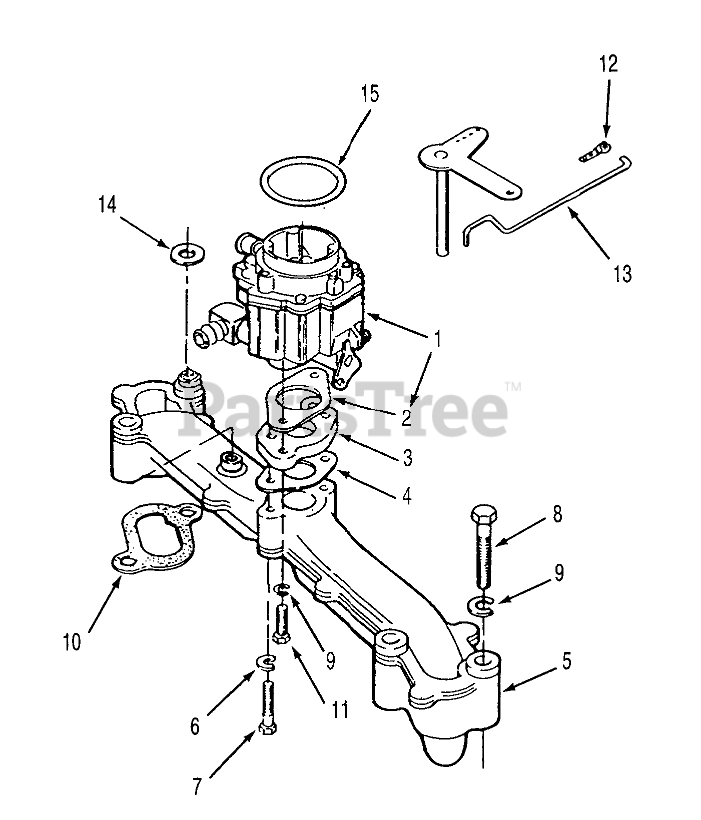

TORO POWER PLUS INTAKE MANIFOLD Parts Diagram

  • Title

1

Toro NN10203

Carburetor (Includes Mounting Gasket, Elbow and "O" Ring) see section 7-17 for complete carburetor breakdown
(Superseded to NN10504)

$

$

Not available

2

Toro NN10235

Gasket
(Superseded to 82-0850)

$12.99

$

In Stock, only 1 left!

0

3

Toro NN10239

Fitting-Barbed
(Superseded to 71-6480)

$

$

Not available

4

Toro NN10192

Gasket
(Superseded to 57-8790)

$

$

Not available

5

Toro NN10242

Intake Manifold
(Superseded to NN10441)

$

$

Not available

6

Toro NN10419

Washer-Lock
(Superseded to 82-1620)

$

$

Not available

7

Toro NN10372

Screw Hex Hd. 1/4-20 x 1-3/8
(Superseded to 3-2115)

$

$

Not available

8

Toro NN10375

HHCS

$

$

Not available

9

Toro NN10420

Washer
(Superseded to 82-1630)

$

$

Not available

10

Toro NN10236

Gasket
(Superseded to 71-5980)

$14.99

$

In Stock, only 3 left!

0

11

Toro NN10373

HHCS 5/16-18 X 1

$

$

Not available

12

Toro NN10342

Retaining Clip
(Superseded to 57-9700)

$5.49

$

In Stock, only 1 left!

0

14

Toro NN10362

FLAT WASHER

$

$

Not available

15

Toro NN103224

"O"-Ring

$

$

Currently unavailable
