R1-12K801 (312-8) - Toro Garden Tractor (1990) WHEELS AND TIRES Parts Diagram

Garden Tractor

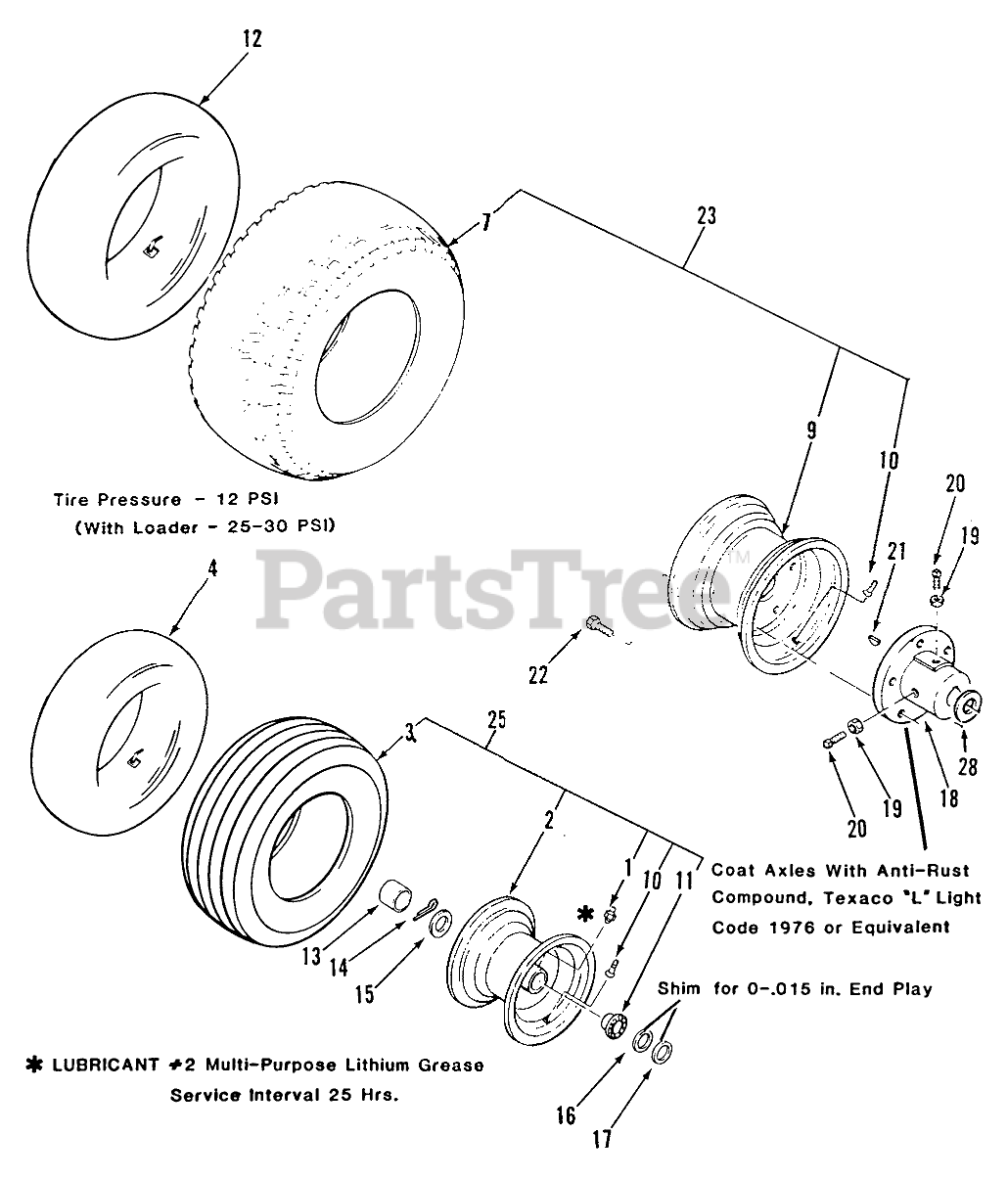

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

2

Toro 110693

Front Wheel (includes item 1, 10, 11)
(Superseded to 117285)

$

$

Not available

3

Toro 8119

TIRE15 X 6.00-6

$

$

Not available

4

Toro 100079

TUBE

$

$

Not available

7

Toro 111517

TIRE 22 X 9.00-12

$

$

Not available

9

Toro 111516

WHEEL

$307.99

$

Usually ships in 3-6 days

0

10

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

11

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 2 left!

0

12

Toro 7007

TUBE-INNER
(Superseded to 231-90)

$

$

Not available

Toro 100291

Tube Cleat Tires
(Superseded to 231-90)

$

$

Not available

13

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

14

Toro 932026

COTTER PIN-4

$0.99

$

In Stock, Qty 13

0

15

Toro 109114

WASHER-WHEEL

$3.99

$

In Stock, only 2 left!

0

16

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

17

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

18

Toro 105762

Hub-Rear
(Superseded to 93-3659-03)

$171.99

$

Usually ships in 3-6 days

0

19

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

20

Toro 909554

Screw-Set
(Superseded to 3243-5)

$2.99

$

In Stock, Qty 13

0

21

Toro 937097

WOODRUFF KEY

$

$

Not available

22

Toro 1004

Lug Nut

$

$

Not available

23

Toro 111518

Rear Wheel & Tire Assy 312

$

$

Not available

25

Toro 110692

Assy-Wheel & Tire Front
(Superseded to 110697)

$

$

Not available
