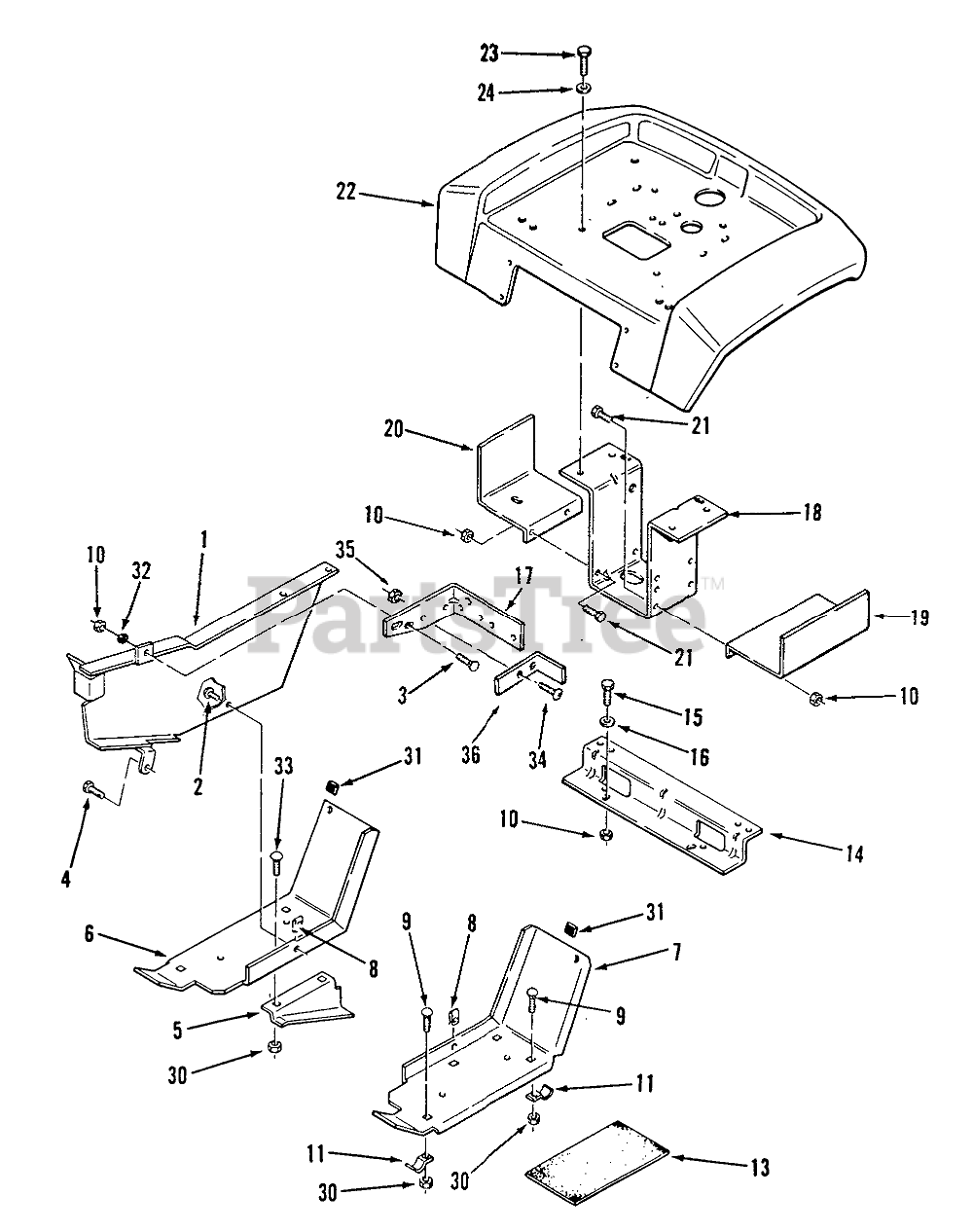

R1-12K801 (312-8) - Toro Garden Tractor (1990) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

SHEET METAL AND COVERS Parts Diagram

  • Title
1

Toro 107619

ASSY-BELT GUARD 8 R

$

$

Not available

Toro 107975

Belt Guard
(Superseded to 95-7695-01)

$

$

Not available

2

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

3

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

4

Toro 926694

SCREW

$

$

Not available

5

Toro 106352

GUID-LOWER BLTR
(Superseded to 106352-01)

$21.99

$

Usually ships in 3-6 days

0

6

Toro 106222

Footrest-RH
(Superseded to 106222-01)

$

$

Not available

7

Toro 106223

FOOTREST LH R

$

$

Not available

8

$2.99

$

In Stock, Qty 20+

0

9

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

10

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

11

Toro 7456

BRACKET

$

$

Not available

13

Toro 110636

PAD FOOTREST

$

$

Not available

14

Toro 107951

BRACKET-FENDER B
(Superseded to 95-7665-03)

$65.99

$

In Stock, only 1 left!

0

15

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

16

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

17

Toro 108823

SUPPORT-BELT GUAR B

$

$

Not available

Toro 109554

BRACKET-BELTB

$

$

Not available

18

Toro 108897

Bracket-Fender Support
(Superseded to 79-4990-03)

$126.99

$

Usually ships in 3-6 days

0

19

Toro 108464

Fuel Tank Support LH
(Superseded to 108464-03)

$38.99

$

Usually ships in 3-6 days

0

20

Toro 106236

Support-FueITank RH
(Superseded to 94-6692-03)

$53.99

$

Usually ships in 3-6 days

0

21

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

22

Toro 110960

Fender
(Superseded to 94-3722-01)

$

$

Not available

23

Toro 926694

SCREW

$

$

Not available

24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

30

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

31

Toro 518211

BUMPER

$4.49

$

In Stock, Qty 6

0

32

Toro 108457

NUT-PUSH

$

$

Not available

33

Toro 900214

Bolt-Carriage
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

34

Toro 913112

HWHMS 10-24 X 5/8

$

$

Not available

35

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

36

Toro 111535

BRACKET FUSE

$

$

Not available
