R1-12K801 (312-8) - Toro Garden Tractor (1990) ONAN STARTER Parts Diagram

Garden Tractor

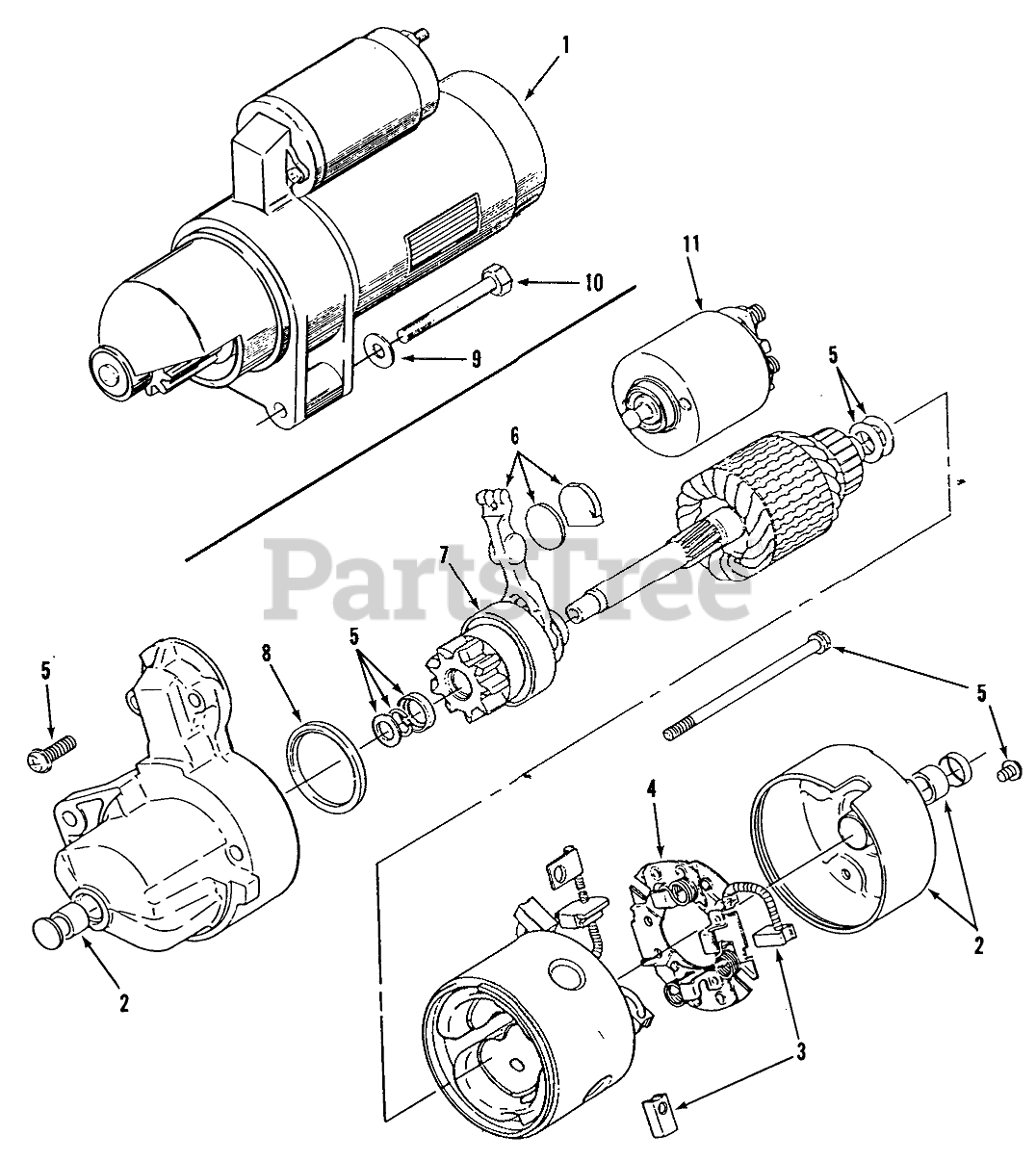

ONAN STARTER Parts Diagram

  • Title
1

Toro 191-1808-04

Starter, Complete-See Components Below

$

$

Currently unavailable

2

Toro 191-1762

Bushing Kit (Includes Frt Bushing and Rear Cap w/Bushing)

$

$

Currently unavailable

3

Toro 191-1763

Starter Brush Kit (Includes Positive Brush (2) and Negative Brush w/Pigtail)

$

$

Currently unavailable

4

Toro 191-1764

Starter Brush Holder (Includes Brush Holder w/Negative Brush)

$

$

Currently unavailable

5

Toro 191-1765

Starter Hdwr Kit (Includes Solenoid Screws (2), Brush Holder Screws (2), Thru Bolts (2), Armature Shims (2), Pinion Stop Collar, and Pinion Retaining Ring)

$

$

Currently unavailable

6

Toro 191-1766

Starter Shift Lever Kit (Includes Shift Lever, Wear Plate and Rubber Plug)

$

$

Currently unavailable

7

Toro 191-1810

Starter Clutch (Includes Pinion Gear w/Clutch)

$

$

Currently unavailable

8

Toro 191-1811

Dust Seal

$

$

Currently unavailable

9

Toro 526-0122

Washer, Flat

$

$

Currently unavailable

10

Toro 800-0039

Cap Screw 5/16-18 x 3-1/2

$

$

Currently unavailable

11

Toro 191-1809

Starter Solenoid Kit (Includes Solenoid, Spring and Plunger)

$

$

Currently unavailable
