R1-12K801 (312-8) - Toro Garden Tractor (1990) KOHLER PISTON & RINGS Parts Diagram

Garden Tractor

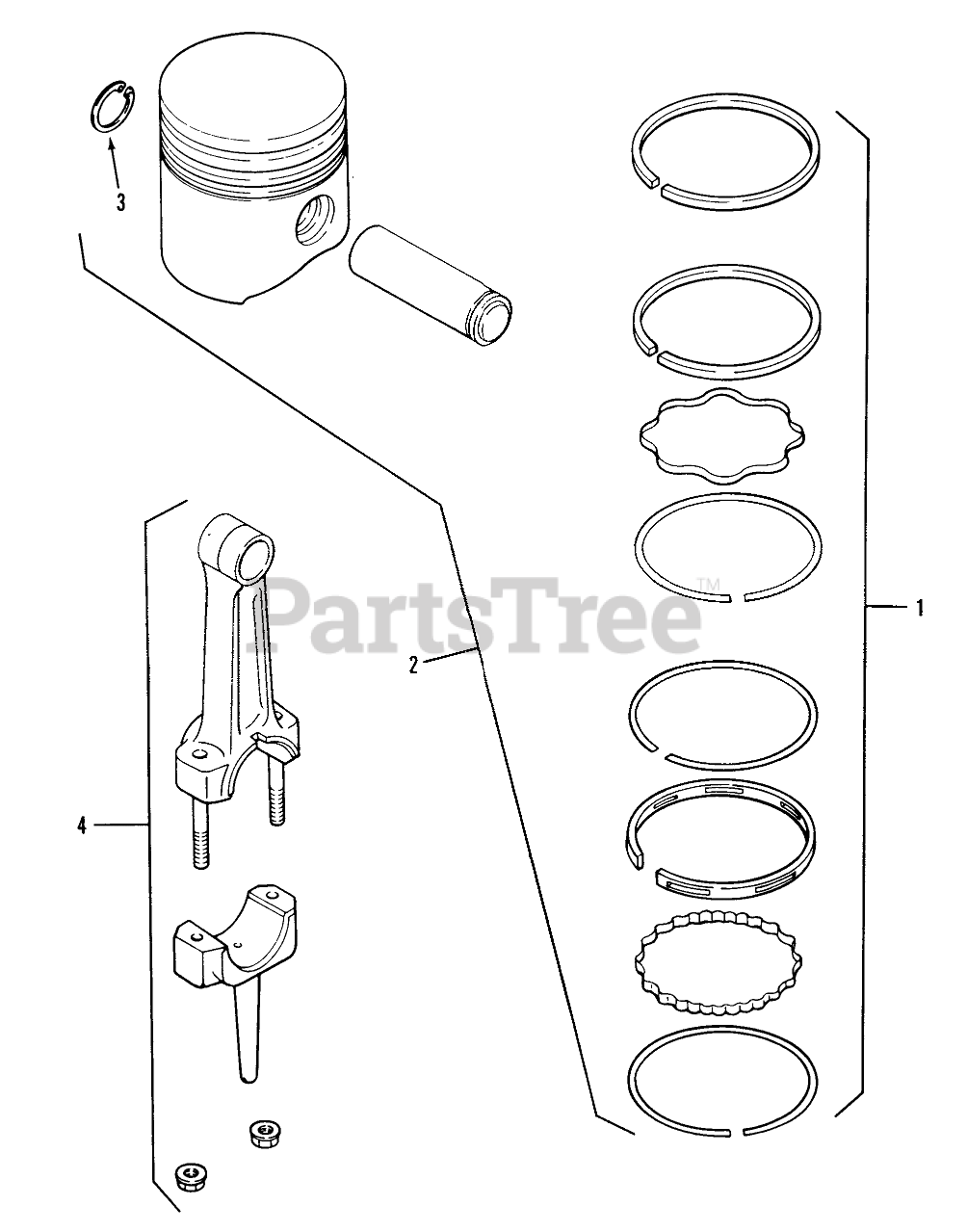

KOHLER PISTON & RINGS Parts Diagram

  • Title
1

Toro 235889

Ring set-Std. & .003 (Svc.)
(Superseded to 706920)

$

$

Not available

Toro 235890

Ring set-.010 (Service)
(Superseded to 743691)

$

$

Not available

Toro 235891

Ring set-.020 (Service)

$

$

Currently unavailable

Toro 235892

Ring set-.030 (Service)
(Superseded to 706921)

$

$

Not available

2

4787406

Piston wiring Set Std. 312

$

$

Not available

4787407

Piston wiring Set .003 312

$

$

Not available

4787408

Piston wiring Set .010 312

$

$

Not available

4787409

Piston wiring Set .020 312

$

$

Not available

4787410

Piston wiring Set .030 312

$

$

Not available

3

Toro 47 018 01

Retainer-Piston Pin

$

$

Currently unavailable

4

4706709

Connecting Rod Std. 312

$

$

Not available

4706710

Connecting Rod .010 312

$

$

Not available
