R1-12K801 (312-8) - Toro Garden Tractor (1990) KOHLER OIL PAN & DIPSTICK Parts Diagram

Garden Tractor

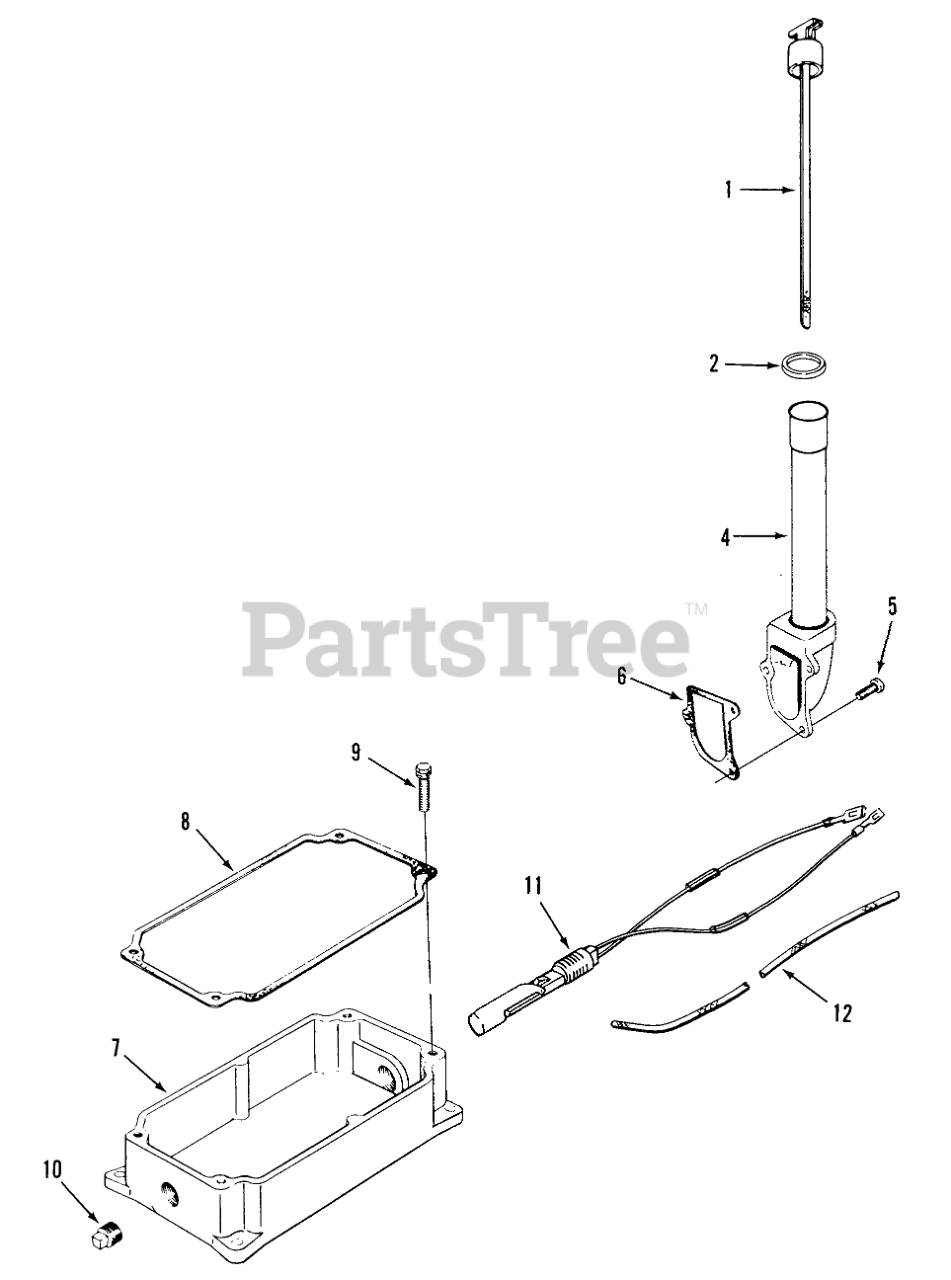

KOHLER OIL PAN & DIPSTICK Parts Diagram

  • Title

1

Kohler 47 038 27

Dipstick
(Superseded to 47 038 27-S)

$34.99

$

Usually ships in 2-5 days

0

2

Toro 41 152 01

O-ring

$

$

Currently unavailable

4

Kohler 47 029 06

Adapter-Oil Fill
(Superseded to 47 029 06-S)

$

$

Not available

5

Kohler X-131-2

Screw
(Superseded to X-131-2-S)

$

$

Not available

6

Kohler 237064

Gasket
(Superseded to 237064-S)

$10.99

$

Usually ships in 2-5 days

0

7

Kohler 45 199 05

Oil Pan
(Superseded to 45 199 05-S)

$

$

Not available

8

Kohler 235057

Gasket
(Superseded to 235057-S)

$10.99

$

In Stock, only 1 left!

0

9

Kohler X-159-3

Screw
(Superseded to X-159-3-S)

$

$

Not available

10

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

11

Kohler 25 704 01

Float Switch Kit (Includes Items 12 & Decal)
(Superseded to 25 704 03)

$

$

Not available

12

Kohler 25 431 02

Sleeving
(Superseded to 25 431 02-S)

$20.99

$

Usually ships in 2-5 days

0

2511305

Decal-Oil Sentry

Note: Not illustrated

$

$

Not available

4815501

Connector

Note: Not illustrated

$

$

Not available

Kohler 47 755 27

Gasket Set w/Seals
(Superseded to 47 755 27-S)

Note: Not illustrated

$

$

Not available

Kohler 47 004 02

Gasket Set w/o Seals
(Superseded to 47 755 27)

Note: Not illustrated

$

$

Not available
