R1-12K801 (312-8) - Toro Garden Tractor (1990) KOHLER CAMSHAFT, CRANKSHAFT & VALVES Parts Diagram

Garden Tractor

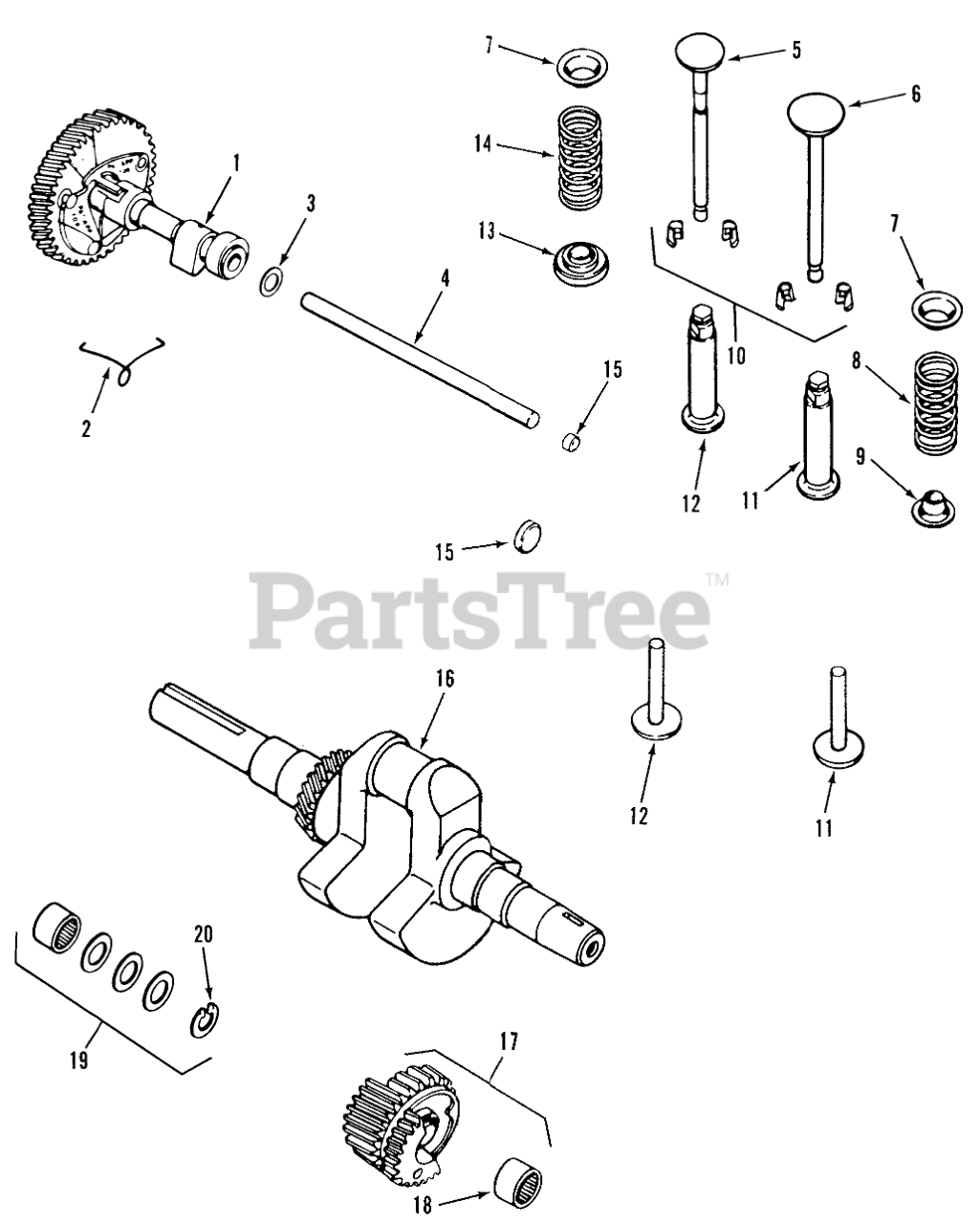

KOHLER CAMSHAFT, CRANKSHAFT & VALVES Parts Diagram

  • Title
1

Kohler 47 010 11

Camshaft Assy (Includes Item 2)
(Superseded to 47 010 11-S)

$

$

Not available

2

Kohler 47 089 01

Spring-Actuating
(Superseded to 47 089 01-S)

$

$

Not available

3

Kohler 275066

Spacer
(Superseded to 275066-S)

$8.49

$

Usually ships in 2-5 days

0

Kohler 275067

Spacer
(Superseded to 275067-S)

$8.49

$

In Stock, only 2 left!

0

4

Kohler 47 380 09

Pin-Camshaft
(Superseded to 47 380 09-S)

$

$

Not available

5

Kohler 235838

Valve-Exhaust
(Superseded to 235838-S)

$113.99

$

Usually ships in 2-5 days

0

6

Kohler 235008

Valve-Intake
(Superseded to 235008-S)

$

$

Not available

7

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 235010

Spring
(Superseded to 235010-S)

$

$

Not available

9

Kohler 230011

Retainer-Spring
(Superseded to 230011-S)

$9.49

$

In Stock, Qty 6

0

10

Kohler 4175510

Kit-Retainer

$

$

Not available

11

Kohler D-235327

Tappet
(Superseded to D-235327-S)

$

$

Not available

12

Kohler D-235327

Tappet
(Superseded to D-235327-S)

$

$

Not available

13

Kohler 52 413 01

Rotator-Valve
(Superseded to 52 413 01-S)

$35.99

$

Usually ships in 2-5 days

0

14

Kohler 235168

Spring
(Superseded to 235168-S)

$

$

Not available

15

Kohler X-702-3

Plug
(Superseded to X-702-3-S)

$3.49

$

Usually ships in 2-5 days

0

16

Kohler 47 142 16

Crankshaft Kit 3-25/32 x 1-1/8 (Includes Flywheel Hdwr.) 312
(Superseded to 47 142 16-S)

$729.99

$

Usually ships in 2-5 days

0

17

Kohler 45 043 03

Gear Assembly (Includes Item 18) 312
(Superseded to 45 043 03-S)

$201.99

$

Usually ships in 2-5 days

0

18

Kohler 47 030 01

Bearing-Needle
(Superseded to 47 030 01-S)

$26.99

$

Usually ships in 2-5 days

0

19

Kohler 47 755 01

Spacer Kit (Includes Item 20) 312
(Superseded to 47 755 01-S)

$70.99

$

Usually ships in 2-5 days

0

20

Kohler X-269-34

Retainer
(Superseded to X-269-34-S)

$3.49

$

In Stock, only 2 left!

0
