R1-12K801 (312-8) - Toro Garden Tractor (1990) KOHLER BREATHER & VENT Parts Diagram

Garden Tractor

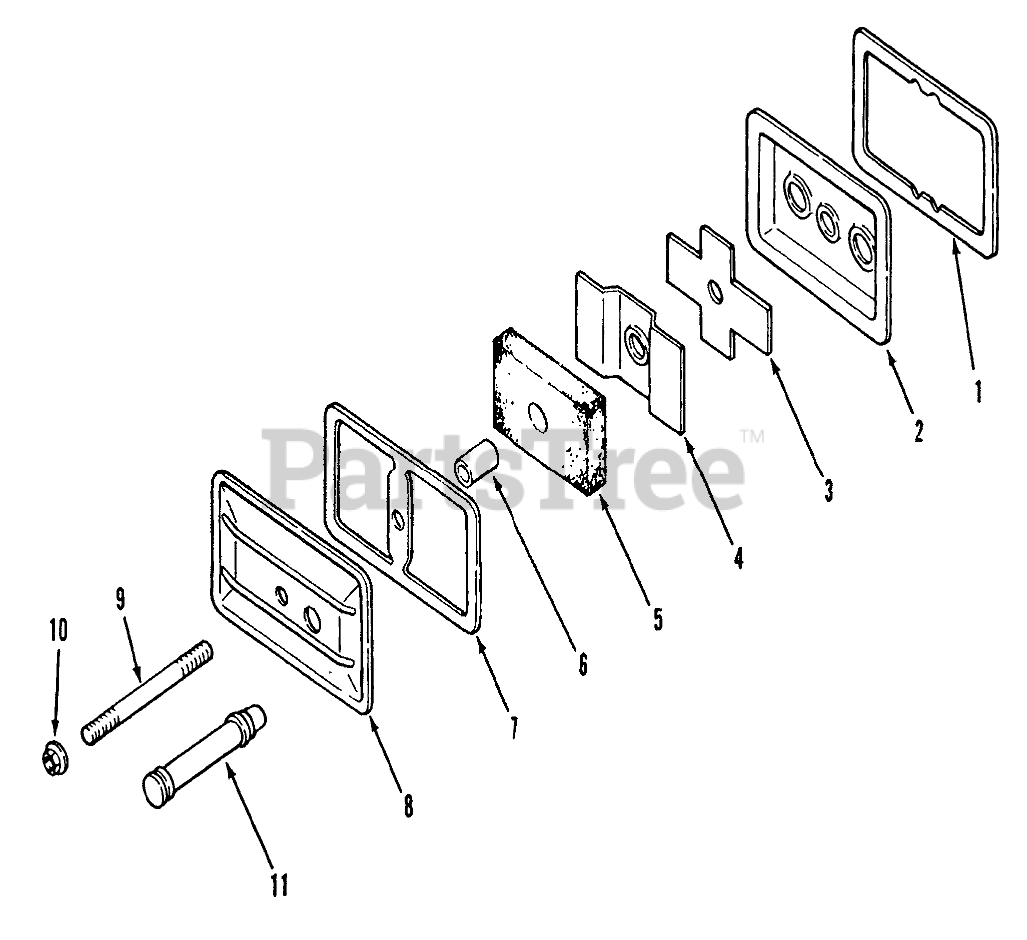

KOHLER BREATHER & VENT Parts Diagram

  • Title

1

Kohler 235048

Gasket
(Superseded to 235048-S)

$7.49

$

In Stock, Qty 8

0

2

Kohler 235631

Plate
(Superseded to 235631-S)

$39.99

$

Usually ships in 2-5 days

0

3

Kohler 235047

Reed
(Superseded to 235047-S)

$37.99

$

Usually ships in 2-5 days

0

4

Kohler 270146

Baffle
(Superseded to 270146-S)

$9.99

$

Usually ships in 2-5 days

0

5

Kohler 47 050 01

Filter-Breather
(Superseded to 47 050 01-S)

$11.99

$

Usually ships in 2-5 days

0

6

Kohler 231032

Seal
(Superseded to 231032-S)

$8.49

$

Usually ships in 2-5 days

0

7

Kohler 275144

Gasket
(Superseded to 275144-S)

$7.99

$

Usually ships in 2-5 days

0

8

Kohler 47 096 01

Cover-Breather Plate
(Superseded to 47 096 01-S)

$23.99

$

Usually ships in 2-5 days

0

9

Toro 27d5220

Valve Cover Stud 1/4-20 x 3-1/4

$

$

Currently unavailable

10

Kohler X-799-1

Palnut
(Superseded to X-799-1-S)

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 47 326 03

Hose-Breather
(Superseded to 47 326 03-S)

$

$

Not available
