R F300 CR - Electrolux/AYP Tiller MAIN FRAME Parts Diagram

Tiller

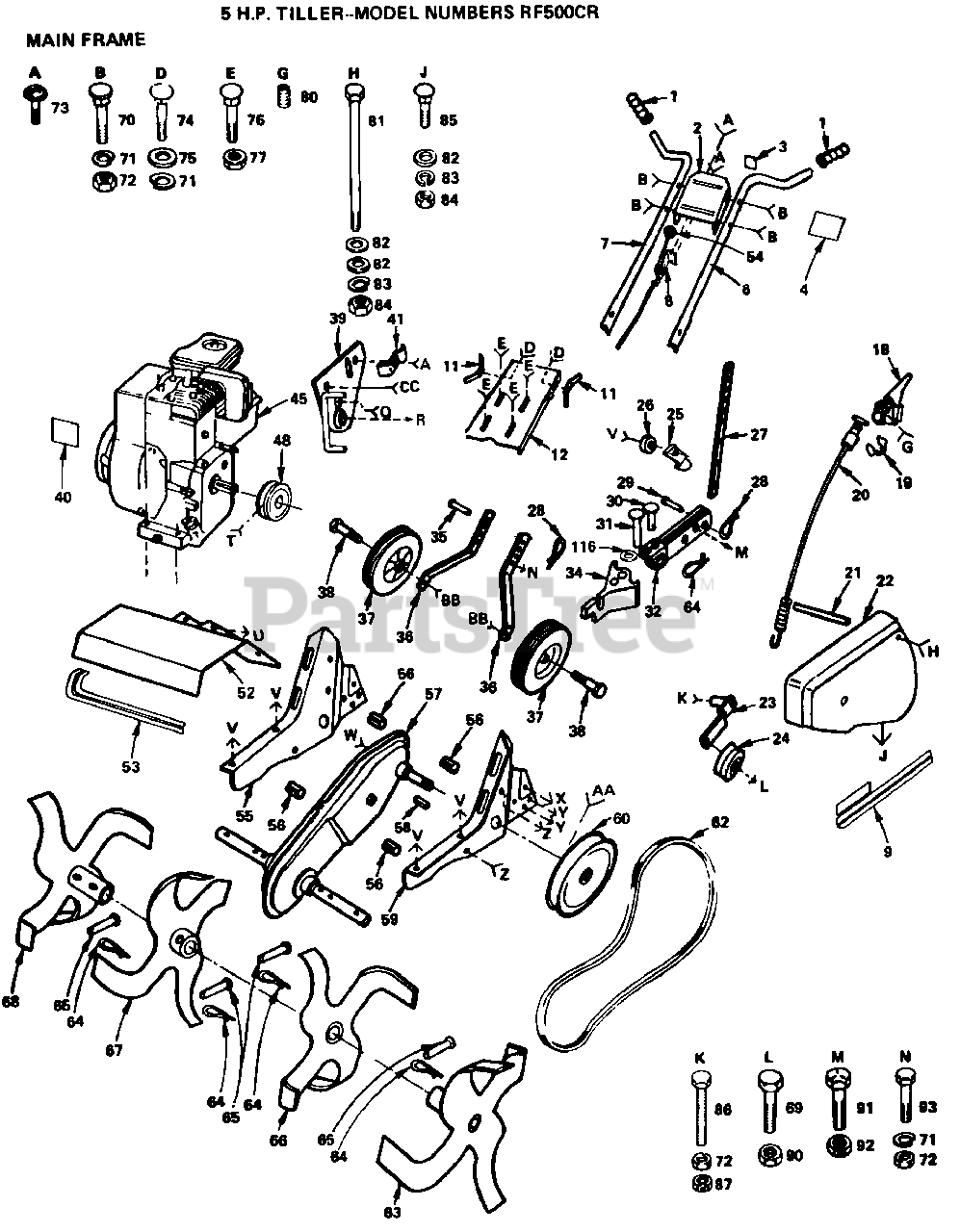

MAIN FRAME Parts Diagram

  • Title

1

Electrolux/AYP 9266R

SUB= 624A78

$

$

Not available

2

Electrolux/AYP 101229D358

BRACKET - HANDLE

$

$

Not available

3

Electrolux/AYP 102722X

NLA

$

$

Not available

3

Electrolux/AYP 104304X

DECAL - THROTTLE

$

$

Not available

4

Electrolux/AYP 104229X

NLA

$

$

Not available

6

Electrolux/AYP 2623J

SUB= 2623J500

$

$

Not available

7

Electrolux/AYP 2624J

SUB= 2624J500

$

$

Not available

8

Electrolux/AYP 2630J

THROTTLE CONT TI
(Superseded to 583730901)

$

$

Not available

9

Electrolux/AYP 104220X

DECAL - BELT GUARD

$

$

Not available

11

Electrolux/AYP 67504

SUB= 136376

$

$

Not available

12

Electrolux/AYP 101960X358

NLA

$

$

Not available

18

Electrolux/AYP 2635J

CONTROL LEVER TI

$

$

Not available

19

Electrolux/AYP 12000027

E-RING
(Superseded to 812000027)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 3066J

CABLE CLUTCH T
(Superseded to 532188532)

$

$

Not available

21

Electrolux/AYP 316J

SPLIT SPACER

$

$

Not available

22

Electrolux/AYP 2638J358

BELT GUARD

$

$

Not available

23

Electrolux/AYP 674A30

IDLER ARM TI

$

$

Not available

24

Electrolux/AYP 9178R

SUB= 75673

$

$

Not available

25

Electrolux/AYP 5388J

STAKE SPRING TI
(Superseded to 532124724)

$4.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 635J

WASHER CT

$

$

Not available

27

Electrolux/AYP 9554R

SUB= 2582J

$

$

Not available

28

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 326J

SUB= 4929H

$

$

Not available

30

Electrolux/AYP 2010J

RIVET TI

$

$

Not available

31

Electrolux/AYP 75091240

RIVET
(Superseded to 583790001)

$2.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 674A111

STAKE HOLDER TI

$

$

Not available

34

Electrolux/AYP 1953J

STAKE PIVOT TI

$

$

Not available

35

Electrolux/AYP 9194R

DRILLED RIVET RT
(Superseded to 532443676)

$13.99

$

In Stock, Qty 13

0

36

Electrolux/AYP 9190R

SUB= 9190R500

$

$

Not available

37

Electrolux/AYP 2727J

WHEEL TI
(Superseded to 532427025)

$21.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 4898H

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

39

Electrolux/AYP 106122X

NLA

$

$

Not available

40

Electrolux/AYP 102697X

DECAL - 5HP

$

$

Not available

41

Electrolux/AYP 9484R

CONDIUT CLIP T
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

45

Electrolux/AYP 130202

NLA

$

$

Not available

48

Electrolux/AYP 9177R

SUB= 130812

$

$

Not available

52

Electrolux/AYP 9057R358

SUB= 9057R505

$

$

Not available

53

Electrolux/AYP 104219X

DECAL - TINE SHIELD

$

$

Not available

54

Electrolux/AYP 2878J

KNOB TI

$

$

Not available

55

Electrolux/AYP 1949J

SUB= 1949J500
(Superseded to 532188195)

$

$

Not available

56

Electrolux/AYP 9173R

SPLIT SPACER RT
(Superseded to 583779801)

$6.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 105397X

SUB= 532126669

$

$

Not available

58

Electrolux/AYP 2649M

KEY T
(Superseded to 532002649)

$6.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 1948J

ENGINE BRKT LH TI
(Superseded to 584325101)

$31.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 9175R

TRANS SHEAVE RT

$

$

Not available

62

Electrolux/AYP 9180R

V BELT STD
(Superseded to 532009180)

$30.99

$

In Stock, only 3 left!

0

63

Electrolux/AYP 100744M

TINE WELDMENT TI
(Superseded to 584448601)

$

$

Not available

64

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

65

Electrolux/AYP 4929H

RIVET.PAN HD.1.75
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 674A42

TINE TI
(Superseded to 584448401)

$56.99

$

In Stock, only 1 left!

0

67

Electrolux/AYP 674A43

TINE TI
(Superseded to 532446056)

$56.99

$

In Stock, only 1 left!

0

68

Electrolux/AYP 100746M

TINE WELDMENT TI

$

$

Not available

69

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 72240512

BOLT TI

$

$

Not available

71

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 17561008

SCREW TI
(Superseded to 532161464)

$

$

Not available

74

Electrolux/AYP 72110510

BOLT
(Superseded to 872110510)

$7.49

$

In Stock, Qty 20+

0

75

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 72240506

BOLT

$

$

Not available

77

Electrolux/AYP 98000129

NUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

80

Electrolux/AYP 23200405

SCREW
(Superseded to 583610201)

$6.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 74760488

NLA

$

$

Not available

82

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

84

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

85

Electrolux/AYP 72240404

BOLT
(Superseded to 872240404)

$

$

Not available

86

Electrolux/AYP 74930532

SUB= 74760532

$

$

Not available

87

Electrolux/AYP 1685H

SUB= 68478
(Superseded to 532001685)

$

$

Not available

90

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

91

Electrolux/AYP 74610620

BOLT

$2.49

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 7810H

GRIPCO NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 74760516

SUB= 77394

$

$

Not available

116

Electrolux/AYP 19171616

WASHER

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 104583X

OWNER'S MANUAL

$

$

Not available
