R F300 AR - Electrolux/AYP Tiller MAIN FRAME, TINE ASSY Parts Diagram

Tiller

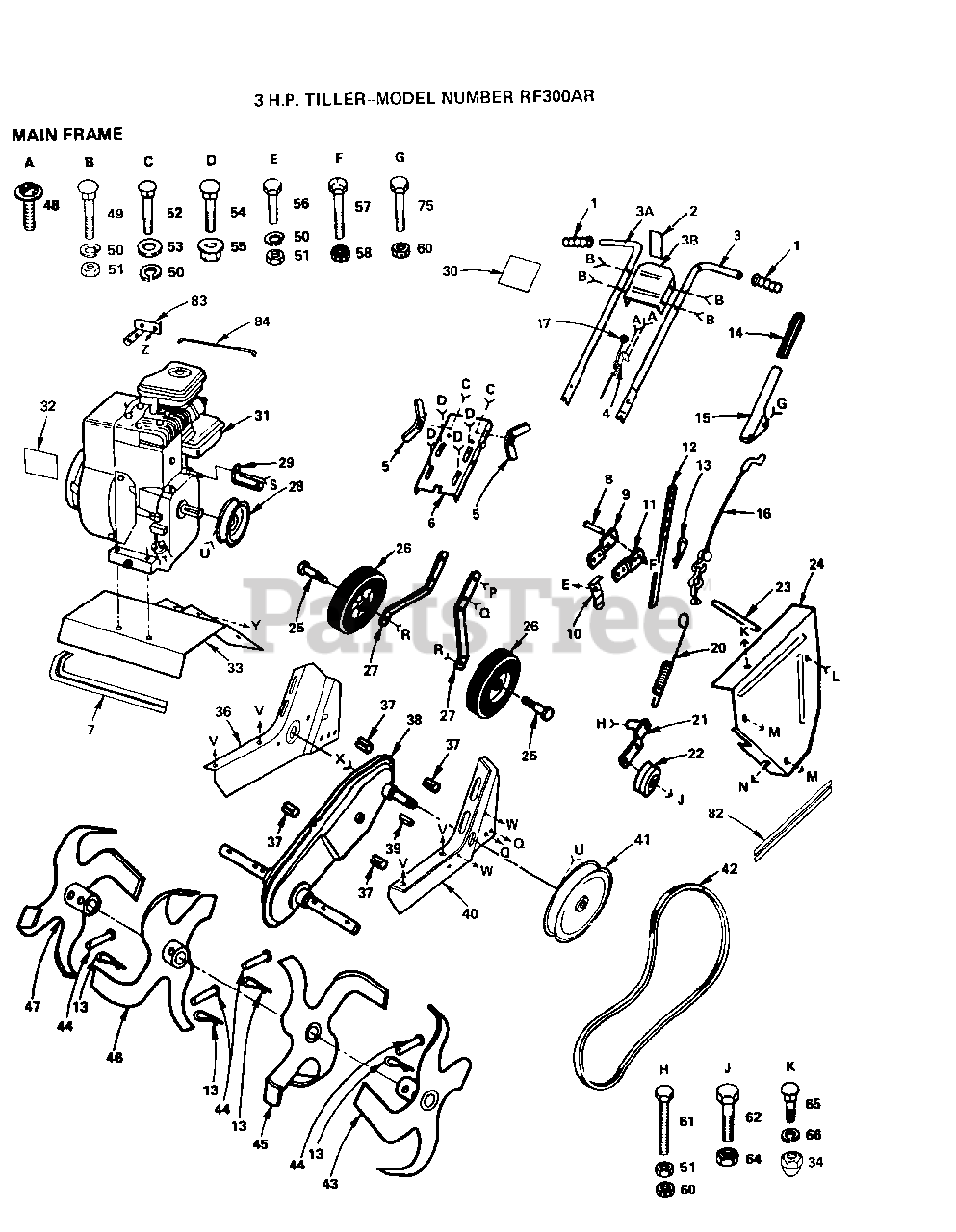

MAIN FRAME, TINE ASSY Parts Diagram

  • Title

1

Electrolux/AYP 9266R

SUB= 624A78

$

$

Not available

2

Electrolux/AYP 102722X

NLA

$

$

Not available

3

Electrolux/AYP 2621J

SUB= 154127

$

$

Not available

3A

Electrolux/AYP 2622J

SUB= 159764

$

$

Not available

3B

Electrolux/AYP 101229D358

BRACKET - HANDLE

$

$

Not available

4

Electrolux/AYP 104358X

THROTTLE CONTROL

$

$

Not available

5

Electrolux/AYP 2628J

SUB= 136376
(Superseded to 532183724)

$

$

Not available

6

Electrolux/AYP 101960X358

NLA

$

$

Not available

7

Electrolux/AYP 104217X

DECAL - TINE SHIELD

$

$

Not available

8

Electrolux/AYP 9551R

DRILLED RIVET RT

$

$

Not available

9

Electrolux/AYP 674H54

SUB= 318J

$

$

Not available

10

Electrolux/AYP 325J

STAKE SPRING CT
(Superseded to 583732201)

$

$

Not available

11

Electrolux/AYP 674H55

SUB= 317J500

$

$

Not available

12

Electrolux/AYP 674H8

SUB= 9193R500

$

$

Not available

13

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

14

Electrolux/AYP 8206H

GRIP T
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 3069J

SUB= 164937
(Superseded to 583014501)

$

$

Not available

16

Electrolux/AYP 3067J

SUB= 100382K

$

$

Not available

17

Electrolux/AYP 2878J

KNOB TI

$

$

Not available

20

Electrolux/AYP 3070J

SPRING EXT TI
(Superseded to 583731801)

$

$

Not available

21

Electrolux/AYP 674H20

SUB= 674A30

$

$

Not available

22

Electrolux/AYP 9178R

SUB= 75673

$

$

Not available

23

Electrolux/AYP 2990J

SPLIT SPACER

$

$

Not available

24

Electrolux/AYP 9053R358

BELT GUARD

$

$

Not available

25

Electrolux/AYP 4898H

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 101214K

SUB= STD333760

$

$

Not available

27

Electrolux/AYP 674H4

NLA

$

$

Not available

28

Electrolux/AYP 7417J

PULLEY

$

$

Not available

29

Electrolux/AYP 9184R

NLA

$

$

Not available

30

Electrolux/AYP 104229X

NLA

$

$

Not available

31

Electrolux/AYP 80202

ENGINE, B&S

$

$

Not available

32

Electrolux/AYP 102688X

DECAL-3HP

$

$

Not available

33

Electrolux/AYP 9055R358

SHIELD - TINE

$

$

Not available

34

Electrolux/AYP 104213X

NUT-CAP TI
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 674H45

ENGINE BRACKET

$

$

Not available

37

Electrolux/AYP 9173R

SPLIT SPACER RT
(Superseded to 583779801)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 674A142

SUB= 105391X

$

$

Not available

39

Electrolux/AYP 2649M

KEY T
(Superseded to 532002649)

$6.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 674H44

ENGINE BRACKET

$

$

Not available

41

Electrolux/AYP 9174R

TRANS SHEAVE RT

$

$

Not available

42

Electrolux/AYP 9179R

SUB= TH3H390
(Superseded to 583784801)

$30.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 674H151

SUB= 106859X

$

$

Not available

44

Electrolux/AYP 9194R

DRILLED RIVET RT
(Superseded to 532443676)

$13.99

$

In Stock, Qty 13

0

45

Electrolux/AYP 674H149

SUB= 106857X

$

$

Not available

46

Electrolux/AYP 674H150

SUB= 106858X

$

$

Not available

47

Electrolux/AYP 674H152

SUB= 106860X

$

$

Not available

48

Electrolux/AYP 17561008

SCREW TI
(Superseded to 532161464)

$

$

Not available

49

Electrolux/AYP 72240512

BOLT TI

$

$

Not available

50

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 72110510

BOLT
(Superseded to 872110510)

$7.49

$

In Stock, Qty 20+

0

53

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 72240506

BOLT

$

$

Not available

55

Electrolux/AYP 98000129

NUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

56

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 74610620

BOLT

$2.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 7810H

GRIPCO NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 1685H

SUB= 68478
(Superseded to 532001685)

$

$

Not available

61

Electrolux/AYP 74930532

SUB= 74760532

$

$

Not available

62

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

65

Electrolux/AYP 72240404

BOLT
(Superseded to 872240404)

$

$

Not available

66

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

75

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 104218X

DECAL - BELT GUARD

$

$

Not available

83

Electrolux/AYP 104233X

NLA

$

$

Not available

84

Electrolux/AYP 104234X

NLA

$

$

Not available

Electrolux/AYP 102538X

OWNER'S MANUAL

$

$

Not available
