R 970 - Husqvarna Swedish Riding Mower (1998-03) TINE ASSEMBLY Parts Diagram

Swedish Riding Mower

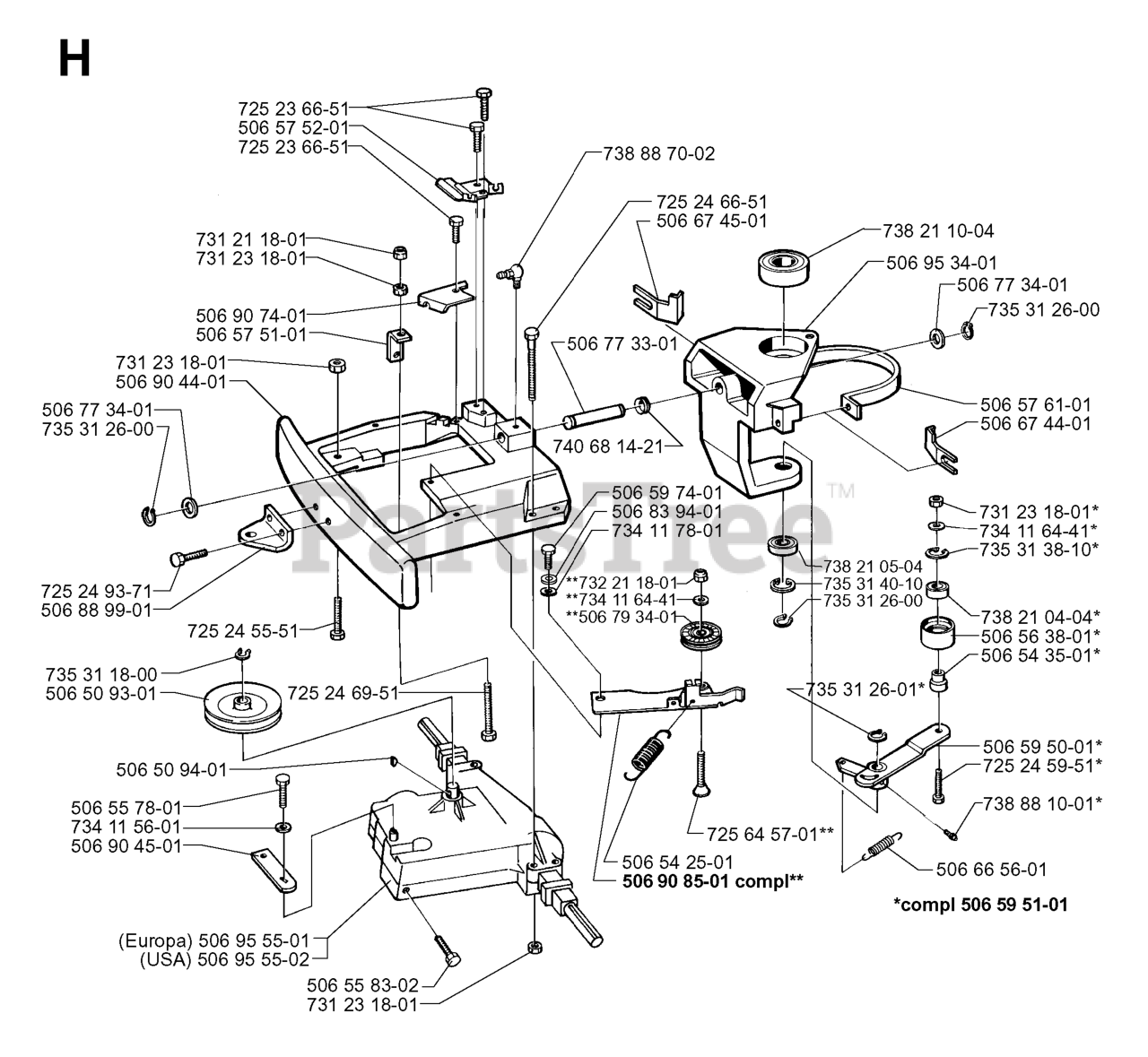

TINE ASSEMBLY Parts Diagram

  • Title
506 90 85-01

Husqvarna 506908501

BELT TENSIONER ASSY

$

$

Not available

725 24 55-51

Husqvarna 725245551

SCREW
(Superseded to 725245571)

$4.99

$

In Stock, Qty 10

0

731 23 18-01

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

725 23 66-51

$3.49

$

In Stock, only 3 left!

0

506 57 51-01

Husqvarna 506575101

Wire Bracket

$

$

Not available

735 31 26-00

Husqvarna 735312600

RETAINING RING SGA 25

$3.49

$

In Stock, only 2 left!

0

506 77 34-01

$4.99

$

In Stock, only 2 left!

0

738 21 04-04

Husqvarna 738210404

BALL BEARING 6004-2RS1

$103.99

$

In Stock, Qty 20+

0

735 31 40-10

Husqvarna 735314010

CIRCLIP SGH 47

$7.49

$

Usually ships in 3-10 days

0

734 11 64-41

$4.99

$

Usually ships in 3-10 days

0

506 55 83-02

$4.99

$

In Stock, only 1 left!

0

725 64 57-01

$

$

Not available

506 90 44-01

$

$

Not available

506 56 38-01

$

$

Not available

725 24 69-51

$3.99

$

Usually ships in 3-10 days

0

731 21 18-01

Husqvarna 731211801

NUT
(Superseded to 732211801)

$4.99

$

In Stock, Qty 12

0

506 57 52-01

$

$

Not available

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

506 57 61-01

Husqvarna 506576101

GUIDE PLATE
(Superseded to 506576103)

$

$

Not available

735 31 18-00

Husqvarna 735311800

Retaining Ring Sga 16

$

$

Not available

725 24 66-51

$

$

Not available

506 66 56-01

$28.99

$

Usually ships in 3-10 days

0

506 67 44-01

Husqvarna 506674401

Belt Guide Cpl., Right

$

$

Not available

506 95 55-02

Husqvarna 506955502

Transmission

Note: USA

$

$

Not available

506 59 50-01

$

$

Not available

725 24 93-71

Husqvarna 725249371

Screw M10x25

$1.99

$

Usually ships in 3-10 days

0

506 50 94-01

$

$

Not available

738 21 05-04

Husqvarna 738210504

Ball Bearing 6005-2rs

$33.99

$

Usually ships in 3-10 days

0

506 67 45-01

Husqvarna 506674501

Belt Guide Cpl.,Left

$

$

Not available

506 90 74-01

$

$

Not available

738 21 10-04

Husqvarna 738211004

BALL BEARING 6010 2RS1

$45.99

$

Usually ships in 3-10 days

0

735 31 26-01

Husqvarna 735312601

REPL BY 735 31 26-00
(Superseded to 735312600)

$3.49

$

In Stock, only 2 left!

0

738 88 10-01

Husqvarna 738881001

GREASE NIPPLE

$7.99

$

Usually ships in 3-10 days

0

738 88 70-02

$

$

Not available

506 50 93-01

$

$

Not available

506 79 34-01

$

$

Not available

506 59 74-01

$6.99

$

In Stock, only 1 left!

0

506 54 35-01

$

$

Not available

506 83 94-01

Husqvarna 506839401

SPRINGWASHER

$4.99

$

Usually ships in 3-10 days

0

506 55 78-01

$

$

Not available

506 95 55-01

Husqvarna 506955501

GEAR BOX

Note: EUROPA

$

$

Not available

506 59 51-01

Husqvarna 506595101

BELT TENSIONER ASSY
(Superseded to 535484401)

$62.99

$

In Stock, only 1 left!

0

734 11 56-01

Husqvarna 734115601

WASHER
(Superseded to 734492601)

$

$

Not available

506 90 45-01

$

$

Not available

725 24 59-51

$5.99

$

In Stock, only 4 left!

0

740 68 14-21

$4.99

$

In Stock, only 1 left!

0

506 54 25-01

$

$

Not available

735 31 38-10

Husqvarna 735313810

RETAINING RING

$5.99

$

In Stock, only 2 left!

0

506 95 34-01

$

$

Not available

506 88 99-01

$20.99

$

Usually ships in 3-10 days

0

734 11 78-01

Husqvarna 734117801

WASHER - M12
(Superseded to 532052160)

$

$

Not available

506 77 33-01

$

$

Not available
