R 970 - Husqvarna Swedish Riding Mower (1997-03) COVER Parts Diagram

Swedish Riding Mower

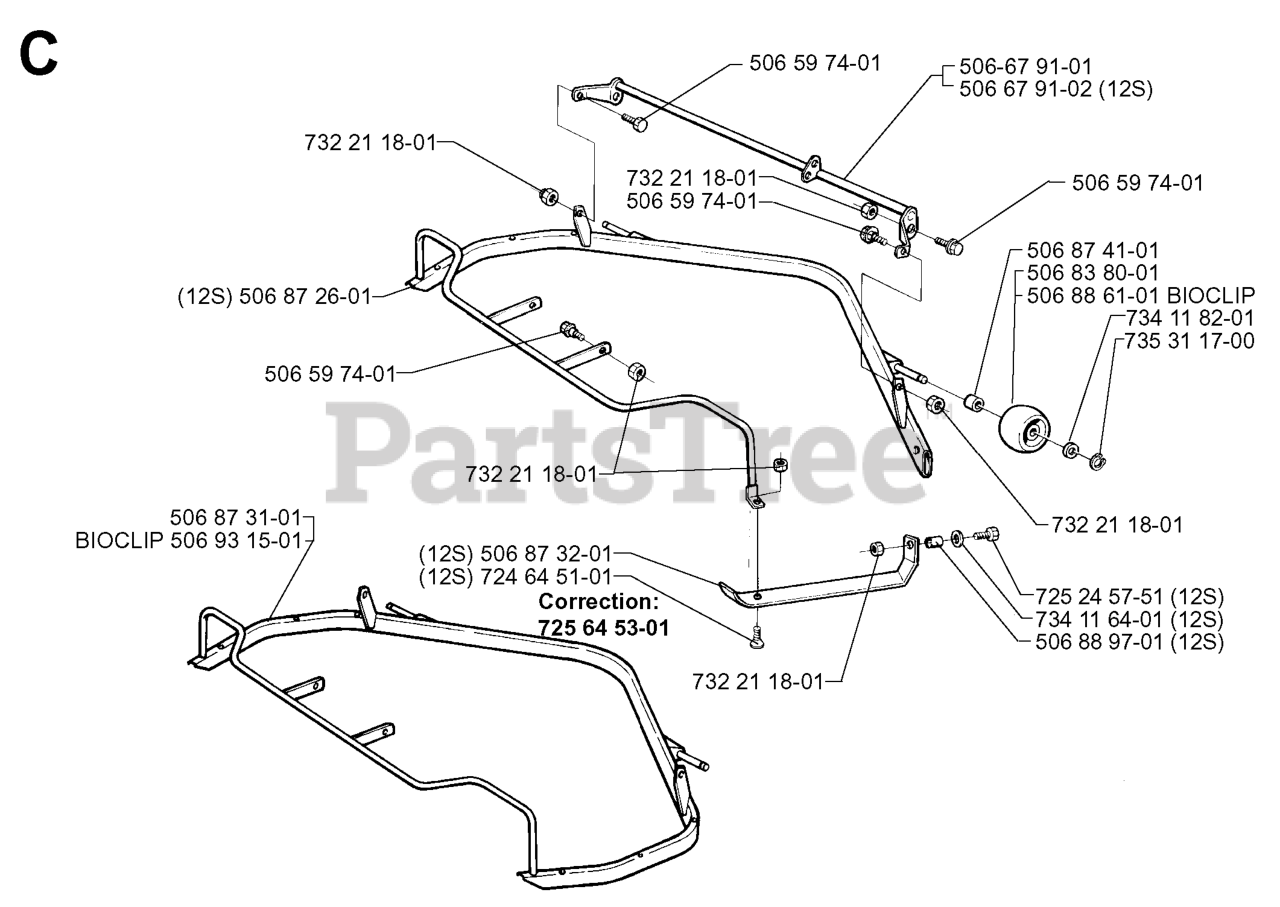

COVER Parts Diagram

  • Title

735 31 17-00

Husqvarna 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 7

0

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

506 87 26-01

Husqvarna 506872601

FRAME CPL
(Superseded to 506966802)

Note: 12S

$

$

Not available

506 83 80-01

Husqvarna 506838001

ROLLER

$

$

Not available

506 88 61-01

Husqvarna 506886101

ROLLER
(Superseded to 506963001)

Note: BIOCLIP

$62.99

$

In Stock, Qty 14

0

506 67 91-01

Husqvarna 506679101

LIFT LEVER ASSY

$

$

Not available

725 24 57-51

Husqvarna 725245751

SCREW

Note: 12S

$5.99

$

In Stock, only 1 left!

0

506 88 97-01

Husqvarna 506889701

SPACER

Note: 12S

$

$

Not available

506 87 41-01

Husqvarna 506874101

SPACER

$

$

Not available

725 64 53-01

Husqvarna 725645301

SCREW

Note: CORRECTION:

$4.99

$

Usually ships in 3-10 days

0

506 59 74-01

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

506 87 31-01

Husqvarna 506873101

FRAME
(Superseded to 506966801)

$

$

Not available

734 11 64-01

Husqvarna 734116401

WASHER BRB 8.4X17

Note: 12S

$6.99

$

In Stock, only 4 left!

0

506 67 91-02

Husqvarna 506679102

Lever Lift Assy

Note: 12S

$

$

Not available

506 87 32-01

Husqvarna 506873201

Rail

Note: 12S

$

$

Not available

506 93 15-01

Husqvarna 506931501

Frame

Note: BIOCLIP

$

$

Not available

734 11 82-01

Husqvarna 734118201

WASHER

$5.99

$

In Stock, Qty 13

0
