R 970 12S - Husqvarna Swedish Riding Mower (1992-03) Engine Cover Assembly Parts Diagram

Swedish Riding Mower

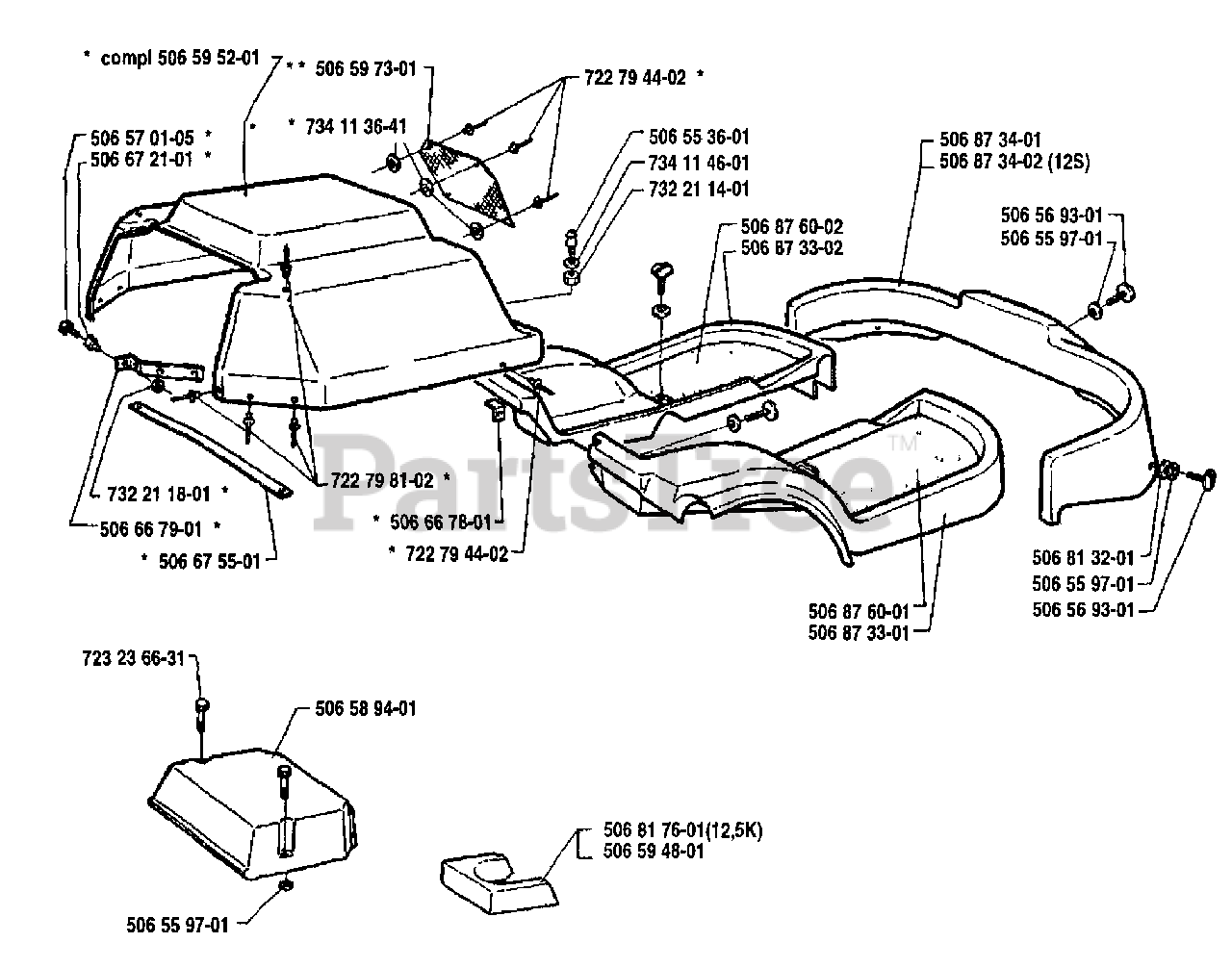

Engine Cover Assembly Parts Diagram

  • Title
506595201

Husqvarna 506595201

ENGINE COVER, CPL.

$

$

Not available

506597301

$

$

Not available

506570105

Husqvarna 506570105

BOLT
(Superseded to 506597401)

$6.99

$

In Stock, only 1 left!

0

506672101

$

$

Not available

734113641

$

$

Not available

722794402

$0.99

$

Usually ships in 3-10 days

0

506553601

$

$

Not available

734114601

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

732211401

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

506876002

Husqvarna 506876002

FOOT PAD L.H.

$

$

Not available

506873302

Husqvarna 506873302

FOOTWELL COVER LH

$

$

Not available

$

$

Currently unavailable

506873402

Husqvarna 506873402

COVER,FRONT

$

$

Not available

506569301

Husqvarna 506569301

SCREW
(Superseded to 506982601)

$6.99

$

In Stock, Qty 6

0

506559701

$5.99

$

In Stock, only 4 left!

0

$

$

Currently unavailable

506559701

$5.99

$

In Stock, only 4 left!

0

506569301

Husqvarna 506569301

SCREW
(Superseded to 506982601)

$6.99

$

In Stock, Qty 6

0

506876001

Husqvarna 506876001

FOOT PAD, R.H

$

$

Not available

506873301

Husqvarna 506873301

FOOTWELL COVER RH

$

$

Not available

722798102

$

$

Not available

506667801

$

$

Not available

722794402

$0.99

$

Usually ships in 3-10 days

0

732211801

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

506667901

$

$

Not available

506675501

$

$

Not available

723236631

$

$

Not available

506589401

$

$

Not available

$

$

Currently unavailable

506594801

Husqvarna 506594801

AIR CONDUCTOR

$

$

Not available
