R 970 12 - Husqvarna Swedish Riding Mower (1993-05) Pedal Assembly Parts Diagram

Swedish Riding Mower

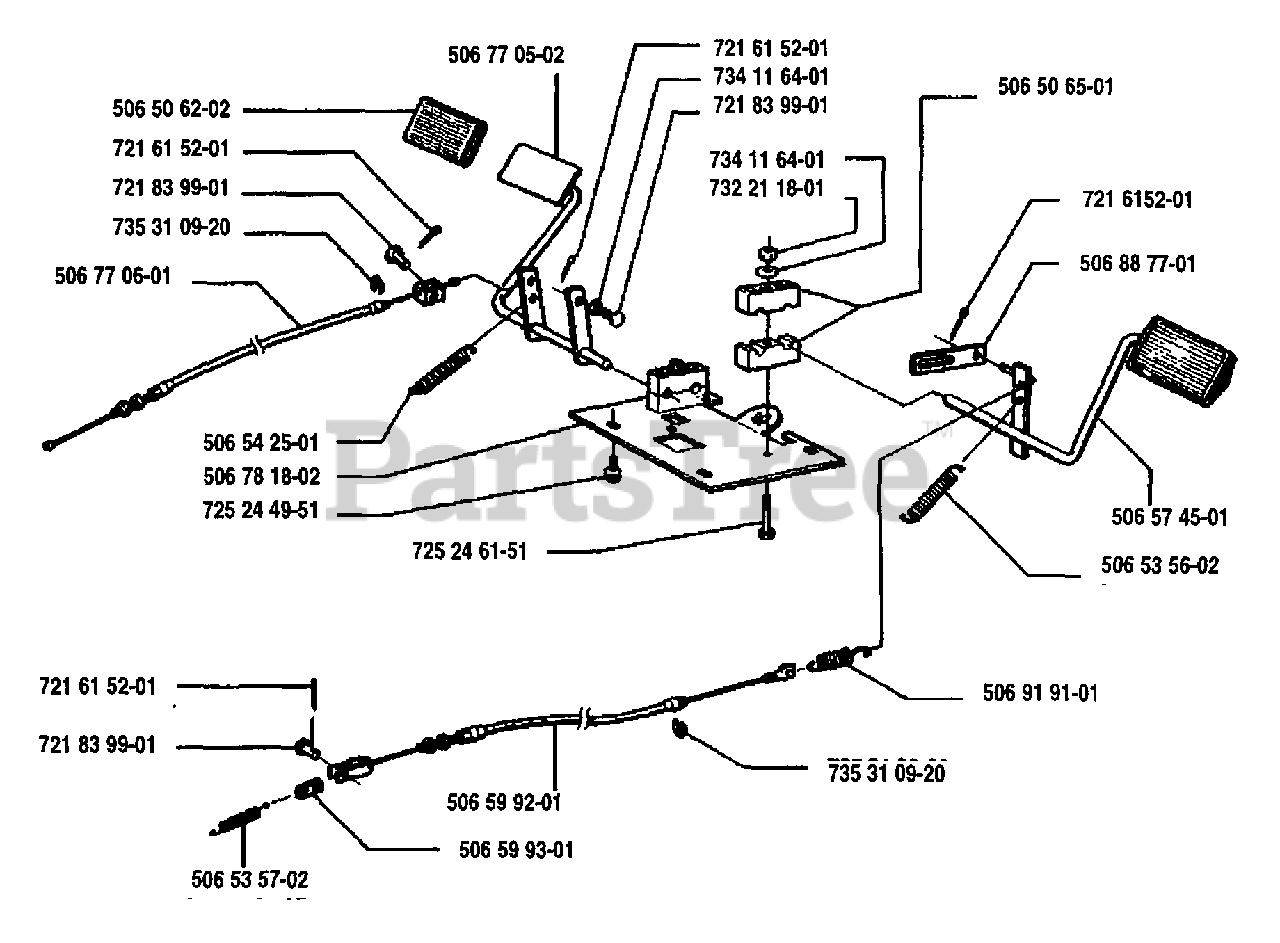

Pedal Assembly Parts Diagram

  • Title
506770502

$

$

Not available

506506202

Husqvarna 506506202

PEDAL RUBBER,SF
(Superseded to 586966402)

$17.99

$

In Stock, only 3 left!

0

721615201

Husqvarna 721615201

COTTER PIN

$1.49

$

Usually ships in 3-10 days

0

721839901

Husqvarna 721839901

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

506770601

Husqvarna 506770601

WIRE
(Superseded to 506952501)

$60.99

$

Usually ships in 3-10 days

0

506542501

$

$

Not available

506781802

Husqvarna 506781802

PEDAL PLATE

$

$

Not available

725244951

Husqvarna 725244951

BOLT - M8X16

$3.49

$

In Stock, only 2 left!

0

725246151

$5.99

$

In Stock, only 1 left!

0

721615201

Husqvarna 721615201

COTTER PIN

$1.49

$

Usually ships in 3-10 days

0

734116401

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

721839901

Husqvarna 721839901

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

734116401

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

731211801

Husqvarna 731211801

NUT
(Superseded to 732211801)

$4.99

$

In Stock, Qty 12

0

506506501

Husqvarna 506506501

PEDAL SHAFT CLAMP

$7.99

$

Usually ships in 3-10 days

0

721615201

Husqvarna 721615201

COTTER PIN

$1.49

$

Usually ships in 3-10 days

0

506887701

$

$

Not available

506574501

Husqvarna 506574501

BRAKE PEDAL ASSY

$

$

Not available

506535602

$

$

Not available

506919101

$5.76

$

Usually ships in 3-10 days

0

721615201

Husqvarna 721615201

COTTER PIN

$1.49

$

Usually ships in 3-10 days

0

721839901

Husqvarna 721839901

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

506535702

$

$

Not available

506599301

$

$

Not available

506599201

Husqvarna 506599201

BRAKE WIRE CPL
(Superseded to 506952601)

$

$

Not available

$

$

Currently unavailable
