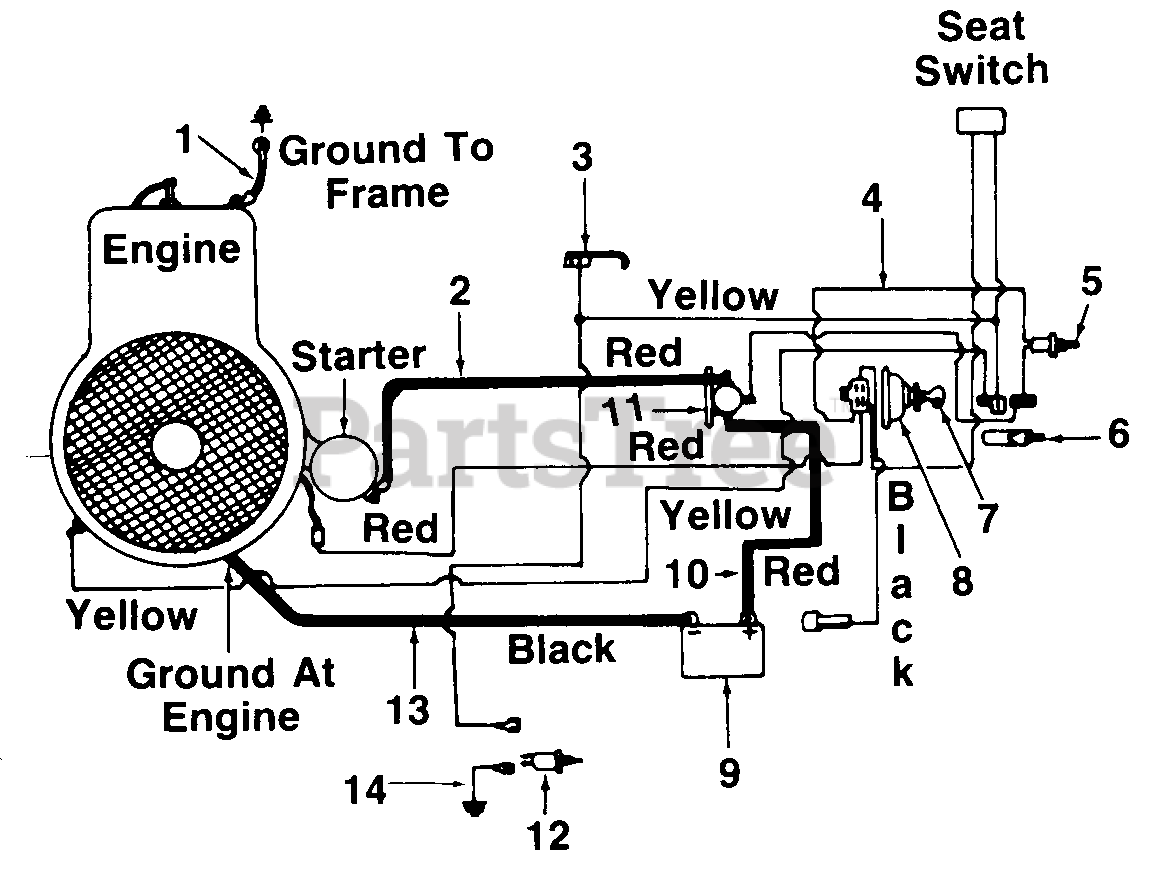

R-86 (138-514-190) - White Outdoor 30" Rear-Engine Riding Mower (1989) Electrical System Parts Diagram

30" Rear-Engine Riding Mower

Electrical System Parts Diagram

  • Title
1

White Outdoor 725-0977

Elec. Wire 8 Ga. x 9.0" Lg.

$

$

Not available

2

$

$

Not available

3

White Outdoor 732-0420

Spring Switch-Reverse

$

$

Not available

4

725-1143

Wire Harness

$

$

Not available

5

White Outdoor 725-0268

Safety Switch-Black N.O.
(Superseded to 925-0268)

$39.99

$

Usually ships in 3-6 days

0

6

White Outdoor 725-0819A

Safety Switch
(Superseded to 925-0819A)

$30.99

$

Usually ships in 3-6 days

0

7

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

8

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

9

White Outdoor 725-0514A

Battery 12V
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

10

White Outdoor 725-0927

Elec. Wire Red w/Boot

$

$

Not available

11

White Outdoor 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

12

White Outdoor 725-0269

Safety Switch Red N.C.
(Superseded to 925-0269)

$

$

Not available

13

White Outdoor 725-0975

Elec. Wire 8 Ga. x 9.0" Lg.

$

$

Not available

14

$

$

Not available
