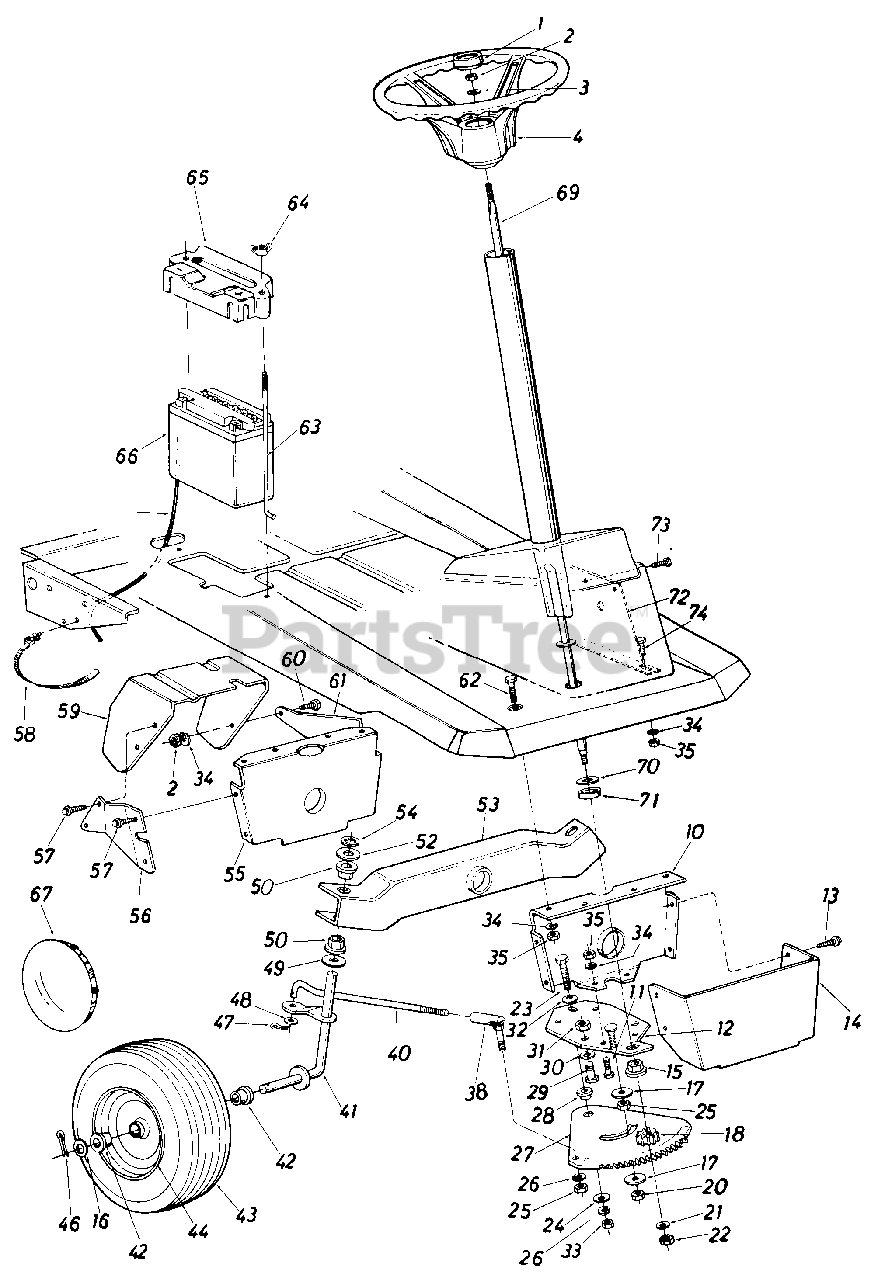

R-86 (137-514-190) - White Outdoor 30" Rear-Engine Riding Mower (1987) Steering Assembly Parts Diagram

30" Rear-Engine Riding Mower

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

2

White Outdoor 712-0237

Hex Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

3

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 731-0805

Steering Wheel Ass'y.
(Superseded to 931-0806A)

$

$

Not available

10

White Outdoor 15613

Pivot Bar Bracket

$

$

Not available

11

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 17130

Steering Gear Support Brkt.

$

$

Not available

13

White Outdoor 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 15608

Steering Gear Cover

Variations

White Outdoor 15608-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 15608-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 15608-0637

No Longer Available COVER-STEER GEAR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 15608-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 15608-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 15608-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

$

$

15

White Outdoor 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

16

White Outdoor 736-0285

Fl-Wash. .640" I.D. x 1.62" O.D.

$4.49

$

In Stock, Qty 9

0

17

White Outdoor 736-0320

Fl-Washer 3/8" I.D. x 1.37" O.D.

$6.99

$

In Stock, Qty 7

0

18

White Outdoor 748-0290

Steering Pinion Gear
(Superseded to 948-0290)

$

$

Not available

White Outdoor 736-0320

Fl-Wash. .385" I.D. x 1.38"

$6.99

$

In Stock, Qty 7

0

20

White Outdoor 712-0116

Hex L-Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

21

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

22

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

23

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" Lg. (Grade 5)

$4.99

$

In Stock, Qty 8

0

24

White Outdoor 736-0320

Fl-Wash. .385" I.D. x 1.38"

$6.99

$

In Stock, Qty 7

0

25

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

26

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 717-0472

Steering Gear Segment
(Superseded to 917-0472A)

$

$

Not available

28

White Outdoor 738-0541

Shoulder Spacer .622" Dia. x .218
(Superseded to 938-0541)

$

$

Not available

29

White Outdoor 710-0689

Hex Bolt (Nylon) 1/2-13 x .75"

$6.99

$

Usually ships in 3-6 days

0

30

White Outdoor 736-0160

Fl-Wash. .530" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

31

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 736-0105

Bell-Wash. .385" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

34

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

38

White Outdoor 723-0156

Ball Joint Ass'y. 3/8-24 Thd.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

40

White Outdoor 747-0417

Steering Tie Rod

$

$

Not available

41

White Outdoor 15616

Front Axle Ass'y.-R.H.
(Superseded to 983-0012)

$141.99

$

Usually ships in 3-6 days

0

White Outdoor 15617

Front Axle Ass'y.-L.H.
(Superseded to 983-0011)

Note: (Not Shown)

$

$

Not available

42

White Outdoor 741-0487

Flange Bearing .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

43

Front Wheel Ass'y. Comp.

$

$

Not available

White Outdoor 734-1454

Wheel Ass'y. Comp. (11 x 4.0)
(Superseded to 634-0147)

$

$

Not available

44

Front Wheel Rim Only

$

$

Not available

White Outdoor 734-1455

Rim Only (11 x 4.0)

$

$

Not available

46

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.00"*

$3.99

$

Usually ships in 3-6 days

0

48

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 736-0156

Fl-Wash. .635" I.D. x 1.12"

$4.49

$

In Stock, Qty 12

0

50

White Outdoor 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

52

White Outdoor 736-0156

Fl-Wash. .635" I.D. x 1.12

$4.49

$

In Stock, Qty 12

0

53

White Outdoor 15610

Pivot Bar Ass'y.
(Superseded to 15610C-0637)

$224.99

$

Usually ships in 3-6 days

0

54

White Outdoor 726-0159

Speed Nut 5/8" I.D.
(Superseded to 926-0159B)

$

$

Not available

55

White Outdoor 15613

Pivot Bar Bracket

$

$

Not available

56

White Outdoor 15694

Bracket Reinforcement- 0 R. H.

$

$

Not available

57

White Outdoor 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 726-0154

Cable Tie
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

59

White Outdoor 15562

Clutch-Brake Pedal Ass'y.

$

$

Not available

60

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 15699

Bracket Reinforcement-L.H.

$

$

Not available

62

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

64

White Outdoor 712-0113

Wing Nut Solid 1/4-20 Thd.
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

65

White Outdoor 731-0708

Battery Hold Down Cover

$

$

Not available

66

White Outdoor 725-0514

12V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

67

White Outdoor 734-1219

Chrome Hub Cap

$

$

Not available

69

White Outdoor 16513

Steering Shaft Ass'y.

$

$

Not available

70

White Outdoor 736-0187

Fl-Wash. .62" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 750-0532

Spacer (Plastic)
(Superseded to 950-0532)

$

$

Not available

72

White Outdoor 16069

Reinf. Brkt. Ass'y.

Variations

White Outdoor 16069-0637

No Longer Available BRACKET-REINF - POWDER BLACK (0637)

$

$

Not available

$

$

73

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18

$4.99

$

In Stock, only 2 left!

0

74

White Outdoor 710-0116

Hex Bolt 5/16-18 x 2.00" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0
