R-86 (137-514-190) - White Outdoor 30" Rear-Engine Riding Mower (1987) Single Speed Transaxle Left Hand Parts Diagram

30" Rear-Engine Riding Mower

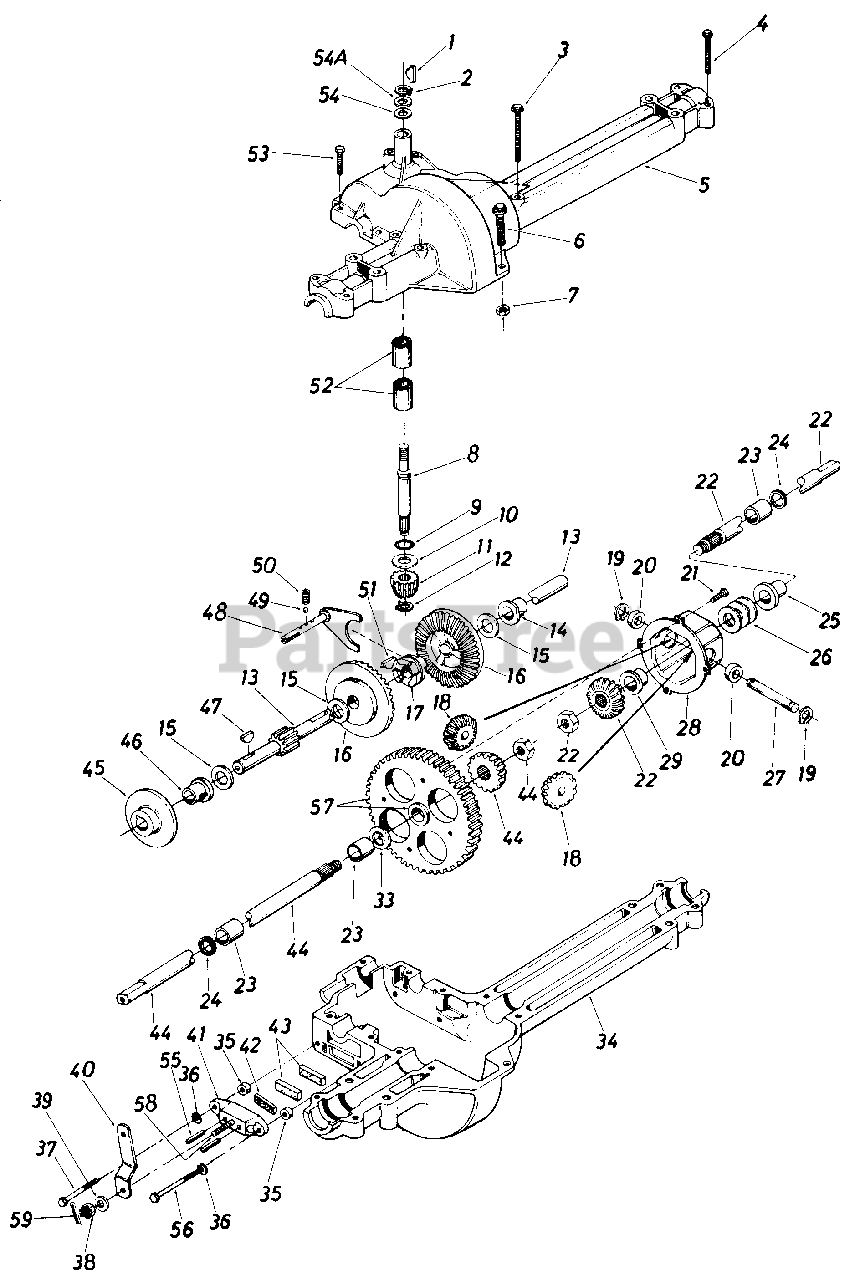

Single Speed Transaxle Left Hand Parts Diagram

  • Title

1

White Outdoor 714-0129

#4 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

2

White Outdoor 716-0115

Snap Ring .625" Shaft
(Superseded to 916-0115)

$

$

Not available

3

White Outdoor 710-0854

Hex Bolt 1/4-20 x 1.75" Lg.
(Superseded to 710-1026)

$6.99

$

In Stock, Qty 13

0

4

White Outdoor 710-0378

Hex Bolt 5/16-18 x 2.5"

$4.99

$

In Stock, only 4 left!

0

5

White Outdoor 717-0764

Upper Housing
(Superseded to 717-0540)

$

$

Not available

6

White Outdoor 710-0889

Hex Fl-Bolt 1/4-20 x .88" Lg.

$

$

Not available

7

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

8

White Outdoor 717-0634

Input Shaft
(Superseded to 717-0634A)

$119.99

$

Usually ships in 3-6 days

0

9

White Outdoor 721-0178

Square Seal 5/8" I.D.
(Superseded to 921-0178)

$

$

Not available

10

White Outdoor 736-0335

Thrust Washer 5/8" I.D. x 1.25" O.D.

$6.99

$

In Stock, Qty 8

0

11

White Outdoor 717-0633

Pinion Input 14T
(Superseded to 917-0633)

$22.99

$

In Stock, only 1 left!

0

12

White Outdoor 716-0108

Retaining Ring 7/16" Ext.

$5.49

$

Usually ships in 3-6 days

0

13

White Outdoor 717-0768

Drive Shaft

$

$

Not available

14

White Outdoor 741-0336

Flange Brg. 5/8" I.D. x 3/4" Lg.
(Superseded to 941-0336)

$11.99

$

In Stock, only 2 left!

0

15

Fl-Wash.

$

$

Not available

White Outdoor 736-0349

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .020" Thk.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .030" Thk.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

White Outdoor 736-0337

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .040" Thk.

$4.49

$

In Stock, Qty 9

0

16

White Outdoor 717-0757

Bevel Gear 42T

$

$

Not available

17

White Outdoor 717-0667

Clutch Collar
(Superseded to 917-0667)

$

$

Not available

18

White Outdoor 717-1020

Miter Gear 15T (H.D.)

$

$

Not available

19

White Outdoor 716-0142

Snap Ring
(Superseded to 753-0527)

$

$

Not available

20

White Outdoor 717-0690

Thrust Bearing 1/2" l.D. x 1.0" O.D.
(Superseded to 753-0527)

$

$

Not available

21

White Outdoor 710-0862

Pan Head Scr. 1/4-20 x .50" Lg. w/Patch
(Superseded to 710-0862A)

$4.99

$

Usually ships in 3-6 days

0

22

White Outdoor 717-0766

Axle R.H. Ass'y.-Kit
(Superseded to 917-0766)

$

$

Not available

23

White Outdoor 741-0340

Sleeve Bearing 3/4" I.D. x 1.0" Lg.
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 11

0

24

White Outdoor 721-0179

Oil Seal 3/4" I.D.

$8.99

$

In Stock, Qty 20+

0

25

White Outdoor 741-0339

Flange Bearing 3/4" I.D. x 15/16" Lg.
(Superseded to 941-0339)

$12.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0188

Fl-Wash. .760" I.D. x 1.49 0 O.D.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 717-0673

Cross Shaft
(Superseded to 753-0527)

$

$

Not available

28

White Outdoor 717-0777

Differential Housing Ass'y.
(Superseded to 753-0546)

$62.99

$

Usually ships in 3-6 days

0

29

Part of Ref. 28

$

$

Not available

33

White Outdoor 736-0188

Fl-Wash. .760" I.D. x 1.49" O.D.

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 717-0761

Lower Housing
(Superseded to 753-0714)

$

$

Not available

35

White Outdoor 750-0555

Spacer .53" O.D. x 3/8" Lg.

$

$

Not available

36

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

37

White Outdoor 710-0886

Hex Bolt 1/4-20 x 1.50" Lg. (Grade 5)
(Superseded to 910-0886)

$

$

Not available

38

White Outdoor 712-0335

Castle Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

39

White Outdoor 736-0159

Fl-Wash. .344" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 717-0772

Actuating Arm
(Superseded to 717-0772B)

$12.99

$

Usually ships in 3-6 days

0

41

White Outdoor 717-0679

Brake Yoke

$

$

Not available

42

White Outdoor 717-0682

Puck Plate
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

43

White Outdoor 717-0678

Brake Puck
(Superseded to 917-0678)

$7.49

$

In Stock, only 3 left!

0

44

White Outdoor 717-0765

Axle L.H. Ass'y.-Kit
(Superseded to 917-0765)

$

$

Not available

45

White Outdoor 717-0677

Brake Disc

$

$

Not available

46

White Outdoor 741-0337

Flange Bearing 5/8" I.D. x 15/16" Lg.
(Superseded to 941-0337)

$10.99

$

In Stock, Qty 6

0

47

White Outdoor 714-0161

Woodruff Key 3/16 x 5/8 HT
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 717-0754

Shift Fork Ass'y.
(Superseded to 917-0754)

$112.99

$

In Stock, only 1 left!

0

49

White Outdoor 741-0862

Ball Detent .250" Dia.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 732-0863

Spring Detent
(Superseded to 932-0863)

$4.49

$

In Stock, only 2 left!

0

51

White Outdoor 714-0169

#9 Hi-Pro Key 3/16" x 3/4n Dia. HT
(Superseded to 914-0169)

$10.99

$

In Stock, Qty 7

0

52

White Outdoor 741-0335

Needle Brg. 5/8" I.D. x 1/2" Lg.
(Superseded to 941-0335)

$18.99

$

In Stock, only 3 left!

0

53

White Outdoor 710-0855

Hex Bolt 1/4-20 x 1.00" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

54

White Outdoor 736-0336

Fl-Wash. 5/8" l.D. x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

54A

White Outdoor 736-0337

Fl-Wash . 5/8" I . D . x .040

$4.49

$

In Stock, Qty 9

0

55

White Outdoor 741-0343

Actuating Pin 5/16" Dia.

$10.99

$

In Stock, Qty 7

0

56

White Outdoor 710-0966

Hex Bolt 1/4-20 x 2.50" Lg. (Grade 5)

$

$

Not available

57

White Outdoor 717-0767

Differential Gear 72T Ass'y. w/Bearing
(Superseded to 917-0767)

$

$

Not available

58

White Outdoor 717-0681

Sq. Hd. Bolt 5/16-24 Thd.
(Superseded to 717-0796)

$

$

Not available

59

White Outdoor 1544-013

Cotter Pin 3/32" Dia. x .50" Lg.
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

White Outdoor 737-0148

Grease-Shell
(Superseded to 737-0300A)

Note: (10 oz.)

$34.99

$

In Stock, Qty 20+

0
