R-86 (137-514-190) - White Outdoor 30" Rear-Engine Riding Mower (1987) Deck Mounting Assembly Parts Diagram

30" Rear-Engine Riding Mower

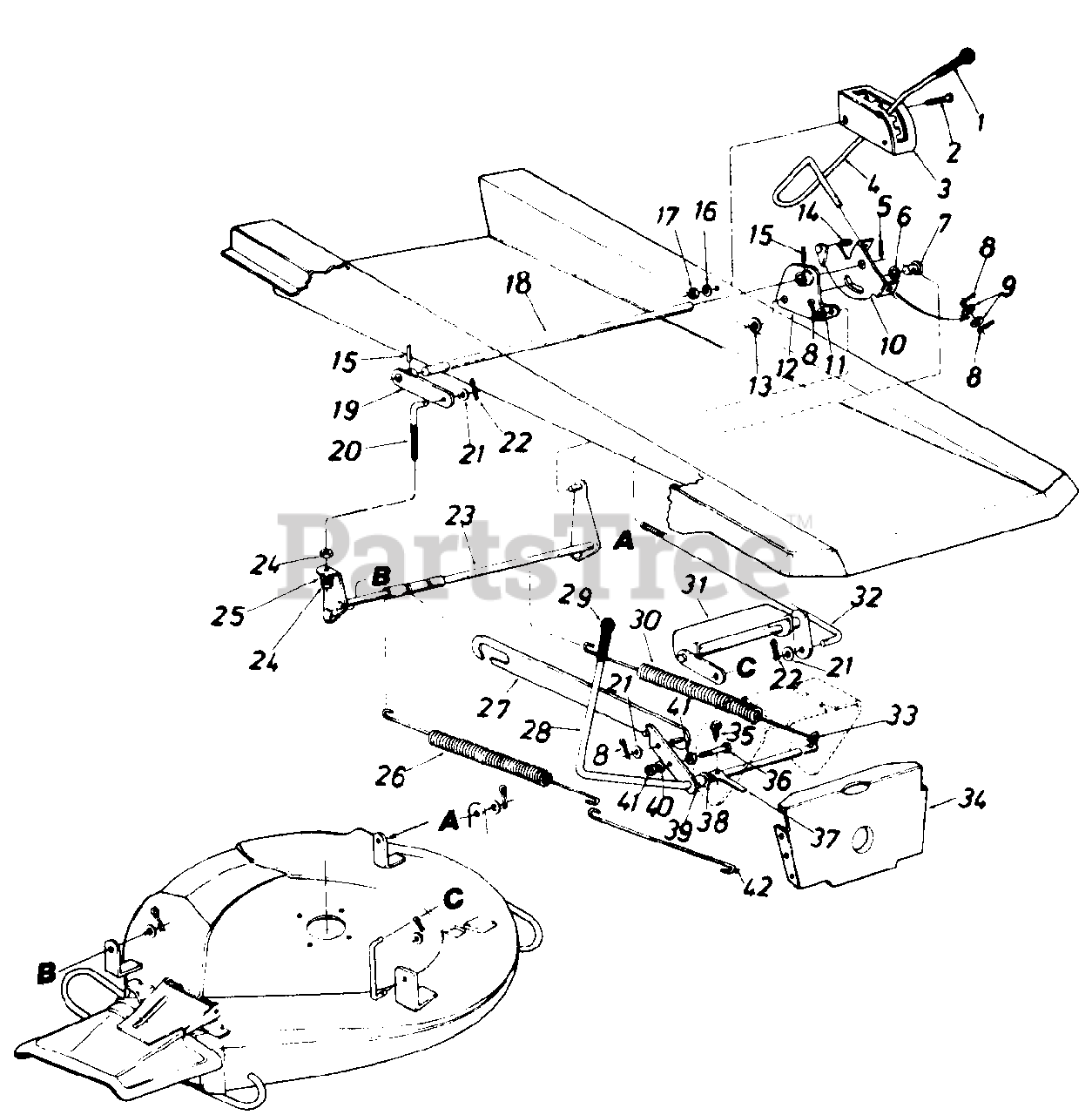

Deck Mounting Assembly Parts Diagram

  • Title

1

White Outdoor 720-0143

Grip

$

$

Not available

2

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

3

White Outdoor 16397

Deck Index Bracket

Variations

White Outdoor 16397-0637

No Longer Available BRACKET-DECK INDEX - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 747-0651

Deck Lift Handle

$

$

Not available

5

White Outdoor 715-0134

Spring Pin Spir. 3116" Dia. x 1.50" Lg.
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

6

White Outdoor 736-0187

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 711-0749

Adj. Ferrule Deck Lift Handle

$

$

Not available

8

White Outdoor 714-0115

Cotter Pin 118" Dia. x 1.00" Lg.

$3.99

$

Usually ships in 3-6 days

0

9

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

10

White Outdoor 16402

Deck Lift Handle Retainer Ass'y.

$

$

Not available

11

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 15578

Deck Lift Brkt. Ass'y.-L.H.

$

$

Not available

13

White Outdoor 736-0162

Fl-Wash. .635" I.D. x 1.04" O.D.

$4.49

$

In Stock, Qty 14

0

14

White Outdoor 732-0430

Compression Spring .50" Dia. x 1.0" Lg.

$

$

Not available

15

White Outdoor 715-0114

Spring Pin Spir. 114" Dia. x 1.50" Lg.

$9.49

$

In Stock, only 3 left!

0

16

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

18

White Outdoor 738-0550

Rear Hgt. Adj. Shaft

$

$

Not available

19

White Outdoor 15609

Deck Lift Brkt. Ass'y.-R.H.

$

$

Not available

20

White Outdoor 710-0866

Deck Adj. Scr. 3/8-16 Thd.

$

$

Not available

21

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 714-0145

Intern. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

23

15600

Deck Link Ass'y.-Rear

$

$

Not available

24

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

25

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 732-0540

Extension Spring .73" O.D. x 13.84" Lg.

$

$

Not available

27

White Outdoor 15644

Deck Drive Control Bracket
(Superseded to 15644A-0637)

$

$

Not available

28

White Outdoor 15568

Blade Engagement Lever Ass'y.
(Superseded to 15568A)

$

$

Not available

29

White Outdoor 720-0143

Grip

$

$

Not available

30

White Outdoor 732-0540

Extension Spring .73" O.D. x 1 3.89" Lg.

$

$

Not available

31

White Outdoor 15573

Deck Lift Ass'y.-Front

$

$

Not available

32

White Outdoor 747-0426

Deck Lift Connecting Rod

$

$

Not available

33

White Outdoor 711-0753

Clevis Pin Special .250" Dia.

$

$

Not available

34

White Outdoor 15613

Pivot Bar Bracket

$

$

Not available

35

White Outdoor 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 710-0805

Hex Bolt 5/16-18 x 1.50" Lg. (Grade 5)
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

37

White Outdoor 732-0435

Switch Actuator

$

$

Not available

38

White Outdoor 736-0160

Fl-Wash. .531' I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

39

White Outdoor 750-0515

Spacer .511" I.D. x .70" O.D. x.38" Lg.

$4.49

$

In Stock, only 4 left!

0

40

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

42

White Outdoor 732-0451

Spring Hook
(Superseded to 732-0451B)

$

$

Not available
