R-86 (135-514-190) - White Outdoor 30" Rear-Engine Riding Mower (1985) Chassis Assembly Parts Diagram

30" Rear-Engine Riding Mower

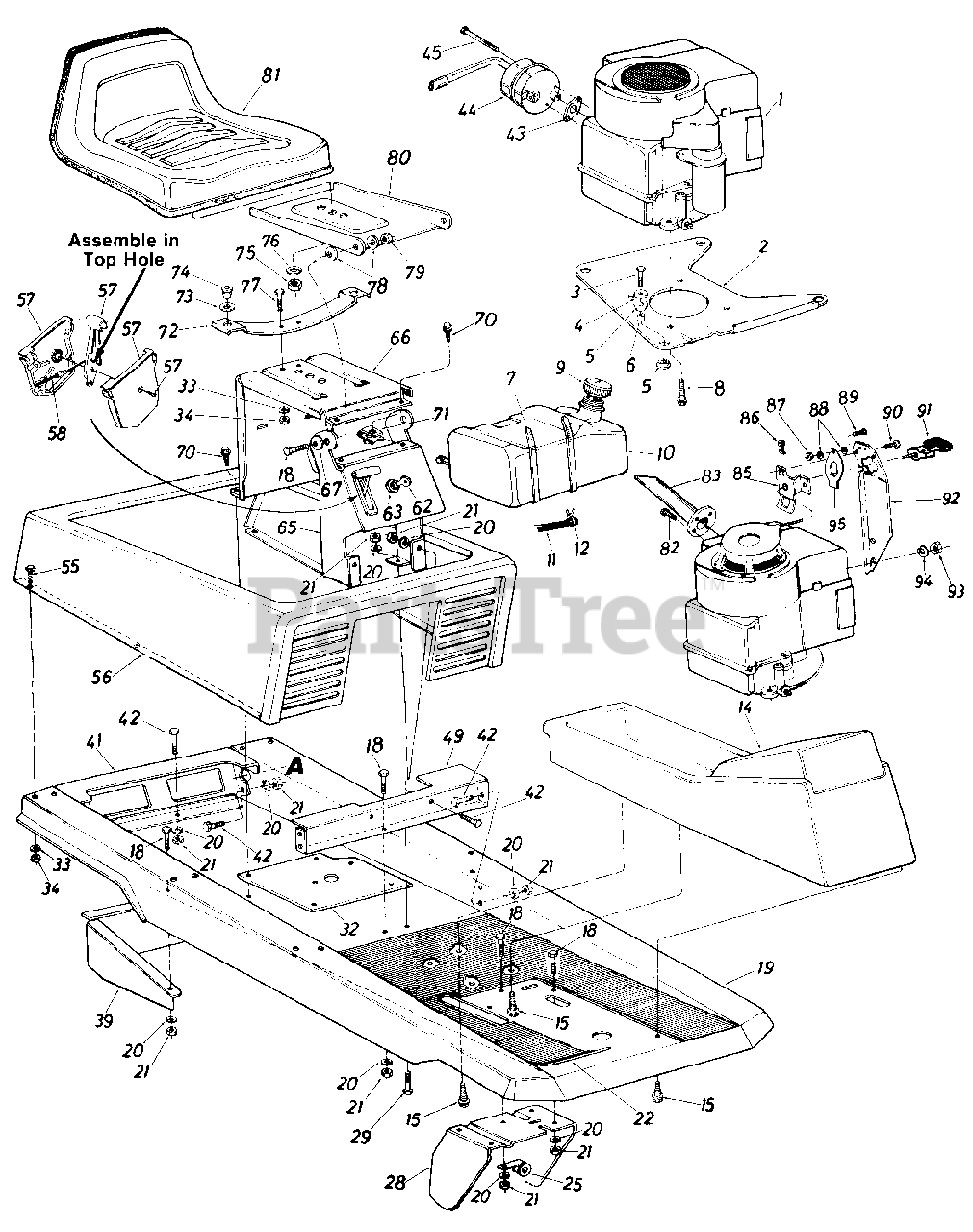

Chassis Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

White Outdoor 15572

Engine Mounting Plate
(Superseded to 15572A-0637)

$

$

Not available

3

White Outdoor 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 16

0

4

White Outdoor 736-0231

Fl-Wash. .330" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

5

White Outdoor 722-0153

Engine Mounting Grommet

$3.49

$

In Stock, Qty 20+

0

6

White Outdoor 750-0539

Spacer .315" I.D. x .50" O.D. x .520" Lg.
(Superseded to 950-0539)

$

$

Not available

7

White Outdoor 726-0153

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

8

White Outdoor 710-0502

Hex Wash Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

9

White Outdoor 723-0155

Gas Gauge

$

$

Not available

10

White Outdoor 751-0368

Fuel Tank
(Superseded to 751-0368C)

$

$

Not available

11

White Outdoor 751-0173

Gas Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

12

White Outdoor 726-0207

Hose Clamp .406" Dia.

$

$

Not available

14

White Outdoor 731-0712

Front Console

$

$

Not available

15

White Outdoor 710-0906

Plastite Scr. 5/16" x 1.25" Lg.
(Superseded to 710-0323)

$4.99

$

In Stock, only 2 left!

0

18

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

19

MTD 15978

Main Frame

$

$

Not available

20

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

22

White Outdoor 735-0220

Floor Mat

$

$

Not available

25

White Outdoor 726-0175

Clamp

$

$

Not available

28

White Outdoor 15562

Clutch-Brake Pedal Ass'y.

$

$

Not available

29

White Outdoor 710-0759

Hex Bolt 5/16-18 x .62" Lg*

$6.99

$

Usually ships in 3-6 days

0

32

15588

Mounting Brkt. Variable Speed Pulley

$

$

Not available

33

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

34

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

39

White Outdoor 15552

Transaxle Support Ass'y.

Variations

White Outdoor 15552-0637

No Longer Available SUPPORT ASSY-TRANS - POWDER BLACK (0637)

$

$

Not available

$

$

41

White Outdoor 15571

Rear Frame Panel

Variations

White Outdoor 15571-0498

No Longer Available PANEL-FRAME-RR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 15571-0629

No Longer Available PANEL-FRAME-RR - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 15571-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 15571-0638

No Longer Available PANEL-FRAME-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

42

White Outdoor 710-0621

Hex Bolt 5/16-18 x .50" Lg.*
(Superseded to 710-3039)

$

$

Not available

43

White Outdoor 721-0207

Exhaust Gasket
(Superseded to BS-692237)

Note: (514)

$5.49

$

In Stock, only 2 left!

0

44

White Outdoor 751-0412

Muffler Ass'y.

Note: (514)

$

$

Not available

45

White Outdoor 738-0635

Shld. Bolt
(Superseded to 938-0635)

Note: (514)

$

$

Not available

49

White Outdoor 15604

Seat Support & Frame Brkt.

$

$

Not available

55

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

56

White Outdoor 15975

Engine Cover Ass'y.

$

$

Not available

57

White Outdoor 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$21.99

$

Usually ships in 3-6 days

0

58

White Outdoor 746-0503

Throttle Control Wire
(Superseded to 946-0503)

$

$

Not available

751-3054

90ø Elbow

$

$

Not available

White Outdoor 735-0149

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

62

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

63

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

Note: (514)

$35.99

$

In Stock, Qty 20+

0

White Outdoor 725-0464

Ignition Switch
(Superseded to 925-1425)

Note: (511)

$35.99

$

In Stock, Qty 6

0

65

15897

Front Seat Bracket

$

$

Not available

66

White Outdoor 15606

Rear Seat Bracket

$

$

Not available

67

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 710-0601

Hex Wash Hd. Scr. 5/16-18 x .75"
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

71

White Outdoor 726-0211

Palnut Lug 5/16-18 Thd.

$4.49

$

In Stock, only 1 left!

0

72

732-0431

Seat Spring

$

$

Not available

73

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

74

White Outdoor 731-0555

Grommet
(Superseded to 731-0555A)

$

$

Not available

75

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

In Stock, Qty 20+

0

76

White Outdoor 736-0921

L-Wash. 1/2" I.D.*

$4.49

$

In Stock, only 2 left!

0

77

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

78

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

79

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

80

White Outdoor 15607

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

81

White Outdoor 757-0264

Seat Ass'y. Comp.

$

$

Not available

82

White Outdoor 710-0894

Hex Wash. Hd. TT-Tap Scr. 8-32 x .50" Lg.
(Superseded to 710-0148)

Note: (511)

$4.49

$

In Stock, Qty 16

0

83

White Outdoor 751-0339

Exhaust Pipe Ass'y.

Note: (511)

$

$

Not available

85

11053

Switch Brkt. Ass'y.

Note: (511)

$

$

Not available

86

White Outdoor 712-0147

Speed Nut #10-24 U-Type

Note: (511)

$6.99

$

Usually ships in 3-6 days

0

87

White Outdoor 712-0121

Hex Nut #10-24 Thd.*

Note: (511)

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 736-0338

Fiber Washer

Note: (511)

$

$

Not available

89

White Outdoor 710-0425

Truss Mach. Scr. #10-24 x .62" Lg.*

Note: (511)

$4.99

$

Usually ships in 3-6 days

0

90

White Outdoor 710-0351

Truss Mach. Scr. #10 x .50" Lg.*

Note: (511)

$4.49

$

Usually ships in 3-6 days

0

91

White Outdoor 11263

Plastic Handle

Note: (Starter Rope)

$

$

Not available

92

White Outdoor 15655

Rope Handle Bracket

Note: (511)

$

$

Not available

93

White Outdoor 712-0267

Hex N ut 5/16-18 Thd.*
(Superseded to 912-3010)

Note: (511)

$

$

Not available

94

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

Note: (511)

$4.99

$

In Stock, Qty 20+

0

95

White Outdoor 732-0257

Switch Spring

Note: (511)

$

$

Not available
