R 850 - Husqvarna Swedish Riding Mower (1998-03) PEDALS Parts Diagram

Swedish Riding Mower

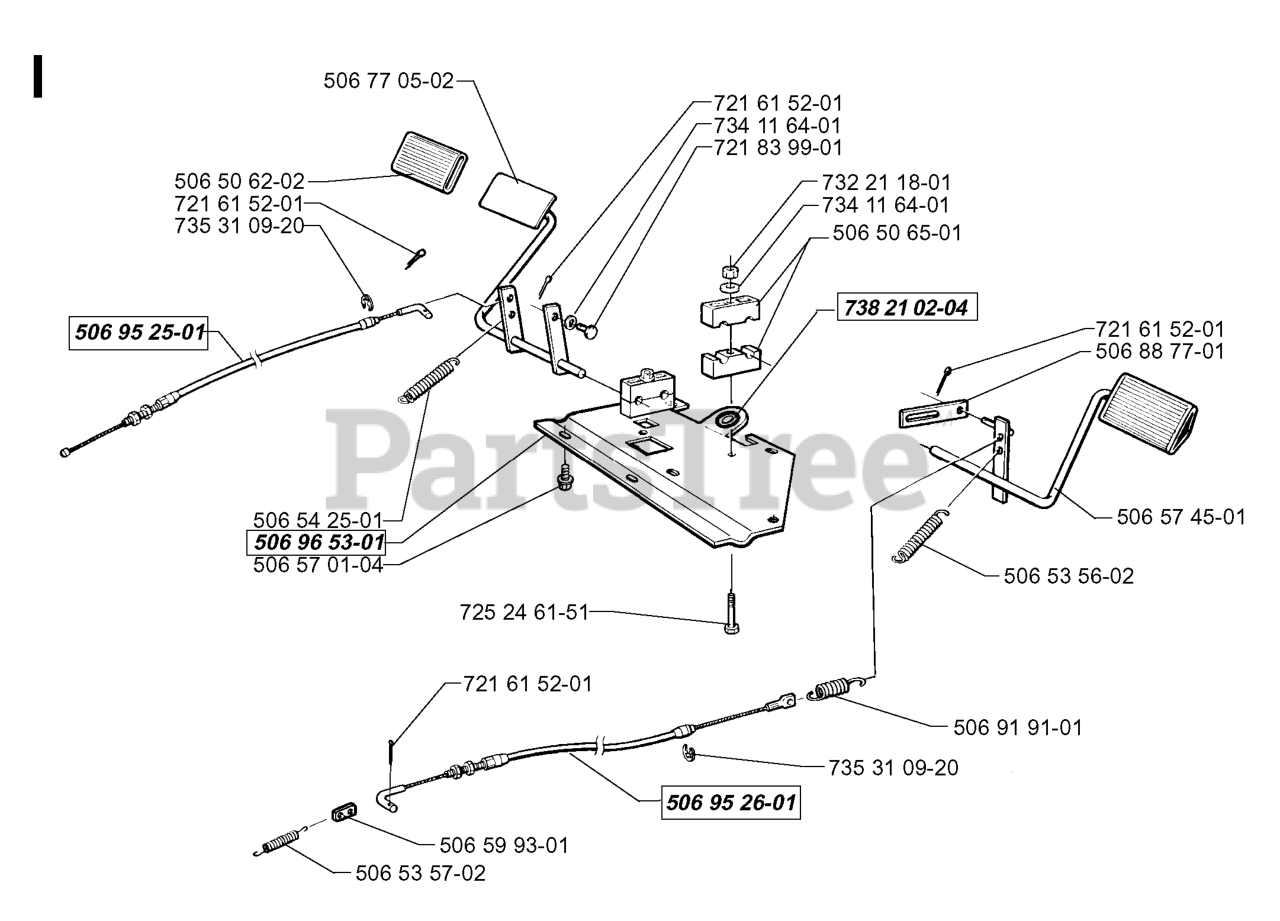

PEDALS Parts Diagram

  • Title

506 53 56-02

Husqvarna 506535602

SPRING

$

$

Not available

506 88 77-01

Husqvarna 506887701

Link

$

$

Not available

506 91 91-01

Husqvarna 506919101

SPRING

$5.76

$

Usually ships in 3-10 days

0

506 96 53-01

Husqvarna 506965301

Plate

$

$

Not available

506 57 45-01

Husqvarna 506574501

BRAKE PEDAL ASSY

$

$

Not available

506 50 65-01

Husqvarna 506506501

PEDAL SHAFT CLAMP

$7.99

$

Usually ships in 3-10 days

0

506 59 93-01

Husqvarna 506599301

CONNECTOR

$

$

Not available

506 54 25-01

Husqvarna 506542501

SPRING

$

$

Not available

506 95 25-01

Husqvarna 506952501

CABLE

$60.99

$

Usually ships in 3-10 days

0

725 24 61-51

Husqvarna 725246151

BOLT

$5.99

$

In Stock, only 1 left!

0

721 83 99-01

Husqvarna 721839901

Clevis Pin

$4.99

$

Usually ships in 3-10 days

0

506 77 05-02

Husqvarna 506770502

PEDAL

$

$

Not available

735 31 09-20

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 8

0

506 57 01-04

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

738 21 02-04

Husqvarna 738210204

BALL BEARING 6002-2RS1

$13.99

$

Usually ships in 3-10 days

0

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

721 61 52-01

Husqvarna 721615201

Cotter Pin

$1.49

$

Usually ships in 3-10 days

0

506 95 26-01

Husqvarna 506952601

CABLE

$

$

Not available

506 50 62-02

Husqvarna 506506202

PEDAL RUBBER,SF
(Superseded to 586966402)

$17.99

$

In Stock, only 3 left!

0

734 11 64-01

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

506 53 57-02

Husqvarna 506535702

SPRING

$

$

Not available
