R 850 HST - Husqvarna Swedish Riding Mower (1997-03) SEAT Parts Diagram

Swedish Riding Mower

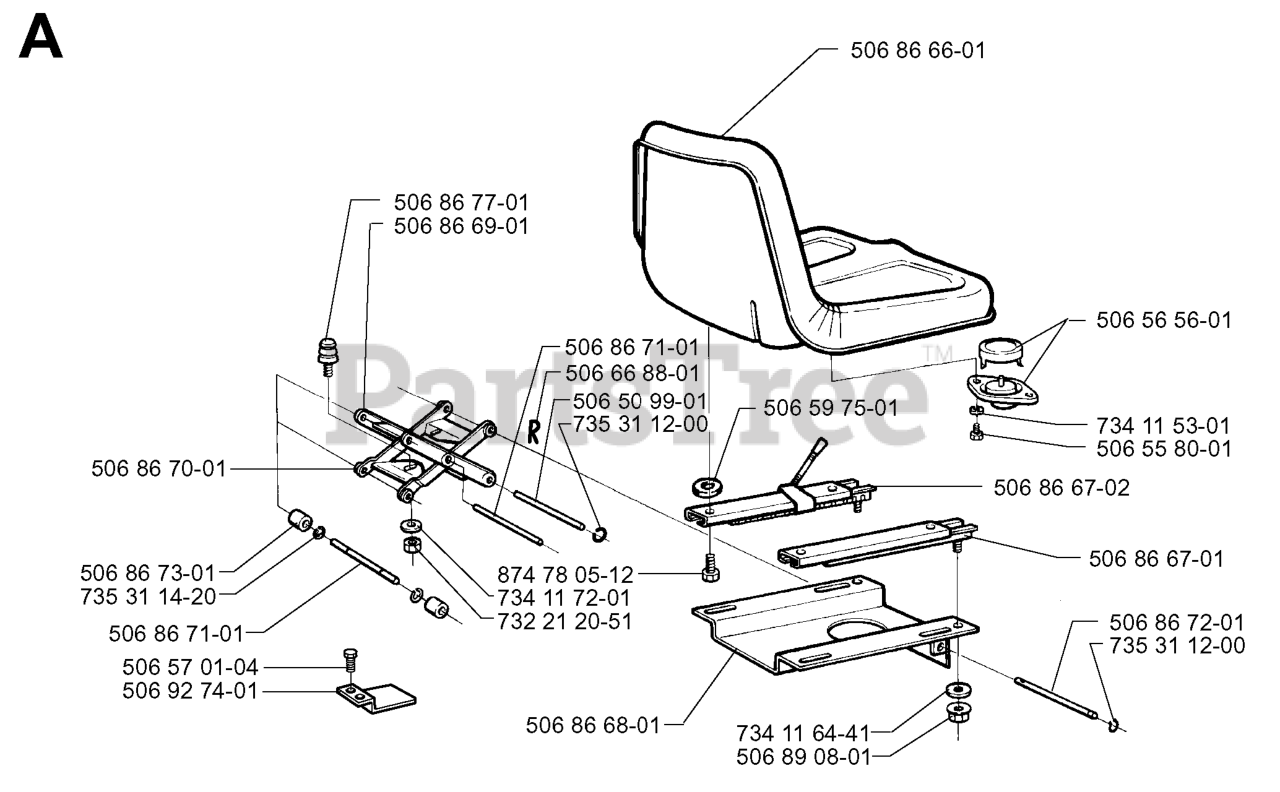

SEAT Parts Diagram

  • Title

735 31 12-00

Husqvarna 735311200

RETAINING RING SGA 10

$4.99

$

In Stock, only 2 left!

0

506 86 77-01

Husqvarna 506867701

DAMPER

$

$

Not available

735 31 14-20

Husqvarna 735311420

RETAINING RING

$3.49

$

In Stock, only 1 left!

0

506 86 73-01

Husqvarna 506867301

ROLLER

$

$

Not available

506 86 70-01

Husqvarna 506867001

ROD

$

$

Not available

506 56 56-01

Husqvarna 506565601

ANTI-START SWITCH CPL

$

$

Not available

506 86 67-01

Husqvarna 506866701

RAIL,R.H.

$

$

Not available

506 50 99-01

Husqvarna 506509901

Shaft

$

$

Not available

506 57 01-04

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

506 86 68-01

Husqvarna 506866801

BRACKET

$

$

Not available

506 92 74-01

Husqvarna 506927401

PLATE

$

$

Not available

506 86 71-01

Husqvarna 506867101

SHAFT

$

$

Not available

734 11 64-41

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

506 66 88-01

Husqvarna 506668801

PIN

$

$

Not available

506 55 80-01

Husqvarna 506558001

SCREW

$

$

Not available

732 21 20-51

Husqvarna 732212051

NUT
(Superseded to 732212001)

$4.99

$

Usually ships in 3-10 days

0

734 11 72-01

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

506 86 67-02

Husqvarna 506866702

RAIL, L.H.

$

$

Not available

874 78 05-12

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

506 86 72-01

Husqvarna 506867201

SHAFT

$

$

Not available

506 59 75-01

Husqvarna 506597501

WASHER

$

$

Not available

734 11 53-01

Husqvarna 734115301

Washer

$2.99

$

Usually ships in 3-10 days

0

506 86 66-01

Husqvarna 506866601

SEAT
(Superseded to 506866602)

$

$

Not available

506 89 08-01

Husqvarna 506890801

NUT

$

$

Not available

506 86 69-01

Husqvarna 506866901

ROD

$

$

Not available
