Lawn-Boy R 8241 - Lawn-Boy Walk-Behind Mower (SN: C00000001 - C99999999) (1984) HOUSING AND SHROUD GROUP MODELS: R8241 Parts Lookup with Diagrams

1

Lawn-Boy 611395

Screw

(Superseded to 611543) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 3 left!

2

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$22.99

$

In Stock, Qty 8

3

Lawn-Boy 682802

Shroud-Engine

(Superseded to 16-5539) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

4

Lawn-Boy 681818

Fuel Shut-Off Assembly

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

5

Lawn-Boy 611383

Cover-Shroud

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

6

Lawn-Boy 682759

Control Cable Assembly

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$127.99

$

In Stock, only 1 left!

7

Lawn-Boy 611318

Bolt-Shoulder Clutch Arm

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

8

Lawn-Boy 607560

Cover Plate

(Superseded to 95-7052) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$38.99

$

In Stock, Qty 9

9

Lawn-Boy 606733

Wing Screw

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$10.99

$

In Stock, Qty 6

10

Lawn-Boy 607809

Screw-Plate and Chute Mounting

(Superseded to 614677) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 12

11

Lawn-Boy 682787

Housing Assembly

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

12

Lawn-Boy 604604

Grommet

(Superseded to 94-1610) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

13

Lawn-Boy 609961

Starting Pad

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

14

Lawn-Boy 609993

Decal-Starting Pad

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

15

Lawn-Boy 610640

Decal-Blade Contact Warning

(Superseded to 43-8480) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

16

Lawn-Boy 682798

Muffler Assembly

(Superseded to 684089) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

17

Lawn-Boy 611507

Shield-Actuator

(Superseded to 683279) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

18

Lawn-Boy 682820

Clutch Brake Assembly

(Superseded to 683098) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

19

Lawn-Boy 611415

Spring

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$70.99

$

Usually ships in 3-6 days

20

Lawn-Boy 611418

Spring-Pressure

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

21

Lawn-Boy 611399

Screw-Shoulder

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

22

Lawn-Boy 611412

Washer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$36.99

$

Usually ships in 3-6 days

23

Lawn-Boy 611413

Lock Washer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

24

Lawn-Boy 611417

Screw-Socket Head

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

25

Lawn-Boy 682917

Blade-21"

(Superseded to 612540-03) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$46.99

$

Usually ships in 3-6 days

26

Lawn-Boy 611398

Screw-Sems-Blade

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

27

Lawn-Boy 611394

Screw-Muff. to Block

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

28

Lawn-Boy 609471

Screw-Muff. to Engine Mounting Plate

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 10

29

Lawn-Boy 603441

Bolt-Wheel-Front Washer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$8.49

$

In Stock, Qty 16

30

Lawn-Boy 605256

Washer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

31

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

32

Lawn-Boy 678636

Wheel-Front

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$25.99

$

In Stock, Qty 9

33

Lawn-Boy 603620

Washer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 20+

34

Lawn-Boy 610646

Shoulder Bolt

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$7.99

$

Usually ships in 3-6 days

35

Lawn-Boy 681229

Knob and Spring Assembly

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

36

Lawn-Boy 608833

Bracket-Wheel Hght. Adj.

(Superseded to 608833-03) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 4 left!

37

Lawn-Boy 608834

Washer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

38

Lawn-Boy 611397

Seal-Exhaust

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

39

Lawn-Boy 608311

Nut-Eng. Mtg. Plt. to Hsg.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

40

Lawn-Boy 611595

Screw

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

41

Lawn-Boy 607605

Spacer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

42

Lawn-Boy 307417

Grommet

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

43

Lawn-Boy 609588

Spacer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

44

Lawn-Boy 607188

Screw-Handle Bracket

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

46

Lawn-Boy 611297

Cover-Drive Axle

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

47

Lawn-Boy 608452

Screw-Axle Cover Mtg.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

48

Lawn-Boy 608497

Spring-R.H.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

49

Lawn-Boy 611262

Shield-Trailing

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$43.99

$

In Stock, Qty 5

50

Lawn-Boy 609891

Screw

(Superseded to 700138) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

51

Lawn-Boy 608498

Spring-L.H.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

52

Lawn-Boy 602315

Nut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 2 left!

53

Lawn-Boy 608161

Clamp

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

54

Lawn-Boy 608174

Rod-Trailing Shield

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

55

Lawn-Boy 611774

Screw-Eng. Mtg. Plt. and Cable Assembly to Housing

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

56

Lawn-Boy 603773

Nut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

57

Lawn-Boy 611373

Plate-Eng. Mtg.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

58

Lawn-Boy 608175

Toe Bar

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$81.99

$

Usually ships in 3-6 days

59

Lawn-Boy 608418

Screw

(Superseded to 46-6811) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

60

Lawn-Boy 609420

Gasket Exhaust

(Superseded to 93-1233) 

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

61

Lawn-Boy 607601

Screw-Eng. Mtg. Plt. to Blk.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 3 left!

62

Lawn-Boy 683279

Muffler Seal and Shield Kit

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

63

Lawn-Boy 611970

Shield-Muffler Seal

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors. Item 17 not used with items 63 and 64.

$

Not available 

64

Lawn-Boy 611969

Seal-Muffler

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors. Item 17 not used with items 63 and 64.

$

Not available 

65

Lawn-Boy 611581

Decal-Clutch

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

Not available 

R 8241 - Lawn-Boy Walk-Behind Mower (SN: C00000001 - C99999999) (1984) HOUSING AND SHROUD GROUP MODELS: R8241 Parts Diagram

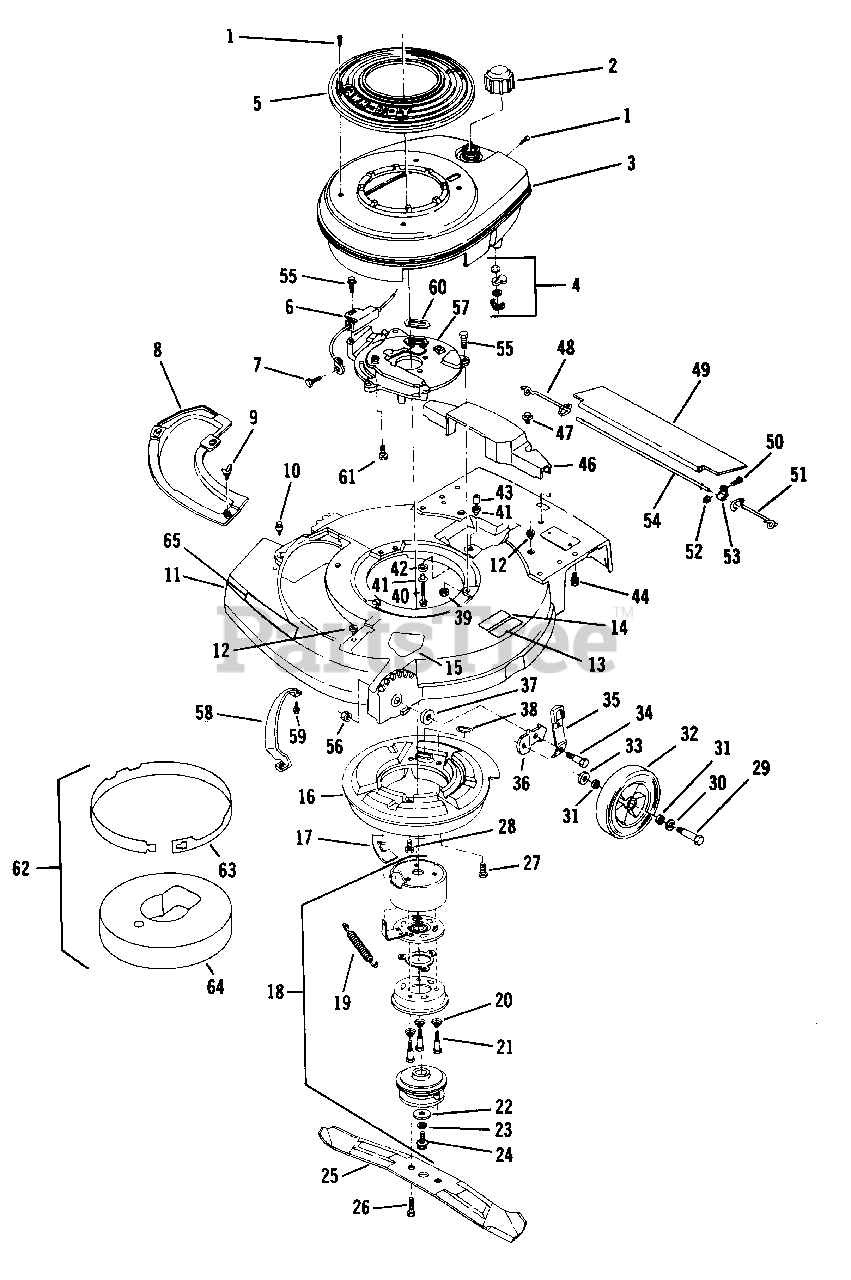

HOUSING AND SHROUD GROUP MODELS: R8241 Parts Diagram
