R 8241 - Lawn-Boy Walk-Behind Mower (SN: C00000001 - C99999999) (1984) HANDLE AND REAR GRASS CATCHER GROUP MODEL R8241 Parts Diagram

Walk-Behind Mower

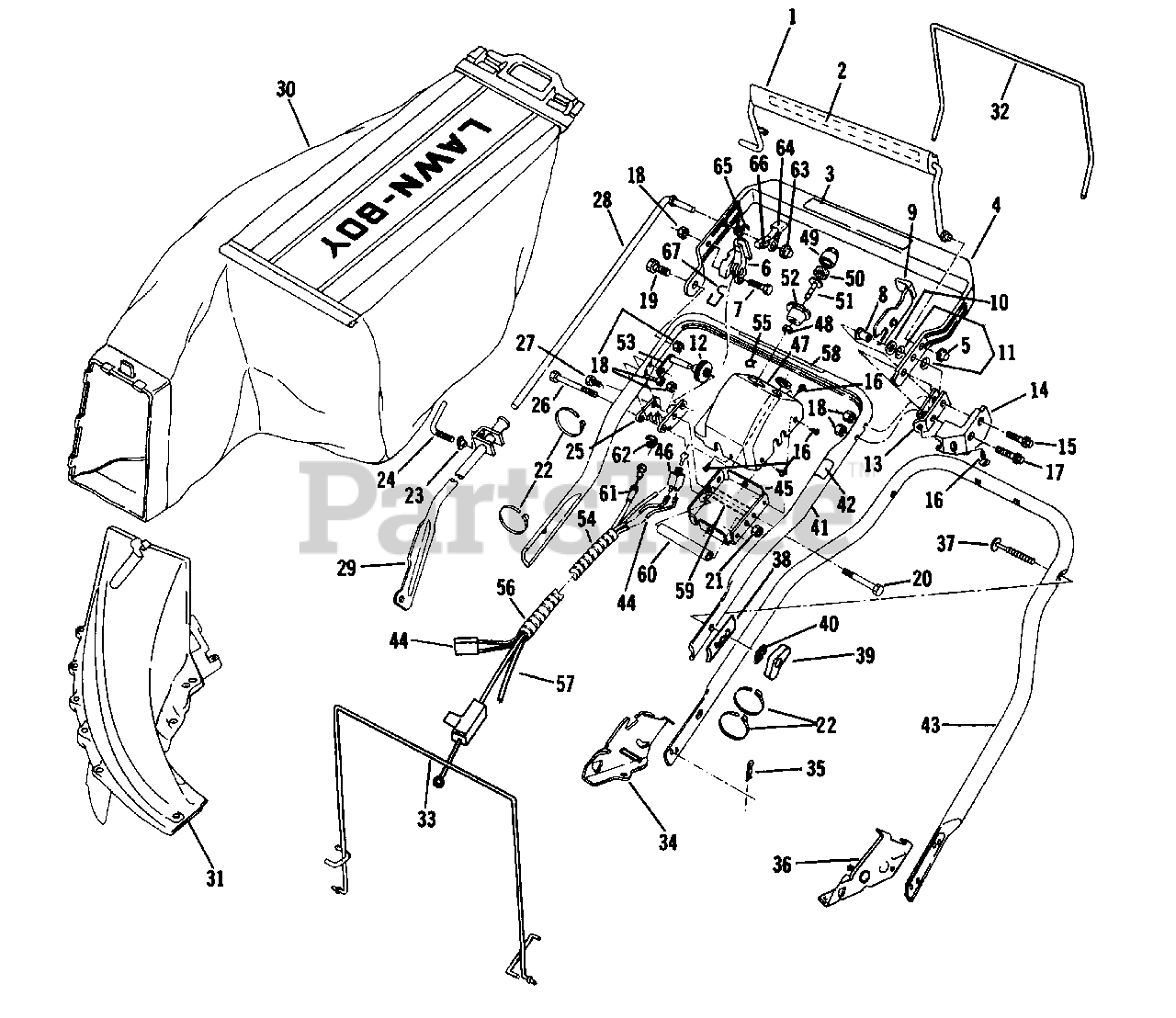

HANDLE AND REAR GRASS CATCHER GROUP MODEL R8241 Parts Diagram

  • Title

1

Lawn-Boy 682686

Control Lever Assembly-Bail
(Superseded to 683728)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611335

Decal-Blade Control

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 611237

Decal-Drive Control

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 682680

Top Handle and Grip Assembly
(Superseded to 682681)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$237.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 605546

Pushnut
(Superseded to 32112-11)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

6

Lawn-Boy 611330

Cam-Clutch Cont. Bail
(Superseded to 683431)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 611222

Bolt-Hex

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 611203

Spacer-Flanged

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$42.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 611219

Lever-Lockout
(Superseded to 612657)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 306359

Washer-Plain

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 303254

Washer-Spring
(Superseded to 121-4605)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

12

Lawn-Boy 611195

Pulley
(Superseded to 612564)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611221

Down-Stop

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611218

Guard-Lockout

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 611220

Bolt-Shoulder

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 606537

Screw

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

17

Lawn-Boy 611217

Bolt-Shoulder-L.H.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 602315

Locknut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 611202

Bolt-Shoulder-R.H.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 611246

Screw-Hex Hd. Cap.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 611245

Nut-Hex Jam

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

23

Lawn-Boy 602992

Nut-Cont. Lvr. Clamp

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 603699

Lever-Rod Clamp

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611196

Bracket-Clutch Cable

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 611228

Screw

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 609891

Screw-Clutch Cable Brkt.
(Superseded to 700138)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 611331

Rod-Control
(Superseded to 682758)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 682758

Control Lever Assembly

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 681917

Bag and Deflector Assembly
(Superseded to 99-5223)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 679487

Chute Assembly
(Superseded to 99-6411)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 609691

Hanger-Rear

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 682765

Hanger Assembly-Front

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$134.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 682736

Bracket-Handle-R.H.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$93.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 605803

Hair Pin

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 682737

Bracket-Handle L.H.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 611184

Screw

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$8.49

$

In Stock, only 1 left!

0

38

Lawn-Boy 609692

Bracket-Rear Hanger

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 607544

Knob

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

40

Lawn-Boy 609739

Washer-Curved

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 8

0

41

Lawn-Boy 611298

Handle Section-Center

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 611236

Decal-Drive Lockout

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 607545

Handle Section-Bottom
(Superseded to 612787)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 682728

Wire Harness Assembly

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 611226

Plate-Cover Assembly

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 682750

Switch Assembly

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 611299

Cover

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 608027

Locknut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 6

0

49

Lawn-Boy 611072

Primer Bulb

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 611114

Filter

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

51

Lawn-Boy 607311

Primer Base

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 611242

Cup

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 611194

Pivot Bracket-Pulley

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 611424

Spiral Tubing

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 611311

Decal

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 609857

Spiral Tubing

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 611452

Tubing-Primer
(Superseded to 611231)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 611316

Decal-Starting Inst.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 611223

Spacer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

60

Lawn-Boy 611225

Spacer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 682759

Control Cable Assembly

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$127.99

$

In Stock, only 1 left!

0

62

Lawn-Boy 611224

Ring-Retainer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683170

Stop and Spring Assembly

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 605546

Pushnut
(Superseded to 32112-11)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

64

Lawn-Boy 611334

Decal-Stop-Latch Lever

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 611797

Spring-Torsion

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

66

Lawn-Boy 611798

Stop-Latch Lever

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

67

Lawn-Boy 611748

Retainer-Cable to Cam

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available
