R 8240 - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) Engine Group Models: 8240, 8290, R8240 Parts Diagram

Walk-Behind Mower

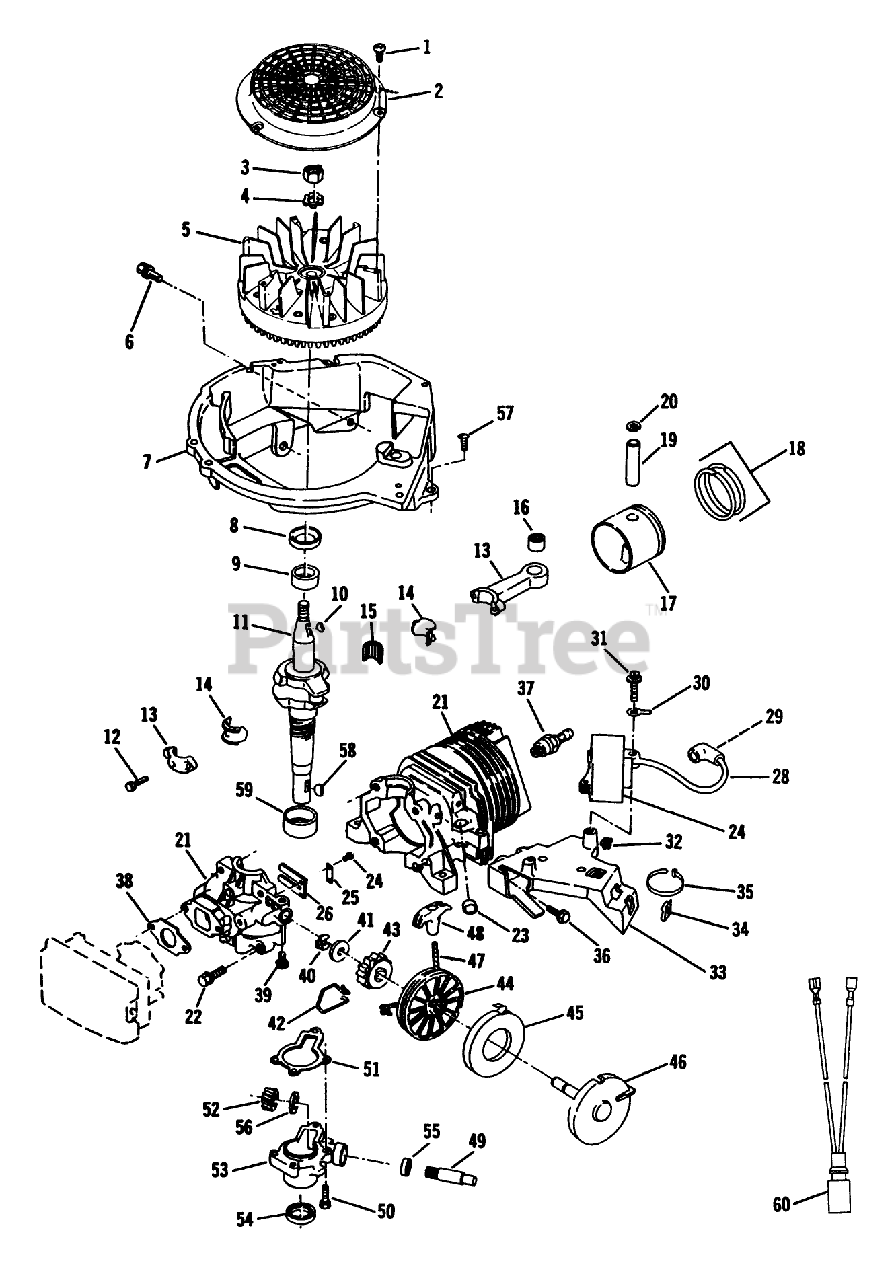

Engine Group Models: 8240, 8290, R8240 Parts Diagram

  • Title

1

Lawn-Boy 606537

SCREW F

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

2

Lawn-Boy 611375

SCREEN F'WHEEL S

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 130743

NUT

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 6

0

4

Lawn-Boy 316959

See Supercession: 3253-6
(Superseded to 325-36)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 682766

DISCONTINUED
(Superseded to 683855)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609947

SCREW-SEMS

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 682811

DISCONTINUED

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 605020

See Supercession: 611396
(Superseded to 611396)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 681830

BEARING V

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 607199

KEY

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 9

0

11

Lawn-Boy 611430

DISCONTINUED

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 682677

DISCONTINUED
(Superseded to 92-4925)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 611393

SCREW-HSH

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$22.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 682970

NEEDS DESCRIPTION
(Superseded to 92-4921)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$241.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 677982

LINER ASM

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$46.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 677963

See Supercession: 683911
(Superseded to 683911)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$23.99

$

In Stock, Qty 5

0

16

Lawn-Boy 679144

BEARING AY F

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 682986

DISCONTINUED
(Superseded to 92-4923)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 681737

DISCONTINUED

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 606608

See Supercession: 94-5774
(Superseded to 94-5774)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 303712

RING-RETAINING

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 11

0

21

Lawn-Boy 683027

See Supercession: 683708
(Superseded to 683708)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 610372

SEALER-LOCTITE (6 ML TUBE)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$27.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 609918

SCREW S

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 609123

PLUG-CORE VF

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 303761

See Supercession: 612872
(Superseded to 612872)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 5

0

25

Lawn-Boy 602587

PLATE-BACKUP, REED

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 602588

DISCONTINUED

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 682702

See Supercession: 100-2948
(Superseded to 100-2948)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$125.99

$

In Stock, only 1 left!

0

Lawn-Boy 318535

Adhesive

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Currently unavailable

Lawn-Boy 318535

Adhesive

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Currently unavailable

28

Lawn-Boy 681678

HT LEAD&COVER XEV

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 510231

See Supercession: 684698
(Superseded to 684698)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 609651

TERMINAL S

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 605120

NUT-CLIP

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 9

0

33

Lawn-Boy 611374

See Supercession: 613073
(Superseded to 613073)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 609475

NUT - SPEED S

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

36

Lawn-Boy 307028

See Supercession: 614343
(Superseded to 614343)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

37

Lawn-Boy 605885

See Supercession: 614009
(Superseded to 614009)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

38

Lawn-Boy 609476

GASKET CARB S

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 611073

See Supercession: 3274-10
(Superseded to 3274-10)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$9.99

$

In Stock, Qty 13

0

Lawn-Boy 682800

See Supercession: 683213
(Superseded to 683213)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 609004

DISCONTINUED

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 609005

WASHER S

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 609229

SPRING F

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

43

Lawn-Boy 609133

DISCONTINUED

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 611400

PULLEY STARTER S

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$49.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 682814

See Supercession: 683214
(Superseded to 683214)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 682813

DISCONTINUED-ORDER 683214

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 607874

DISCONTINUED

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 609477

HANDLE STARTER S

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 607708

DISCONTINUE

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 609418

DISCONTINUED

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 609419

GASKET S

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 2 left!

0

52

Lawn-Boy 608367

GEAR, DR SHAFT S

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$100.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 682812

See Supercession: 683876
(Superseded to 683876)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 611396

SEAL-OIL

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

55

Lawn-Boy 608224

SEAL S

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 1 left!

0

56

Lawn-Boy 608030

THRUST WASHER

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

57

Lawn-Boy 609808

SCREW F

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 551041

See Supercession: 607199
(Superseded to 607199)

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 9

0

59

Lawn-Boy 681832

BEARING S

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 682784

WIRE HARNESS

Note: Not Shown Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available
