R 8237 AE - Lawn-Boy Walk-Behind Mower (SN: 800000001 - 899999999) (1978) ENGINE GROUP-F140AE MODELS: R8237AE Parts Diagram

Walk-Behind Mower

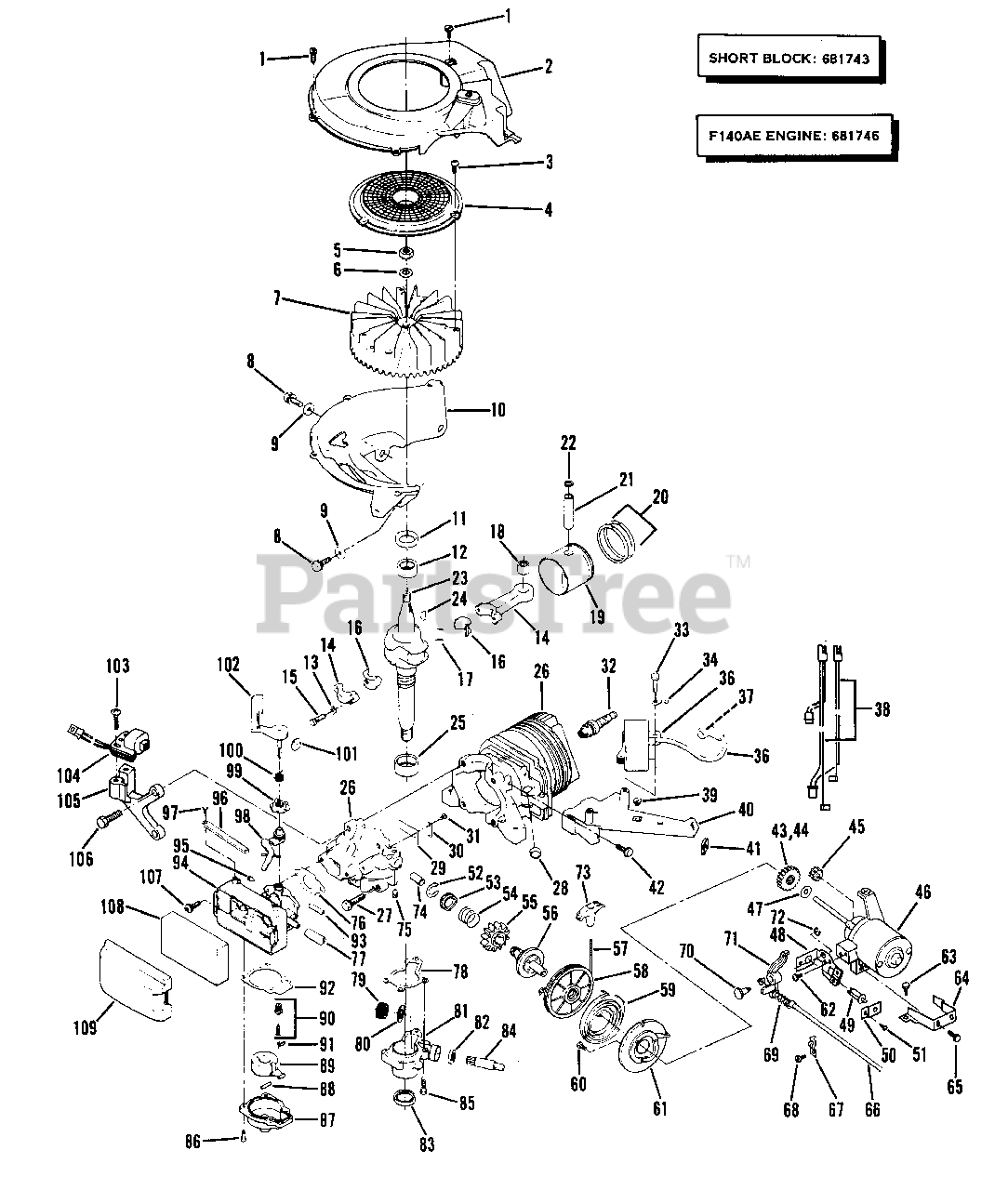

ENGINE GROUP-F140AE MODELS: R8237AE Parts Diagram

  • Title

1

Lawn-Boy 609807

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 681651

Air Baffle & Eyelet Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$137.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 606537

Screw-Flywheel Screen

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

4

Lawn-Boy 609465

Screen-Flywheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 130743

Nut-Flywheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, Qty 6

0

6

Lawn-Boy 304161

Lockwasher

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 681431

Flywheel Assembly
(Superseded to 682205)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 604857

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 314957

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

10

Lawn-Boy 609542

Base-Shroud

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 605020

Oil Seal-Upper
(Superseded to 611396)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 681830

Bearing-Upper

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

Lawn-Boy 681739

Piston & Connecting Rod Assembly
(Superseded to 92-4925)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 307558

Lockplate
(Superseded to 307578)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 681434

Connecting Rod Assembly
(Superseded to 92-4921)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$241.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 603976

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 677982

Liner-Split

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$46.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 677963

Needle Bearing Set
(Superseded to 683911)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$23.99

$

In Stock, Qty 5

0

18

Lawn-Boy 679144

Bearing Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 681738

Piston & Ring Set
(Superseded to 92-4923)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 681737

Ring Set

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 303712

Retaining Ring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, Qty 11

0

23

Lawn-Boy 609407

Crankshaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 607199

Key-Flywheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 9

0

25

Lawn-Boy 681832

Bearing-Lower

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 681655

Cylinder & Crankcase Cover Assembly
(Superseded to 683708)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 609918

Screw-Cover to Crankcase

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 609123

Plug

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 602588

Reed

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 602587

Plate-Reed Hold Down

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 303761

Screw-Reed to Crankcase Cover
(Superseded to 612872)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

In Stock, Qty 5

0

32

Lawn-Boy 605885

Spark Plug
(Superseded to 614009)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

33

Lawn-Boy 607526

Screw-C.D. Mounting
(Superseded to 32105-12)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 609651

Terminal-Ignition

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

Lawn-Boy 318535

Adhesive

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

35

Lawn-Boy 681578

C.D. Ignition Module & Lead Assembly
(Superseded to 100-2949)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$95.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 681678

High Tension Lead

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 510231

Spring Terminal
(Superseded to 684698)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 681671

Wire Harness & Terminal Assembly-Battery

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 605120

Grommet-C.D. Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, Qty 9

0

40

Lawn-Boy 609120

Bracket-C.D. Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 609475

Clip-"U"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 307028

Screw
(Superseded to 614343)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

Lawn-Boy 681663

Electric Starter & Interlock Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 681662

Gear & Clutch Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 609131

Gear-Driven

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 608034

Pinion-Motor Shaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 681437

Motor & Gear Housing Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 609568

Thrust Washer
(Superseded to 252-98)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 609574

Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 681295

Switch Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 609068

Plate-Switch Retaining

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 608957

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 608622

Ring-Retaining

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

53

Lawn-Boy 609565

Stopwasher
(Superseded to 613451)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 609570

Spring-Pinion Return

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 609566

Pinion
(Superseded to 610167)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 681442

Clutch Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 607874

Rope-Starter

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 681439

Pulley & Clutch Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 609569

Spring-Rewind

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 609130

Screw-Cover to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

61

Lawn-Boy 681441

Gear Cover Assembly
(Superseded to 609129)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 511328

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 609580

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 609573

Bracket-Starter Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 609579

Screw-Bracket to Motor

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

66

Lawn-Boy 681669

Cable-Interlock

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

67

Lawn-Boy 608940

Clip

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

68

Lawn-Boy 608957

Screw-Clip-Cable

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

69

Lawn-Boy 609571

Spring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

70

Lawn-Boy 609575

Pin-Interlock

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

71

Lawn-Boy 609577

Lever-Interlock

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

72

Lawn-Boy 609576

Retaining Ring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

73

Lawn-Boy 609477

Handle-Starter-Manual

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

74

Lawn-Boy 609572

Sleeve-Starter Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$41.99

$

In Stock, only 1 left!

0

75

Lawn-Boy 603345

Set Screw-Starter Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

In Stock, only 3 left!

0

76

Lawn-Boy 609476

Gasket-Carburetor to Crankcase Cover

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

77

Lawn-Boy 609639

Fuel Line

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

78

Lawn-Boy 609419

Gasket-Gear Box

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, only 2 left!

0

79

Lawn-Boy 608367

Gear

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$100.99

$

Usually ships in 3-6 days

0

80

Lawn-Boy 608030

Washer-Thrust

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

81

Lawn-Boy 681435

Gear Box Assembly
(Superseded to 683876)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

82

Lawn-Boy 608224

Seal

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$15.99

$

In Stock, only 1 left!

0

83

Lawn-Boy 605020

Oil Seal-Lower
(Superseded to 611396)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

84

Lawn-Boy 607708

Driveshaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

85

Lawn-Boy 609418

Screw-Gear Box

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

Lawn-Boy 681721

Carburetor & Air Vane Assembly
(Superseded to 682568)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

86

Lawn-Boy 608850

Screw-Float Chamber

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

In Stock, only 3 left!

0

87

Lawn-Boy 609793

Float Chamber
(Superseded to 682568)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

88

Lawn-Boy 300096

Pin-Float
(Superseded to 92-6389)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

89

Lawn-Boy 678113

Float

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

90

Lawn-Boy 681741

Float Valve & Seat
(Superseded to 92-9697)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$27.99

$

In Stock, Qty 8

0

91

Lawn-Boy 603145

Clip
(Superseded to 92-9697)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$27.99

$

In Stock, Qty 8

0

92

Lawn-Boy 602850

Gasket
(Superseded to 98-1362)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, Qty 20+

0

93

Lawn-Boy 609640

Tube-Primer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$14.99

$

In Stock, only 3 left!

0

94

Lawn-Boy 681720

Carburetor Body
(Superseded to 682568)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

95

Lawn-Boy 609686

Screw-Altitude Adjustment

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$11.99

$

In Stock, only 2 left!

0

96

Lawn-Boy 609792

Retainer-Speed Control Lever
(Superseded to 610165)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, Qty 15

0

97

Lawn-Boy 609804

Screw
(Superseded to 610165)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, Qty 15

0

98

Lawn-Boy 609631

Speed Control Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.99

$

In Stock, only 1 left!

0

99

Lawn-Boy 609489

Collar

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

100

Lawn-Boy 609638

Spring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$9.49

$

In Stock, only 1 left!

0

101

Lawn-Boy 609632

Disk-Throttle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, only 1 left!

0

102

Lawn-Boy 609630

Air Vane & Shaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

103

Lawn-Boy 607526

Screw-Alternator Mounting
(Superseded to 32105-12)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

104

Lawn-Boy 681653

Alternator Assembly
(Superseded to 683095)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

105

Lawn-Boy 609543

Bracket-Alternator

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

106

Lawn-Boy 609545

Screw-Alternator Bracket Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

107

Lawn-Boy 609482

Screw-Carburetor Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 8

0

108

Lawn-Boy 609493

Element-Air Filter
(Superseded to 107-4621)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 6

0

109

Lawn-Boy 609641

Cover-Air Filter
(Superseded to 93-1231)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available
