R 800 - Husqvarna Swedish Riding Mower (1993-04) Traction Drive Assembly Parts Diagram

Swedish Riding Mower

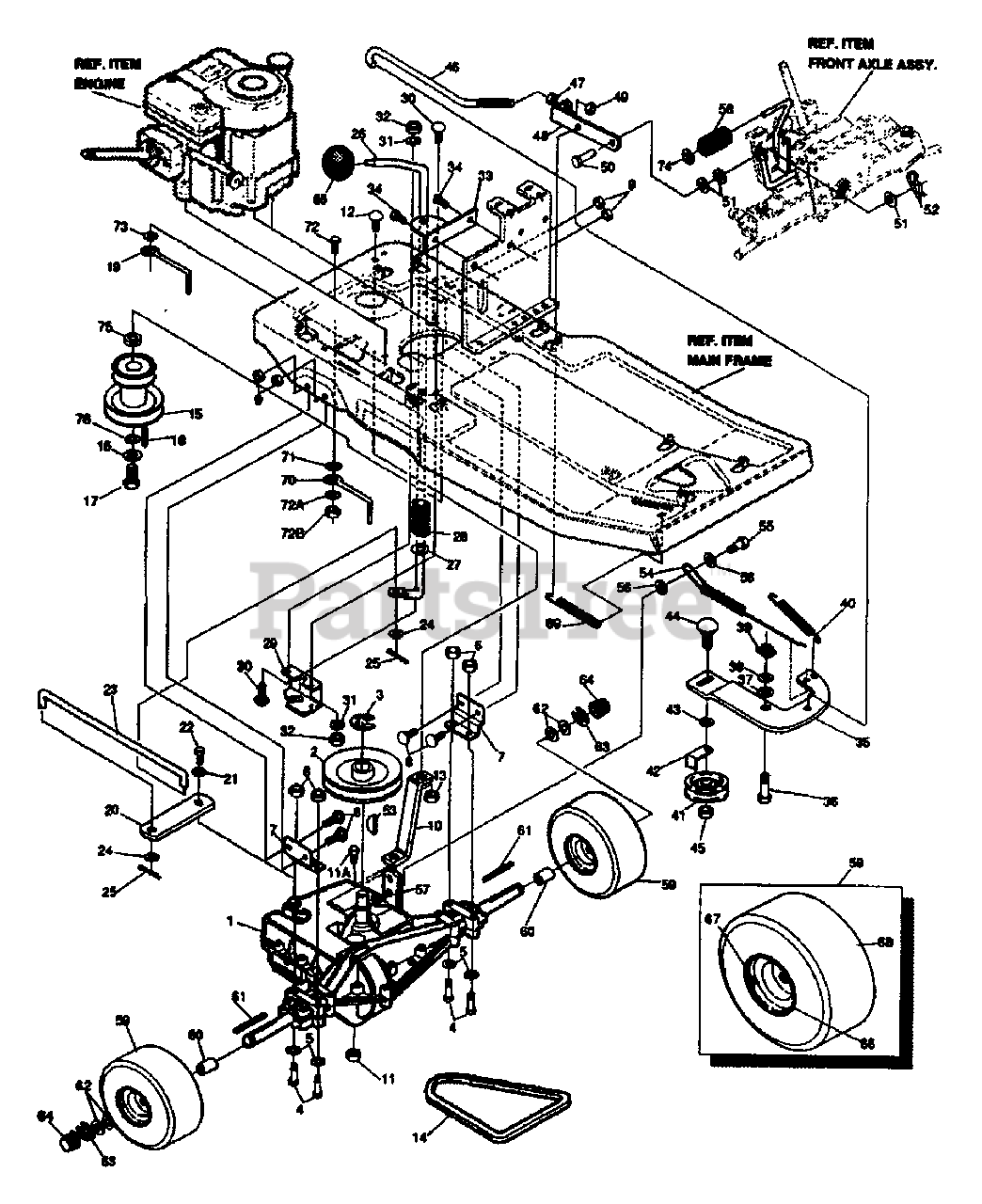

Traction Drive Assembly Parts Diagram

  • Title

1

Transaxle

$

$

Not available

2

Husqvarna 601000149

Pulley, Transaxle

$

$

Not available

3

Husqvarna 601000093

Ring, RETEX .58 x .04 TRU 5100-62

$

$

Not available

4

Husqvarna 601001060

Screw, 5/16-18 x 2.50 HHC GR2

$

$

Not available

5

Husqvarna 601000019

Washer, Flat .344 x .69 x .065

$5.49

$

In Stock, only 1 left!

0

6

Husqvarna 601000059

Nut, 5/16-18 REG HEX CTR LK

$10.99

$

In Stock, only 2 left!

0

7

Husqvarna 601000666

Bracket, Transaxle

$

$

Not available

8

Husqvarna 601000052

Bolt, 5/16-18 x .63 CARR

$

$

Not available

9

Husqvarna 601000059

Nut, 5/18-18 REG HEX CTR LK

$10.99

$

In Stock, only 2 left!

0

10

Husqvarna 601001061

Bracket, Transaxle Support

$

$

Not available

11

Husqvarna 601000059

NUT, 5/16-18 REG HX CTR LK

$10.99

$

In Stock, only 2 left!

0

11A

Husqvarna 601000032

SCREW,5/16-18 X 2.000

$

$

Not available

12

Husqvarna 601000052

Bolt. 5/16-18 x .63 CARR

$

$

Not available

13

Husqvarna 601000059

Nut, 5/16-18 REG HEX CTR LK

$10.99

$

In Stock, only 2 left!

0

14

Husqvarna 601001062

Belt, V 4L

$

$

Not available

15

Husqvarna 601001063

Pulley. ENG 3.315 OFF/3.87 D/3.00 D

$

$

Not available

16

Husqvarna 601000016

Washer, REG SPT LK .459 x .78 x.12

$

$

Not available

17

Husqvarna 601001064

Screw, 7/16-20 x 2.50 HHC

$

$

Not available

18

Husqvarna 601001065

Key, Square .250 SQ x 2.50 Lg

$

$

Not available

19

Husqvarna 601001066

Belt Guide

$

$

Not available

20

Husqvarna 601001067

Shift Lever, Brkt

$

$

Not available

21

Husqvarna 601000622

Washer, .750 x .250

$

$

Not available

22

Husqvarna 601000606

Screw. 1/4-28 x .75 NYL HH CGR8

$

$

Not available

23

Husqvarna 601001068

Rod, Shift Connecting

$

$

Not available

24

Husqvarna 601000020

Washer, Flat .406 x .81 x .065

$

$

Not available

25

Husqvarna 601000930

Pin, Cotter .125 DIA X I.00 LG

$

$

Not available

26

Husqvarna 601001070

Handle, Shift

$

$

Not available

27

Husqvarna 601000021

Washer, Flat .531 x 1.06 x .095

$

$

Not available

28

Husqvarna 601001069

Spring, Shift Lever

$

$

Not available

29

Husqvarna 601001071

Bracket Detent Shift

$

$

Not available

30

Husqvarna 601001072

Bolt, 5/15-18 x .75 CARR

$

$

Not available

31

Husqvarna 601000019

Washer, Flat .344 x .69 x .065

$5.49

$

In Stock, only 1 left!

0

32

Husqvarna 601000059

Nut, 5/16-18 REG HEX CTR LK

$10.99

$

In Stock, only 2 left!

0

33

Husqvarna 601001073

Shift Control Brkt.

$

$

Not available

34

Husqvarna 601000668

Screw, 1/4-20 x .50 WA HH TAP
(Superseded to 601001445)

$

$

Not available

35

Husqvarna 601001074

Arm, Idler, Transaxle Drive

$

$

Not available

36

Husqvarna 601001075

Bolt,.625 x .218 HH SH 5/16-18z

$

$

Not available

37

Husqvarna 601001035

Washer, Flat .635 x 1.31 x .07

$

$

Not available

38

Husqvarna 601000547

Washer, Flat .333 x .87 x .110

$

$

Not available

39

Husqvarna 601001076

Tinnerman Clip

$

$

Not available

40

Husqvarna 601000517

Spring .071 x .62 x 4.37

$

$

Not available

41

Husqvarna 601001017

Pulley, ldler

$

$

Not available

42

Husqvarna 601000518

Retainer, Strap Belt

$

$

Not available

43

Husqvarna 601000106

Washer, Flat .406 x .73 x .063

$

$

Not available

44

Husqvarna 601000551

Bolt, 3/8-16 x 1.50 CARR

$

$

Not available

45

Husqvarna 601000060

Nut, 3/8-16 REG HX CTR LK
(Superseded to 601002407)

$

$

Not available

46

Husqvarna 601001078

Rod Clutch

$

$

Not available

47

Husqvarna 601000103

Nut, 5/16-18 HEX KEPS.

$

$

Not available

48

Husqvarna 601001079

Brkt. Clutch Brake

$

$

Not available

49

Husqvarna 601000059

Nut, 5/16-18 REG HEX CTR LK

$10.99

$

In Stock, only 2 left!

0

50

Husqvarna 601001080

Pin Clevis .312 x .812

$

$

Not available

51

Husqvarna 601000059

Washer, Flat .3444 x .69 x .065

$10.99

$

In Stock, only 2 left!

0

52

Husqvarna 601001031

Pin, Hair .091 DIA x 1.66 LG

$

$

Not available

53

Husqvarna 601000129

Key, Woodruff

$

$

Not available

54

Husqvarna 601001081

Spring, Brake

$

$

Not available

55

Husqvarna 601000099

Bolt, .500 x .375 HH SH 5/16-18

$

$

Not available

56

Husqvarna 601000322

Washer, Flat .515 x 1.31 x .09

$

$

Not available

57

Husqvarna 601000059

Nut, 5/16-18 REG HEX CTR LK

$10.99

$

In Stock, only 2 left!

0

58

Husqvarna 601001082

Pedal Pad

$

$

Not available

59

Tire & Rim, Pnuematic

$

$

Not available

60

Husqvarna 601001083

Spacer,

$

$

Not available

61

Husqvarna 601001084

Key, Square .187 SQ x 2.25 LG

$

$

Not available

62

Husqvarna 601001085

Washer, Flat .755 x 1.53 x .07

$

$

Not available

63

Husqvarna 601000525

Ring, RET EX .57 x .05 TRU 5133-75

$

$

Not available

64

Husqvarna 601001086

Cap, Hub

$

$

Not available

65

Husqvarna 601001087

Shift Knob

$

$

Not available

66

Husqvarna 601001088

Wheel

$

$

Not available

67

Husqvarna 601000096

Valve Stem

$

$

Not available

68

Tire 16 x 6.50 - 8 Turf

$

$

Not available

69

Husqvarna 601001089

Spring, 536 OD x .047 x 3.4

$

$

Not available

70

Husqvarna 601001066

Belt Guide

$

$

Not available

71

Husqvarna 601000056

Washer. Exlk .384 X .69 X .04

$

$

Not available

72

Husqvarna 601000029

Screw, 5/16-18 X 1.000

$

$

Not available

72A

Husqvarna 601000020

Washer, Flat .406 x .81 X .065

$

$

Not available

72B

Husqvarna 601000059

Nut, 5/16-18 X .75

$10.99

$

In Stock, only 2 left!

0

73

Husqvarna 601000056

Washer, EX LK .384 x .69 x .04

$

$

Not available

74

Husqvarna 601001090

Cap, Push Nut

$

$

Not available

75

Husqvarna 601001091

Spacer, Engine Sheave

$

$

Not available

76

Husqvarna 601000613

Washer, .980 ID X 1.380 OD X .437 Pilot

$

$

Not available
