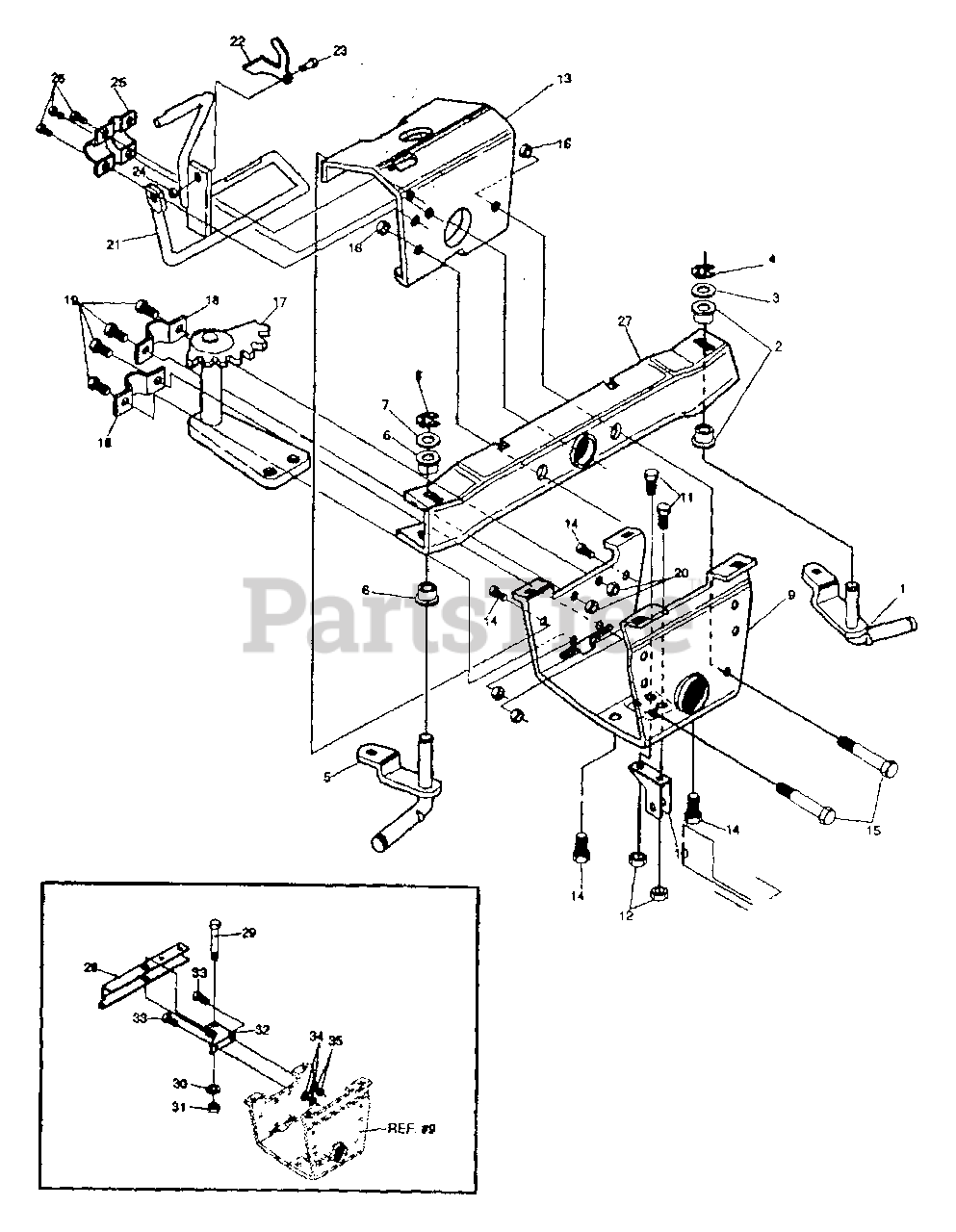

R 800 - Husqvarna Swedish Riding Mower (1993-04) Pre-Paint Front Axle Assembly Parts Diagram

Swedish Riding Mower

Pre-Paint Front Axle Assembly Parts Diagram

  • Title

1

Husqvarna 601001033

Assembly Spindle L.H.

$

$

Not available

2

Husqvarna 601001034

Bushing, Spindle

$

$

Not available

3

Husqvarna 601001035

Washer, Flat.035 x 1.31 x .07

$

$

Not available

4

Husqvarna 601001035

Ring, Ret E..48 x .04 TRU 5133-62

$

$

Not available

5

Husqvarna 601001037

Assembly Spindle, R.N.

$

$

Not available

6

Husqvarna 601001034

Bushing, Spindle

$

$

Not available

7

Husqvarna 601001035

Washer, Flat.635 x 1.31 x .07

$

$

Not available

8

Husqvarna 601001036

Ring, Retaining E .48 x .04TRU 5133-62

$

$

Not available

9

Husqvarna 601001038

Bracket. Axle, Outer Front

$

$

Not available

10

Husqvarna 601001039

Hanger

$

$

Not available

11

Husqvarna 601001072

Screw, 5/16-18 x.63 HHC GR2

$

$

Not available

12

Husqvarna 601001059

Nut, 5/16-18 Reg H Ctr Lk

$

$

Not available

13

Husqvarna 601001040

Axle Bracket, Inner

$

$

Not available

14

Husqvarna 601000519

Screw, 5/18-18 x .50 WAHH Tap

$

$

Not available

15

Husqvarna 601001041

Screw, 3/8-18 x 2.75 H HC GR 2

$

$

Not available

16

Husqvarna 601000060

Nut, 3/8-16 Reg HX Clr Lk
(Superseded to 601002407)

$

$

Not available

17

Husqvarna 601001042

Steering Assembly

$

$

Not available

18

Husqvarna 601001043

Clamp, .625 Dia.

$

$

Not available

19

Husqvarna 601000072

Screw, 5/16-18 a .63 H HC GR2
(Superseded to 601000073)

$

$

Not available

20

Husqvarna 601000059

Nut, 5/16-18 Reg Hex CO Lk

$6.99

$

In Stock, only 2 left!

0

21

Husqvarna 601001044

Brake Arm Assembly

$

$

Not available

22

Husqvarna 601001045

Latch, Parking Brake

$

$

Not available

23

Husqvarna 601001046

Bolt, .373 x .140 H H SH 1/4-20

$

$

Not available

24

Husqvarna 601000062

Nut, 1/4-20 Reg H Ctr Lk
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

25

Husqvarna 601004047

Bracket, Clutch and Brake

$

$

Not available

26

Husqvarna 601000519

Screw, 5/16-18 x.50 WA H H Tap

$

$

Not available

27

Front Axle Assembly

$

$

Not available

28

Husqvarna 601001048

Rocker Arm Mower Engagement

$

$

Not available

29

Husqvarna 601001049

Bolt 500 x 1.18 HHC 3/8-16

$

$

Not available

30

Husqvarna 601000656

Washer,Flat .390 x 1.25 x .119

$

$

Not available

31

Husqvarna 601000060

Nut, 38-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

32

Husqvarna 601001050

Hanger

$

$

Not available

33

Husqvarna 601000072

Screw, 5/16-18x.63 HHC GRD 2
(Superseded to 601000073)

$

$

Not available

34

Husqvarna 601000019

Washer, Flat .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

35

Husqvarna 601000059

Nut, 5/16-18 REGHXCTRLK

$6.99

$

In Stock, only 2 left!

0
