R 800 - Husqvarna Swedish Riding Mower (1993-04) Pre-Paint Deck Assembly Parts Diagram

Swedish Riding Mower

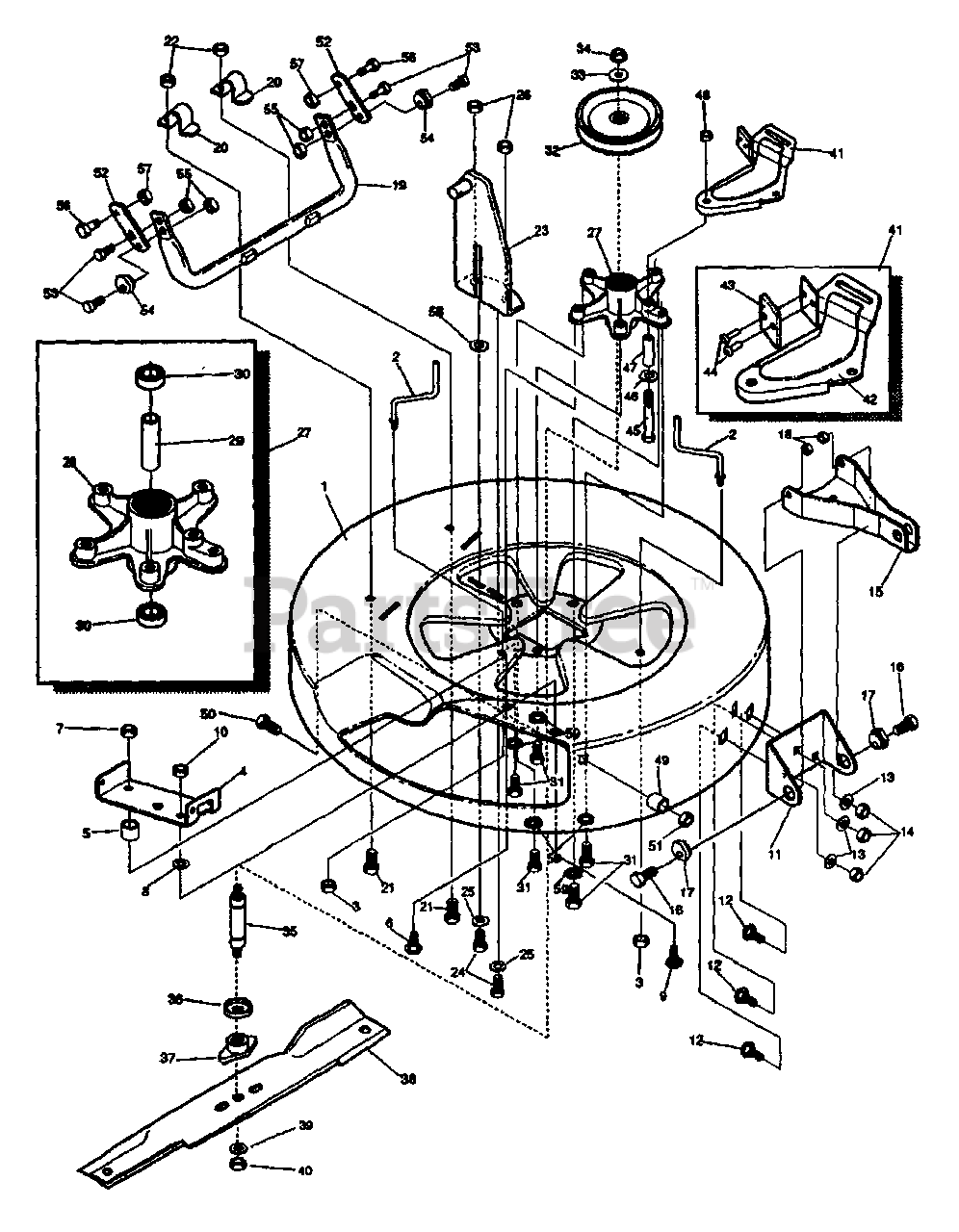

Pre-Paint Deck Assembly Parts Diagram

  • Title

1

Husqvarna 601001115

DECK, MOWER 30 lNCH

$

$

Not available

2

Husqvarna 601001116

GUIDE, BELT 5/18-18 THD

$

$

Not available

3

Husqvarna 601000059

NUT, 5/16-18 REG HEX CTR LK

$6.99

$

In Stock, only 2 left!

0

4

Husqvarna 601000504

BRACKET CHUTE MOUNT

$

$

Not available

5

Husqvarna 601001117

SPACER..344 X 1.00 X .500

$

$

Not available

6

Husqvarna 601000007

BOLT, 5/16-18 X 1.25 CARR

$

$

Not available

7

Husqvarna 601000059

NUT, 5/16-18 REG HEX CTR LK

$6.99

$

In Stock, only 2 left!

0

8

Husqvarna 601000547

WASHER, FLAT .333 X .87 X.119 Z

$

$

Not available

9

Husqvarna 601001072

BOLT, 5/16-18 X .75 CARR GR2 Z

$

$

Not available

10

Husqvarna 601000059

NUT, 5/16-18 REG HEX CTR LK

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 601001118

BRACKET, MOUNTING, FRONT

$

$

Not available

12

Husqvarna 601000786

BOLT, 5/16-18 X .63 CARR

$4.99

$

In Stock, only 3 left!

0

13

Husqvarna 601000019

WASHER, FLAT .344 X .69 X .065

$3.49

$

In Stock, only 1 left!

0

14

Husqvarna 601000059

NUT, 5/16-18 REG HEX CTR LK

$6.99

$

In Stock, only 2 left!

0

15

Husqvarna 601001119

BRACKET, BAR, TOW, FRONT

$

$

Not available

16

Husqvarna 601000029

SCREW, 5/16-18 X 1.00 HHC

$

$

Not available

17

Husqvarna 601000639

ADJUSTING NUT

$

$

Not available

18

Husqvarna 601000059

NUT, 5/16-18 REG HEX CTR LK

$6.99

$

In Stock, only 2 left!

0

19

Husqvarna 601001120

ASSY., TUBE, PIVOT

$

$

Not available

20

Husqvarna 601001121

SUPPORT,PIVOT TUBE

$

$

Not available

21

Husqvarna 601000073

SCREW, 5/16-18 X .75 HHC

$

$

Not available

22

Husqvarna 601000059

NUT, 5/16-18 REG HEX CTR LK

$6.99

$

In Stock, only 2 left!

0

23

Husqvarna 601001122

ASSY LIFT BRKT

$

$

Not available

24

Husqvarna 601000073

SCREW, 5/16-18 X .75 HHC GR5 Z

$

$

Not available

25

Husqvarna 601000019

WASHER, FLAT .344 X .69 X .065

$3.49

$

In Stock, only 1 left!

0

26

Husqvarna 601000059

NUT, 5/16-18 REG HEX CTR LK

$6.99

$

In Stock, only 2 left!

0

27

Husqvarna 601001123

ASSEMBLY, QUILL

$

$

Not available

28

Husqvarna 601001124

QUILL, MACHINED CASTING

$

$

Not available

29

Husqvarna 601001125

TUBE, SPACER

$

$

Not available

30

Husqvarna 601001126

BEARING, BALL 6204-2RS-Q
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

31

Husqvarna 601000570

SCREW, 5/16-18 X .88 WA HH TAP

$

$

Not available

32

Husqvarna 601001127

PULLEY ASSEMBLY

$

$

Not available

33

Husqvarna 601000094

WASHER, FLAT .515 X 1.38 X .119 PL

$

$

Not available

34

Husqvarna 601000061

NUT, 1/2-13 REG HX CTR LK

$

$

Not available

35

Husqvarna 601001128

SHAFT, QUILL 30" MOWER

$

$

Not available

36

Husqvarna 601001129

SHIELD, DUST, BEARING

$

$

Not available

37

Husqvarna 601001130

HUB. BLADE ADAPTOR

$

$

Not available

38

Husqvarna 601001131

BLADE, 30" TD MOWER 1.4 WING

$

$

Not available

39

Husqvarna 601000094

WASHER, FLAT .515 X 1.88 X .119 PL

$

$

Not available

40

Husqvarna 601000061

NUT, 1/2-13 REG HX CTR LK

$

$

Not available

41

Husqvarna 601001132

BRACKET, IDLER ASSEMBLY

$

$

Not available

42

Husqvarna 601001133

BRACKET, ARM, IDLER

$

$

Not available

43

Husqvarna 601000305

BRAKE PAD - HARD - 232AF

$

$

Not available

44

Husqvarna 601000535

RIVET, OVSET .187 DIA X .50 LG

$

$

Not available

45

Husqvarna 601000777

SCREW, 5/16-18 X 2.50 HHC

$

$

Not available

46

Husqvarna 601000547

WASHER, FLAT .333 X .87 X.119

$

$

Not available

47

Husqvarna 601001134

SPACER, .322 X .625 X 1.810

$

$

Not available

48

Husqvarna 601000540

NUT, 5/16-18 HWD FL CTR LK

$

$

Not available

49

Husqvarna 601000568

SPACER

$

$

Not available

50

Husqvarna 601001072

BOLT, 5/16-18 X .75 CARR

$

$

Not available

51

Husqvarna 601000059

NUT, 5/16-18 REG HEX CTR LK

$6.99

$

In Stock, only 2 left!

0

52

Husqvarna 601001135

BRACKET, BAR, REAR STABILI

$

$

Not available

53

Husqvarna 601000029

SCREW, 5/16-18 X 1.00 HHC

$

$

Not available

54

Husqvarna 601000639

ADJUSTING NUT

$

$

Not available

55

Husqvarna 601000059

NUT, 5/16-18 REG HEX CTR LK

$6.99

$

In Stock, only 2 left!

0

56

Husqvarna 601001136

BOLT, .500 X .437 HHSH 3/8-16

$

$

Not available

57

Husqvarna 601000060

NUT, 3/8-16 REG HX CTR LK
(Superseded to 601002407)

$

$

Not available

58

Husqvarna 601000547

WASHER, FLAT .833 X .87 X 119 Z

$

$

Not available

59

Husqvarna 601000055

WASHER, EXLK .320 X .61 X .03

$

$

Not available
