R 800 - Husqvarna Swedish Riding Mower (1993-04) Mower Suspension Assembly Parts Diagram

Swedish Riding Mower

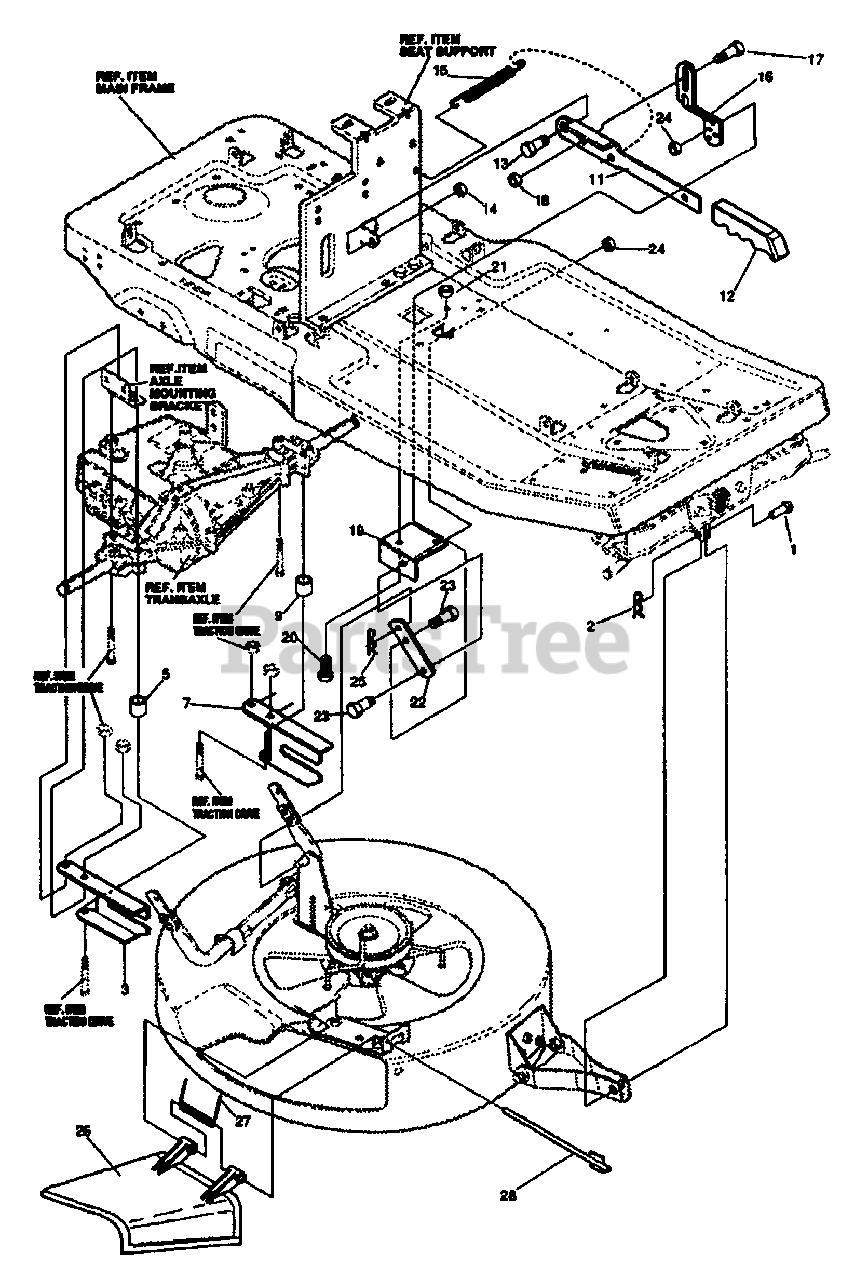

Mower Suspension Assembly Parts Diagram

  • Title

1

Husqvarna 601001020

PIN, .495 X 1.750 CLEVIS-SHORT

$

$

Not available

2

Husqvarna 601000604

PIN, HAIR .091 DIA X 1.62LG

$

$

Not available

3

Husqvarna 601001021

BRACKET, REAR SUPPORT RH

$

$

Not available

5

Husqvarna 601001022

SPACER .328 X .750 X .312

$

$

Not available

7

Husqvarna 601001023

BRACKET, REAR SUPPORT LH

$

$

Not available

9

Husqvarna 601001022

SPACE .320 X .750 X .312

$

$

Not available

11

Husqvarna 601001024

HANDLE, HEIGHT ADJUST

$

$

Not available

12

Husqvarna 601001025

GRIP, HANDLE, LIFT

$

$

Not available

13

Husqvarna 601001026

BOLT, .500 X .345 HHSH 3/8-16

$

$

Not available

14

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

15

Husqvarna 601000517

SPRING .071 X .62 X 4.37

$

$

Not available

16

Husqvarna 601001027

BRKT, LINK UPPER 30" MOW

$

$

Not available

17

Husqvarna 601001026

BOLT, .500 X .345 HHSH 3/8-16

$

$

Not available

18

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

19

Husqvarna 601001028

BRACKET, RER FRAME

$

$

Not available

20

Husqvarna 601001018

SCREW, 5/16-18 X .88 HHC

$

$

Not available

21

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

In Stock, only 2 left!

0

22

Husqvarna 601001029

BRKT, LINK LOWER 30" MOW

$

$

Not available

23

Husqvarna 601001030

BOLT, .500 X .225 HHSH 5/16-18

$

$

Not available

24

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

In Stock, only 2 left!

0

25

Husqvarna 601001031

PIN, HAIR .091 DIA X 1.62LG

$

$

Not available

26

Husqvarna 601001032

CHUTE DEFLECTOR 30" DECK

$

$

Not available

27

Husqvarna 601000466

SPRING TORSION CHUTE DEF.

$

$

Not available

28

Husqvarna 601000224

ROD, PIVOT 40" DECK .312 x 7.25

$

$

Not available
