R 800 - Husqvarna Swedish Riding Mower (1993-04) Electrical Assembly Parts Diagram

Swedish Riding Mower

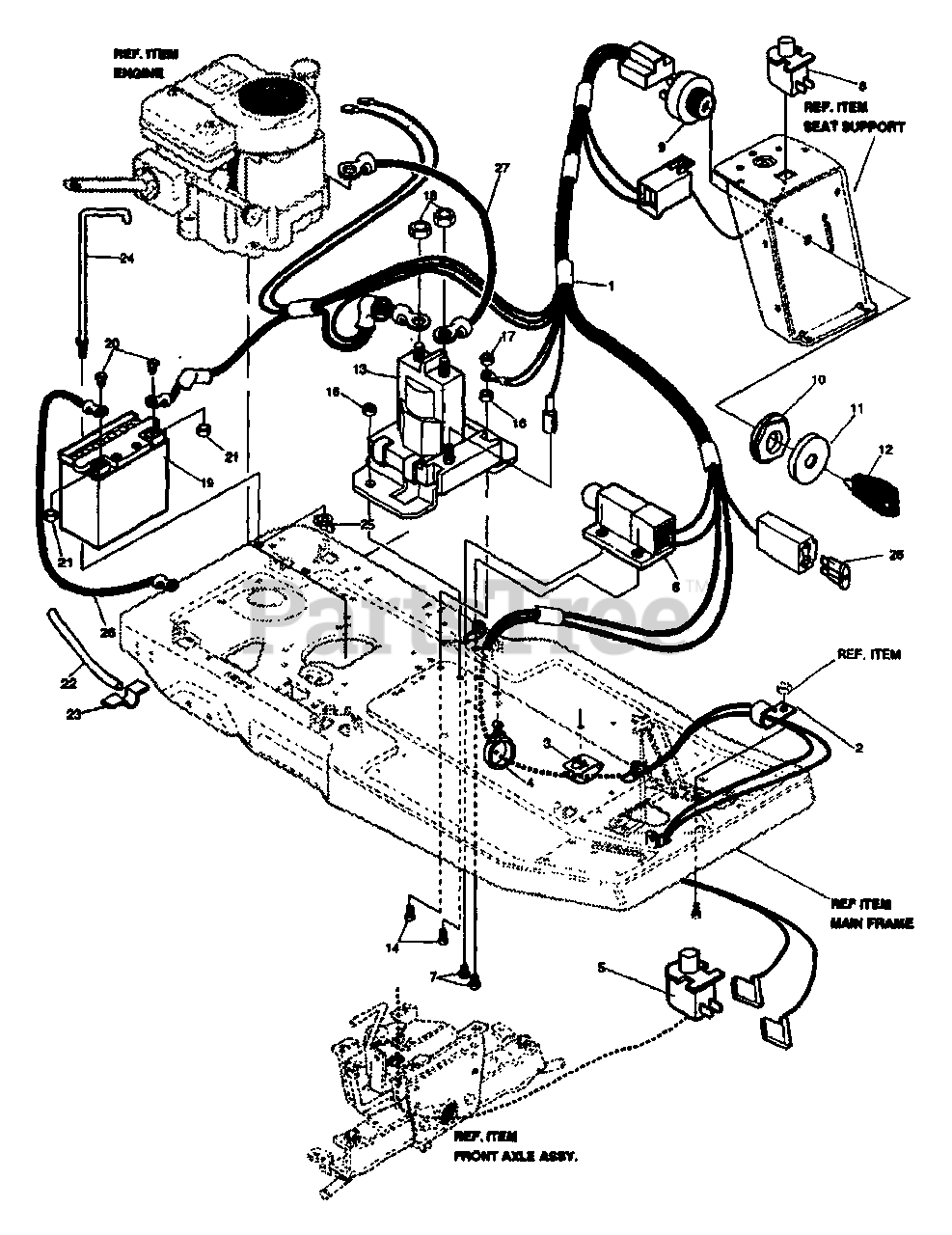

Electrical Assembly Parts Diagram

  • Title

1

Husqvarna 601001137

HARNESS, ELEC RER C2 8-11 B&S

$

$

Not available

2

Husqvarna 601000631

RETAINER, .31 ID X .62 X .03 WIRE

$

$

Not available

3

Husqvarna 601001138

CLIP, TRW #C4490-022-27

$

$

Not available

4

Husqvarna 601000689

CLIP, WIRE ROUTING, SNAP-IN

$

$

Not available

5

Husqvarna 601001139

SWITCH, SNAP MNT NO. .055/.116

$

$

Not available

6

Husqvarna 601000691

SWITCH, SCR MNT DP NC

$

$

Not available

7

Husqvarna 601000626

SCREW, #12 X.50 PH PNH TAP

$

$

Not available

8

Husqvarna 601001143

SWITCH,SNAP MNT NC .140

$

$

Not available

9

Husqvarna 601001141

SWITCH, IGNITION W/O LIGHTS

$

$

Not available

10

Husqvarna 601000111

NUT, 5/8-32 IGN SWIT

$

$

Not available

11

Husqvarna 601000112

BOOT,SWITCH

$

$

Not available

12

Husqvarna 601000123

KEY, IGNITlON SWITCH

$

$

Not available

13

Husqvarna 601000592

SOLENOID. NEW CLUM

$

$

Not available

14

Husqvarna 601000083

SCREW, 1/4-20 X.75 HX SEM MA

$

$

Not available

16

Husqvarna 601000062

NUT, 1/4-20 REG HEX CTR LK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

17

Husqvarna 601000102

NUT, 1/4-20 REG HEX KEPS

$

$

Not available

18

Husqvarna 601001142

NUT, 5/16-24 HKEPS

$

$

Not available

19

Husqvarna 601001143

BATTERY, YUASA 12N14

$

$

Not available

20

Husqvarna 601001144

SCR., METRIC, 6 X 1 X 11

$

$

Not available

21

NUT, METRIC, 6 X 1 HEX

$

$

Not available

22

Husqvarna 601001145

DRAIN TUBE, BATT

$

$

Not available

23

Husqvarna 601000534

CUP, 1.880 LG .255 ID PRESS WIRE

$

$

Not available

24

Husqvarna 601001146

HOLD DOWN BRKT

$

$

Not available

25

Husqvarna 601001147

NUT, WING 1/4-20 NYLON

$

$

Not available

26

Husqvarna 601000596

WIRE, GROUND, 12.5"

$

$

Not available

27

Husqvarna 601001148

WIRE. STARTER,

$

$

Not available

28

Husqvarna 601000128

FUSE SPADE TYPE 32V 15A

$

$

Not available
