R-8 (990918) - Homelite Tiller, 8hp Worm Housing and Tines Group (3837I03) Parts Diagram

Tiller, 8hp

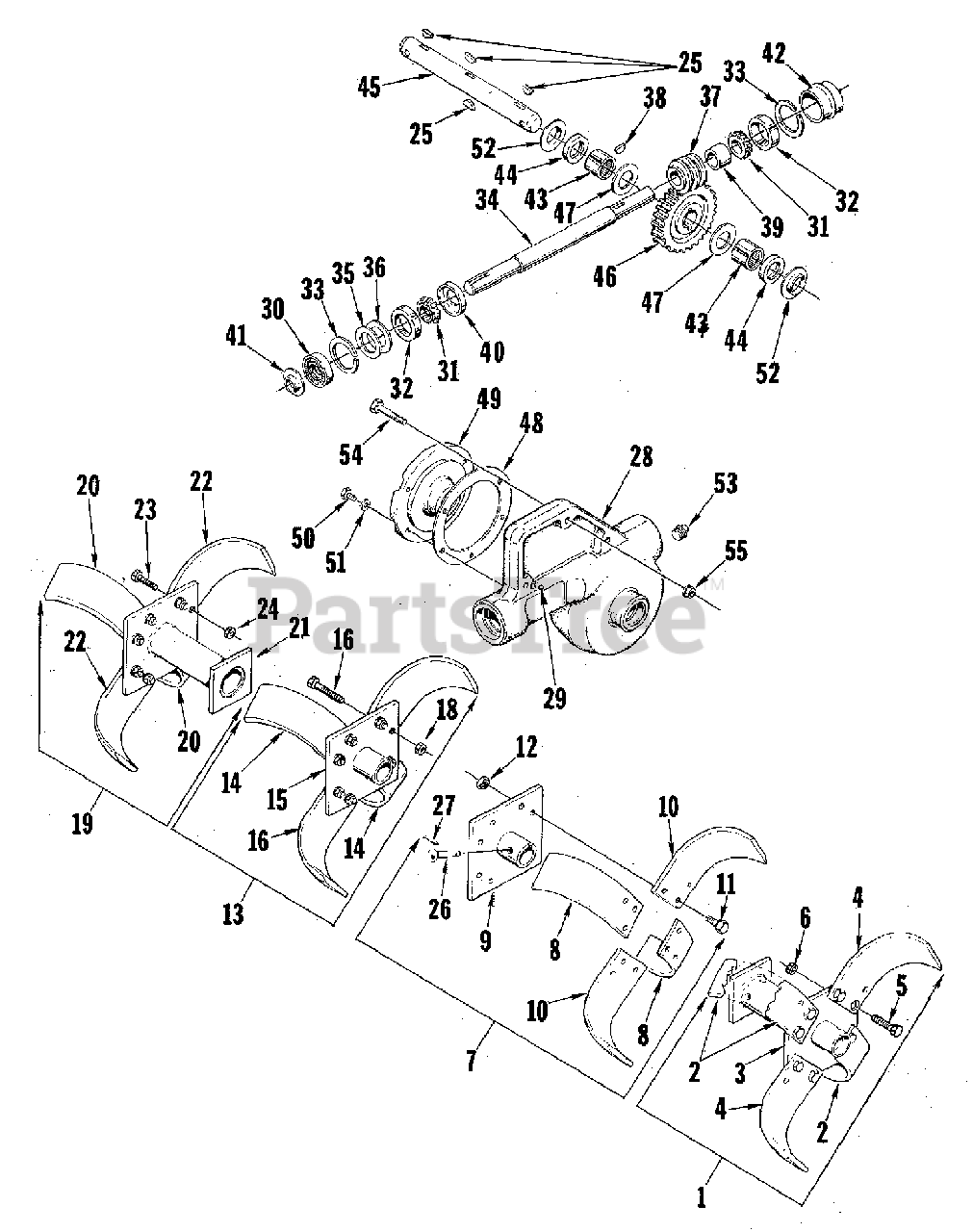

Worm Housing and Tines Group (3837I03) Parts Diagram

  • Title

1

Simplicity LM-01764-69

BLADE ASSEMBLY, Tine, Outer, (R.H.)

$

$

Not available

2

Simplicity LM-01725-12

BLADE, Tine (L.H.)

$

$

Not available

3

Simplicity LM-01762-27

PLATE, Tine, Outer

$

$

Not available

4

Simplicity LM-01725-11

BLADE, Tine (R.H.)

$

$

Not available

5

Simplicity LM-07150-38

SCREW, Hex, Cap, 3/8-16 x 1"

$

$

Not available

6

Simplicity LM-07180-74

NUT, Hex, 3/8-16

$

$

Not available

7

Simplicity LM-01764-67

BLADE ASSEMBLY, Tine, Inner (R.H.)

$

$

Not available

8

Simplicity LM-01725-12

BLADE, Tine (L.H.)

$

$

Not available

9

Simplicity LM-01762-25

PLATE, Tine, Outer

$

$

Not available

10

Simplicity LM-01725-11

BLADE, Tine (R.H.)

$

$

Not available

11

Simplicity LM-07150-38

SCREW, Hex, Cap, 3/8-16 x 1"

$

$

Not available

12

Simplicity LM-07180-74

NUT, Hex, 3/8-16

$

$

Not available

13

Simplicity LM-01764-66

BLADE ASSEMBLY, Tine, Outer, (L.H.)

$

$

Not available

14

Simplicity LM-01725-12

BLADE, Tine (L.H.)

$

$

Not available

15

Simplicity LM-01762-25

PLATE, Tine, Outer

$

$

Not available

16

Simplicity LM-01725-11

BLADE, Tine (R.H.)

$

$

Not available

17

Simplicity LM-07150-38

SCREW, Hex, Cap, 3/8-16 x 1"

$

$

Not available

18

Simplicity LM-07180-74

NUT, Hex, 3/8-16

$

$

Not available

19

Simplicity LM-01764-68

BLADE ASSEMBLY, Tine, Outer, (L.H.)

$

$

Not available

20

Simplicity LM-01725-12

BLADE, Tine (L.H.)

$

$

Not available

21

Simplicity LM-01762-27

PLATE, Tine, Outer

$

$

Not available

22

Simplicity LM-01725-11

BLADE, Tine (R.H.)

$

$

Not available

23

Simplicity LM-07150-38

SCREW, Hex, Cap, 3/8-16 x 1"

$

$

Not available

24

Simplicity LM-07180-74

NUT, Hex, 3/8-16

$

$

Not available

25

Simplicity LM-09177-55

KEY, Woodruff, #91

$

$

Not available

26

Simplicity LM-01180-53

PIN

$

$

Not available

27

Simplicity LM-09184-51

PIN, Cotter

$

$

Not available

28

Simplicity LM-01758-71

HOUSING, Worm Drive

$

$

Not available

29

Simplicity LM-01184-62

PLUG, Vent

$

$

Not available

30

Simplicity LM-01183-93

SEAL, Oil

$

$

Not available

31

Simplicity LM-01544-86

BEARING, Roller

$

$

Not available

32

Simplicity LM-01543-93

BEARING, Cup

$

$

Not available

33

Simplicity LM-01183-96

RING, Snap

$

$

Not available

34

Simplicity LM-01708-88

SHAFT, Worm

$

$

Not available

35

Simplicity LM-01708-85

RING, Backing

$

$

Not available

36

Simplicity LM-01717-62

RING, Backing

$

$

Not available

37

Simplicity LM-01760-13

WORM, Right Hand

$

$

Not available

38

Simplicity LM-09111-71

KEY, Hi-Pro, 3/16 x 7/8

$

$

Not available

39

Simplicity LM-01183-98

SPACER

$

$

Not available

40

Simplicity LM-01183-99

CUP

$

$

Not available

41

Simplicity LM-01184-00

SHIELD

$

$

Not available

42

Simplicity LM-01544-87

CAP, Hub

$

$

Not available

43

Simplicity LM-01180-20

BEARING, Needle

$

$

Not available

44

Simplicity LM-01181-18

SEAL, Oil

$

$

Not available

45

Simplicity LM-01767-24

SHAFT, Worm Gear

$

$

Not available

46

Simplicity LM-01760-11

GEAR, Worm (R.H.)

$

$

Not available

47

Simplicity LM-01183-15

WASHER, Thrust

$

$

Not available

48

Simplicity LM-01758-72

GASKET

$

$

Not available

49

Simplicity LM-01758-73

COVER

$

$

Not available

50

Simplicity LM-09219-59

SCREW, Hex Cap, 1/4-20 x 5/8

$

$

Not available

51

Simplicity LM-09169-64

WASHER, Lock, 1/4"

$

$

Not available

52

Simplicity LM-01184-03

SHIELD

$

$

Not available

53

Simplicity LM-09016-53

PLUG, Pipe, 3/8"

$

$

Not available

54

Simplicity LM-07150-45

SCREW, Hex Cap, 3/8-24 x 1-3/4"

$

$

Not available

55

Simplicity LM-07180-64

NUT, Flange

$

$

Not available
