R-8 (990918) - Homelite Tiller, 8hp Clutch and Belts Group (3837I02) Parts Diagram

Tiller, 8hp

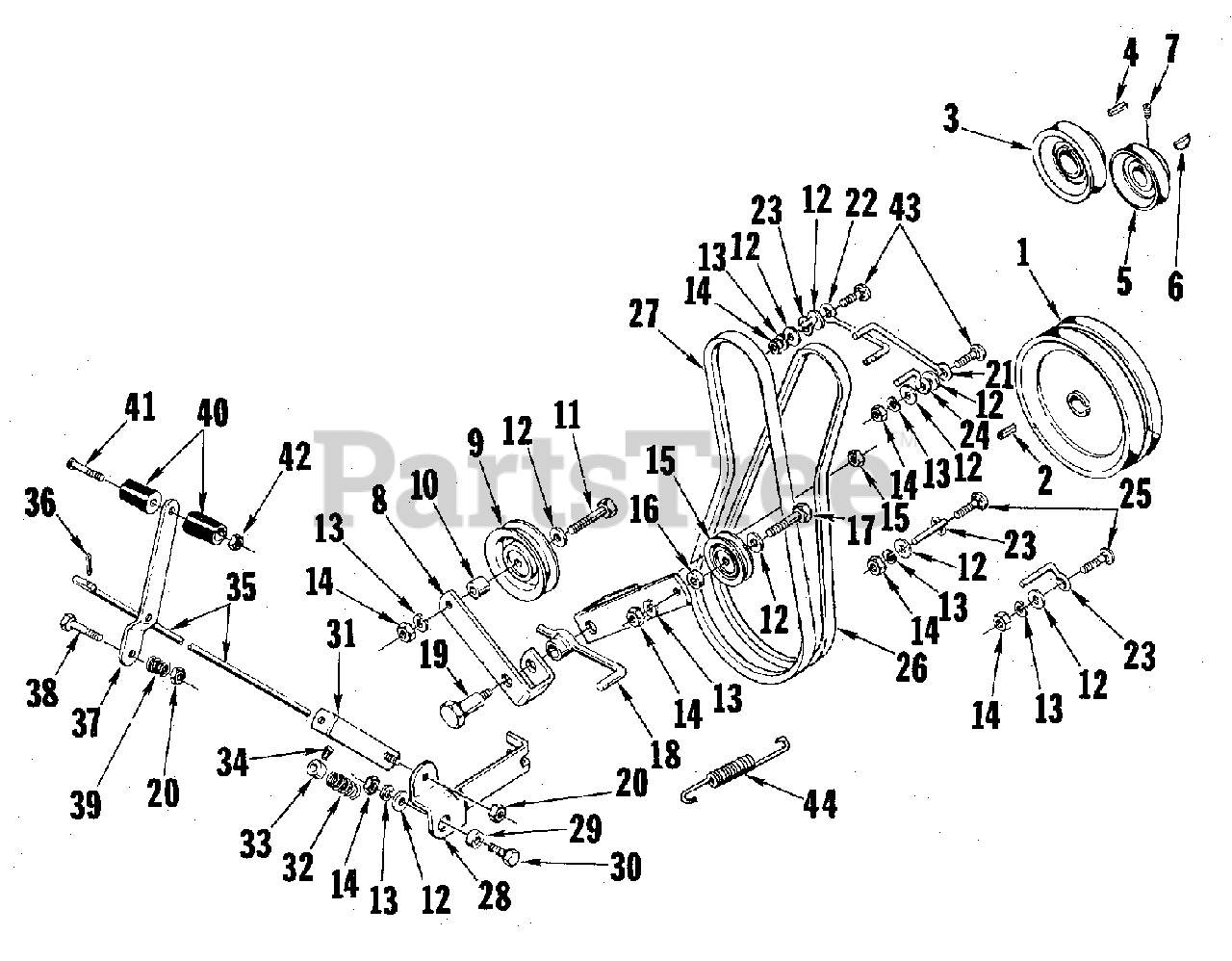

Clutch and Belts Group (3837I02) Parts Diagram

  • Title
1

Simplicity LM-01759-64

PULLEY, Driven

$

$

Not available

$

$

Not available

3

Simplicity LM-01763-28

PULLEY, Engine

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

7

Simplicity LM-09286-91

SCREW, Set, 5/16-18 x 5/16"

$

$

Not available

8

Simplicity LM-01759-62

LEVER, Idler

$

$

Not available

9

Simplicity LM-01545-34

PULLEY, Idler

$

$

Not available

$

$

Not available

11

Simplicity LM-09193-61

SCREW, Hex, Cap, 3/8-16 x 1-3/4"

$

$

Not available

12

Simplicity LM-09176-42

WASHER, Plain, 5/16"

$

$

Not available

13

Simplicity LM-09169-65

WASHER, Lock, 3/8"

$

$

Not available

14

Simplicity LM-09169-50

NUT, Hex, Full, 3/8-16

$

$

Not available

15

Simplicity LM-01184-14

PULLEY, Idler

$

$

Not available

$

$

Not available

17

Simplicity LM-09193-60

SCREW, Hex, Cap, 3/8-16 x 1-1/2

$

$

Not available

18

Simplicity LM-01761-92

PIVOT ASSEMBLY

$

$

Not available

19

$

$

Not available

20

Simplicity LM-09233-62

NUT, Hex, Full Lock, 5/16-18

$

$

Not available

21

$

$

Not available

22

$

$

Not available

23

$

$

Not available

24

$

$

Not available

25

Simplicity LM-09222-49

BOLT, Carriage, 3/8-16 x 1"

$

$

Not available

26

Simplicity LM-01769-17

BELT, "V" (Reverse)

$

$

Not available

27

Simplicity LM-01763-93

BELT, "V" (Forward)

$

$

Not available

28

$

$

Not available

$

$

Not available

30

Simplicity LM-09212-10

SCREW, Hex, Cap, 3/8-16 x 1"

$

$

Not available

31

Simplicity LM-01631-00

ROD GUIDE ASSEMBLY

$

$

Not available

$

$

Not available

33

$

$

Not available

34

Simplicity LM-09038-07

SCREW, Set, 1/4-20 x 3/8"

$

$

Not available

$

$

Not available

36

Simplicity LM-09184-47

PIN, Cotter, 3/32 x 3/4

$

$

Not available

$

$

Not available

38

Simplicity LM-09199-33

SCREW, Hex, Cap, 5/16-18 x 1-1/2"

$

$

Not available

$

$

Not available

$

$

Not available

41

Simplicity LM-07125-01

SCREW, Machine, 1/4-20 x 1-1/2"

$

$

Not available

42

Simplicity LM-09233-58

NUT, Hex, 1/4-20

$

$

Not available

43

Simplicity LM-07030-02

BOLT, Carriage, 3/8-16 x 1-1/4"

$

$

Not available

44

Simplicity LM-01571-72

SPRING, Extension

$

$

Not available
