R 7271 AE - Lawn-Boy Walk-Behind Mower (SN: C00000001 - C99999999) (1984) ENGINE GROUP MODELS: R7271AE Parts Diagram

Walk-Behind Mower

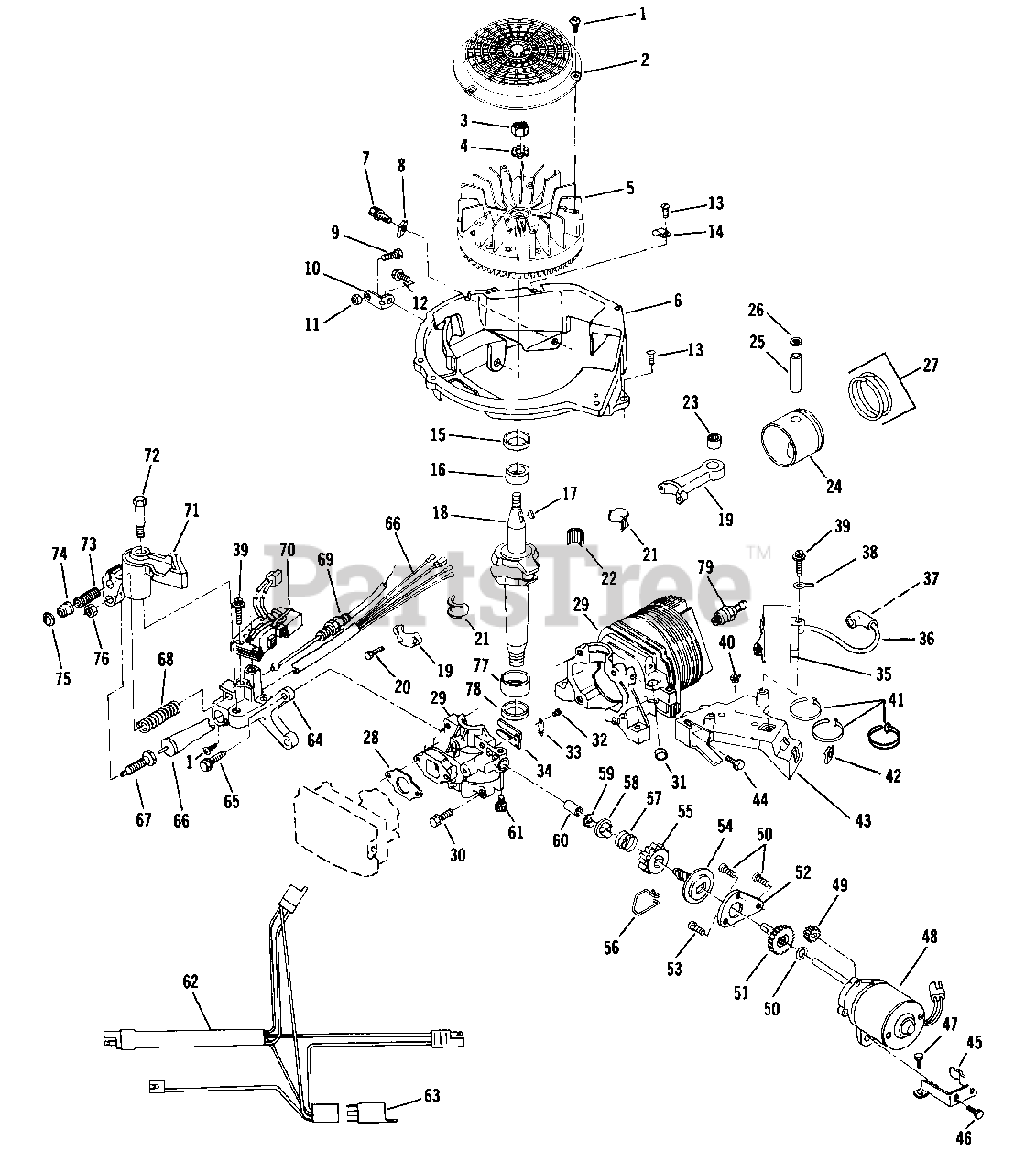

ENGINE GROUP MODELS: R7271AE Parts Diagram

  • Title

+

Lawn-Boy 318535

Adhesive

$

$

Currently unavailable

+

Lawn-Boy 610372

Sealant

$27.99

$

Usually ships in 3-6 days

0

+

Lawn-Boy 682677

Piston and Conn. Rod Assembly
(Superseded to 92-4925)

$

$

Not available

+

Lawn-Boy 682806

Electric Starter Assembly

$799.99

$

Usually ships in 3-6 days

0

1

Lawn-Boy 606537

Screw-Flywheel Screen and Switch

$2.49

$

In Stock, only 4 left!

0

2

Lawn-Boy 611375

Screen-Flywheel

$

$

Not available

3

Lawn-Boy 130743

Nut-Flywheel

$3.49

$

In Stock, Qty 6

0

4

Lawn-Boy 316959

Lockwasher
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 682700

Flywheel Assembly
(Superseded to 683580)

$318.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 611215

Base-Shroud

$

$

Not available

7

Lawn-Boy 609947

Screw

$10.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611191

Clip-"J"

$

$

Not available

9

Lawn-Boy 603014

Bolt-Brace-Alt. Brkt.

$

$

Not available

10

Lawn-Boy 611512

Brace-Alt. Bracket

$

$

Not available

11

Lawn-Boy 608311

Locknut-Brace-Alt. Brkt.

$3.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 307028

Screw
(Superseded to 614343)

$3.49

$

In Stock, only 4 left!

0

13

Lawn-Boy 609808

Screw-Shd. Base to C.D. Brkt. and Clamp to Shd. B.

$11.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 611081

Clamp

$

$

Not available

15

Lawn-Boy 605020

Oil Seal-Upper
(Superseded to 611396)

$6.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 681830

Bearing-Upper

$41.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 607199

Key-Flywheel

$5.49

$

In Stock, Qty 9

0

18

Lawn-Boy 609421

Crankshaft
(Superseded to 94-5713)

$292.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 682970

Conn. Rod Assembly
(Superseded to 92-4921)

$241.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 611393

Screw-Cap

$22.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 677982

Liner-Split

$46.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 677963

Needle Bearing Set
(Superseded to 683911)

$23.99

$

In Stock, Qty 5

0

23

Lawn-Boy 679144

Bearing Assembly

$

$

Not available

24

Lawn-Boy 682986

Piston and Ring Assembly
(Superseded to 92-4923)

$

$

Not available

25

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

$11.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 303712

Retaining Ring

$3.49

$

In Stock, Qty 11

0

27

Lawn-Boy 681737

Ring Set

$

$

Not available

28

Lawn-Boy 609476

Gasket-Carb. to Crankcase Cover

$

$

Not available

29

Lawn-Boy 683026

Cyl. and Crankcase Cov. Ass'y.
(Superseded to 683702)

$

$

Not available

30

Lawn-Boy 609918

Screw-Cover to Crankcase

$3.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 609123

Plug

$3.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 303761

Screw-Reed to C'case Cover
(Superseded to 612872)

$2.49

$

In Stock, Qty 5

0

33

Lawn-Boy 602587

Plate-Reed Hold Down

$3.49

$

Usually ships in 3-6 days

0

34

Lawn-Boy 602588

Reed

$

$

Not available

35

Lawn-Boy 683215

C.D. Ignition Module and Lead Assembly
(Superseded to 100-2948)

$125.99

$

In Stock, only 1 left!

0

36

Lawn-Boy 681678

High Tension Lead

$24.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 510231

Spring Terminal
(Superseded to 684698)

$7.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 609651

Terminal-Ground Lead

$

$

Not available

39

Lawn-Boy 607526

Screw-C.D. Mtg. and Alt. Mounting
(Superseded to 32105-12)

$2.99

$

In Stock, only 2 left!

0

40

Lawn-Boy 605120

Grommet-C.D. Brkt.

$4.49

$

In Stock, Qty 9

0

41

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

$1.49

$

In Stock, Qty 6

0

42

Lawn-Boy 609475

Clip-"U"

$2.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 611374

Bracket-Ign. Mounting
(Superseded to 613073)

$

$

Not available

44

Lawn-Boy 307028

Screw
(Superseded to 614343)

$3.49

$

In Stock, only 4 left!

0

45

Lawn-Boy 611339

Bracket-Starter Mtg.

$

$

Not available

46

Lawn-Boy 609579

Screw

$

$

Not available

47

Lawn-Boy 609580

Screw

$

$

Not available

48

Lawn-Boy 682807

Mtr. Hsg. and Pin Assembly
(Superseded to 682806)

$799.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 611385

Pinion-Motorshaft

$

$

Not available

50

Lawn-Boy 609568

Washer
(Superseded to 252-98)

$

$

Not available

51

Lawn-Boy 611386

Gear Driven

$

$

Not available

52

Lawn-Boy 611387

Plate-Gear Cover
(Superseded to 613517)

$

$

Not available

53

Lawn-Boy 609130

Screw

$2.49

$

Usually ships in 3-6 days

0

54

Lawn-Boy 682809

Pinion, Spring and Clutch Ass'y.

$

$

Not available

55

Lawn-Boy 610258

Pinion

$31.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 609229

Spring-Drag

$4.49

$

In Stock, Qty 6

0

57

Lawn-Boy 610257

Spring-Pinion Return

$

$

Not available

58

Lawn-Boy 609565

Washer-Pinion Stop
(Superseded to 613451)

$

$

Not available

59

Lawn-Boy 608622

Retaining Ring

$3.49

$

In Stock, only 4 left!

0

60

Lawn-Boy 609572

Sleeve

$41.99

$

In Stock, only 1 left!

0

61

Lawn-Boy 611073

Set Screw-Starter Assembly
(Superseded to 3274-10)

$9.99

$

In Stock, Qty 13

0

62

Lawn-Boy 682777

Wire Harness Assembly

$

$

Not available

63

Lawn-Boy 682776

Relay

$

$

Not available

64

Lawn-Boy 611337

Bracket-Alt. and Brk. Mtg.

$

$

Not available

65

Lawn-Boy 609545

Screw-Alt. and Brake Mtg. Brkt.

$

$

Not available

66

Lawn-Boy 682995

Brake Switch Assembly

$

$

Not available

67

Lawn-Boy 611510

Plunger

$

$

Not available

68

Lawn-Boy 611211

Spring-Brake

$15.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 682933

Control Cable Assembly
(Superseded to 683041)

$138.99

$

Usually ships in 3-6 days

0

70

Lawn-Boy 683092

Alternator Assembly

$

$

Not available

71

Lawn-Boy 682683

Brake Assembly

$

$

Not available

72

Lawn-Boy 611212

Bolt-Shoulder
(Superseded to 613529)

$13.99

$

Usually ships in 3-6 days

0

73

Lawn-Boy 611214

Spring-Cable Retainer

$9.99

$

In Stock, only 1 left!

0

74

Lawn-Boy 611509

Actuator-Brake Lever

$5.49

$

In Stock, only 3 left!

0

75

Lawn-Boy 611213

Retainer

$2.49

$

In Stock, only 4 left!

0

76

Lawn-Boy 304753

Nut
(Superseded to 700755)

$

$

Not available

77

Lawn-Boy 681831

Bearing-Lower

$24.99

$

In Stock, only 1 left!

0

78

Lawn-Boy 611396

Oil Seal-Lower

$6.99

$

In Stock, only 2 left!

0

79

Lawn-Boy 605885

Spark Plug
(Superseded to 614009)

$5.49

$

In Stock, only 3 left!

0
