R 7270 - Lawn-Boy Walk-Behind Mower (SN: 300000001 - 399999999) (1983) HANDLE AND REAR BAGGER GROUP MODEL R7270 Parts Diagram

Walk-Behind Mower

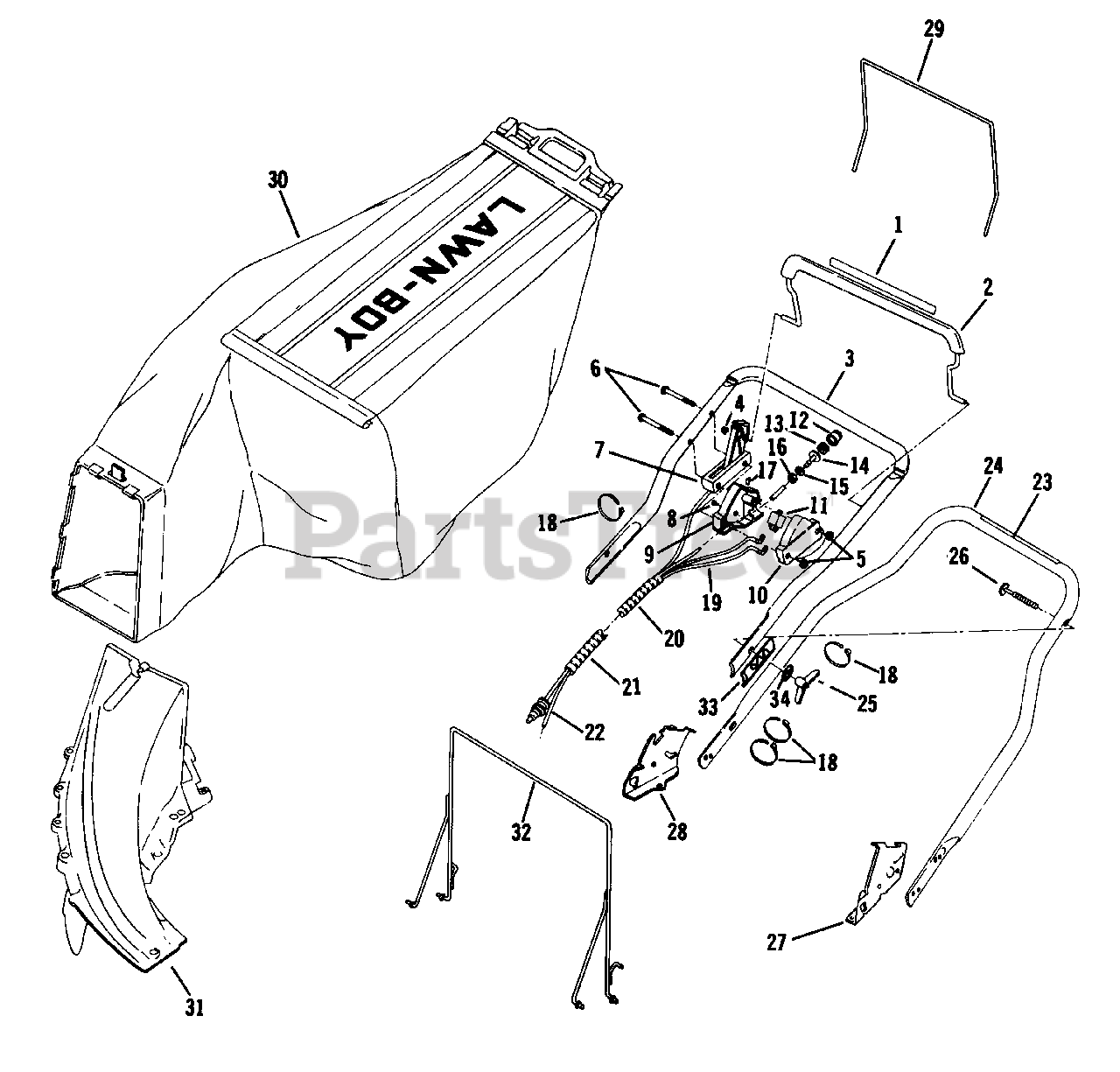

HANDLE AND REAR BAGGER GROUP MODEL R7270 Parts Diagram

  • Title

1

Lawn-Boy 611317

Decal-Blade Control

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

2

Lawn-Boy 682698

Control Lever Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

3

Lawn-Boy 682738

Top Handle and Grip Assembly
(Superseded to 611277)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

4

Lawn-Boy 605546

Pushnut
(Superseded to 32112-11)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 611258

Nut-Hex-Centerlock

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 611257

Screw

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 682997

B.B.C. Control Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$357.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 611249

Screw
(Superseded to 611381)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

9

Lawn-Boy 611253

Console-R.H.

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

10

Lawn-Boy 611252

Console-L.H.

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

11

Lawn-Boy 682750

Switch Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

12

Lawn-Boy 611072

Primer Bulb

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

13

Lawn-Boy 611114

Filter

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 607311

Primer Base

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

15

Lawn-Boy 611254

Washer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

16

Lawn-Boy 608027

Locknut

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$2.49

$

In Stock, Qty 6

0

17

Lawn-Boy 611311

Decal

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

18

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

19

Lawn-Boy 682819

Wire Harness Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

20

Lawn-Boy 611424

Spiral Tubing

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

21

Lawn-Boy 609857

Spiral Tubing

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

22

Lawn-Boy 611452

Tubing
(Superseded to 611231)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

23

Lawn-Boy 611316

Decal-Starting Inst.

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

24

Lawn-Boy 607545

Handle-Bottom
(Superseded to 612787)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

25

Lawn-Boy 607544

Knob

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

26

Lawn-Boy 611184

Screw-Folding Handle

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$8.49

$

In Stock, only 2 left!

0

27

Lawn-Boy 682714

Handle Bracket-L.H.
(Superseded to 683925-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

28

Lawn-Boy 682715

Handle Bracket-R.H.
(Superseded to 683926-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

29

Lawn-Boy 609691

Hanger-Rear

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

30

Lawn-Boy 681917

Bag Assembly
(Superseded to 99-5223)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

31

Lawn-Boy 679487

Chute Assembly
(Superseded to 99-6411)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

32

Lawn-Boy 682765

Hanger Ass'y.-Front

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$134.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 609692

Bracket-Rear Hanger

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

34

Lawn-Boy 609739

Washer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

In Stock, Qty 8

0
