R 7270 AE - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) DECK AND SHROUD GROUP MODELS: R7270AE Parts Diagram

Walk-Behind Mower

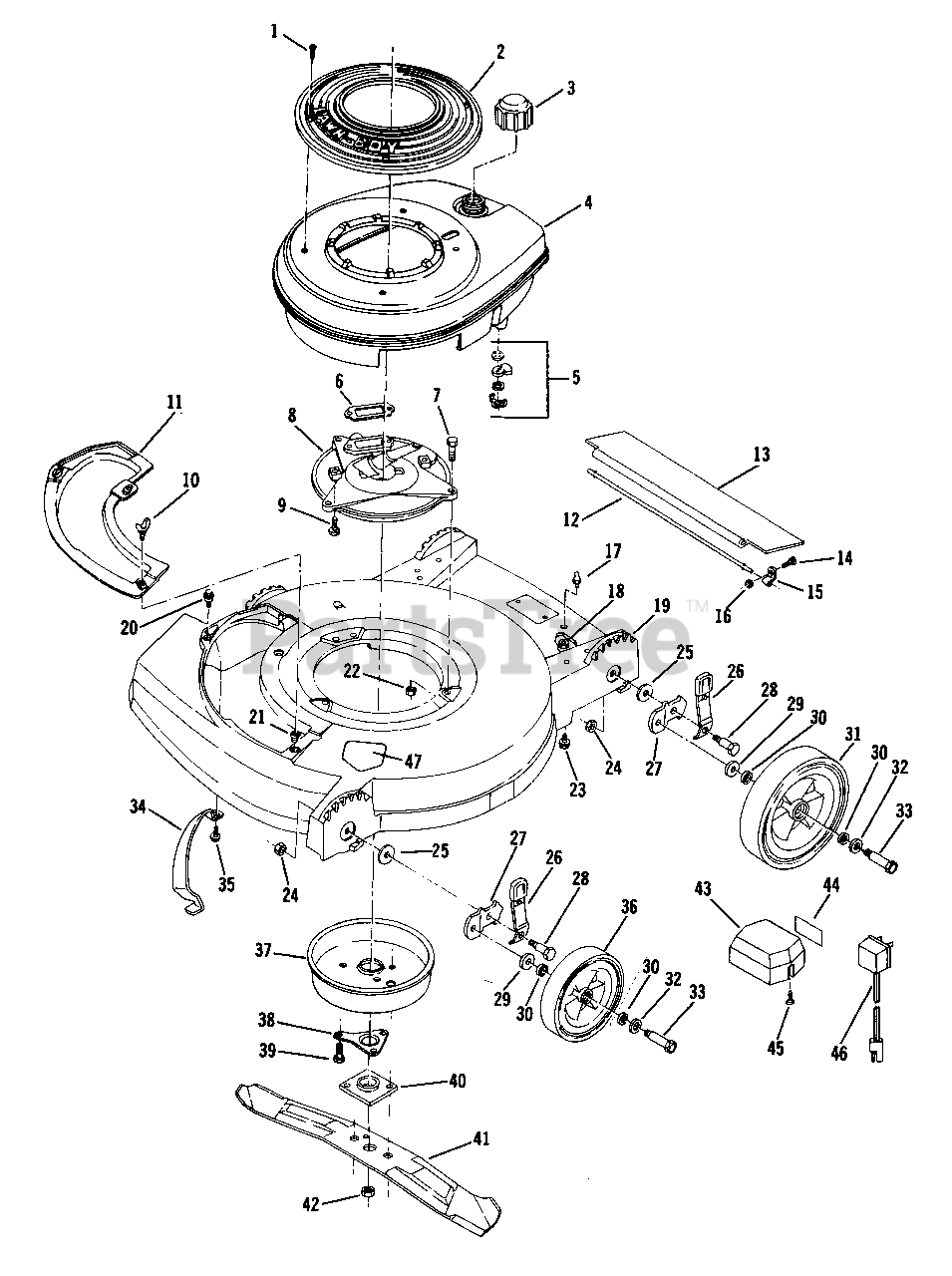

DECK AND SHROUD GROUP MODELS: R7270AE Parts Diagram

  • Title

1

Lawn-Boy 611395

Screw
(Superseded to 611543)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, Qty 6

0

2

Lawn-Boy 611382

Cover-Shroud

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 682802

Shroud
(Superseded to 16-5539)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

5

Lawn-Boy 681818

Fuel Shut-Off Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

6

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.99

$

In Stock, Qty 6

0

7

Lawn-Boy 604862

Screw-Muffler Plate to Housing

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

8

Lawn-Boy 609534

Plate-Muffler

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

9

Lawn-Boy 607601

Screw-Muffler Plate to Block

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

10

Lawn-Boy 606733

Wing Screw

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$9.99

$

In Stock, Qty 6

0

11

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$36.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 608174

Rod-Trailing Shield

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

13

Lawn-Boy 611015

Shield-Trailing

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

14

Lawn-Boy 609891

Screw
(Superseded to 700138)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

15

Lawn-Boy 608161

Clamp

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 602315

Nut

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 609034

Ball Stud-Batt. Mtg.

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

18

Lawn-Boy 311505

Nut-Ball Stud

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

19

Lawn-Boy 682753

Housing
(Superseded to 684522)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$618.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 607809

Screw-Plate and Chute Mounting
(Superseded to 614677)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, Qty 12

0

21

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.49

$

In Stock, Qty 7

0

22

Lawn-Boy 608311

Nut-Muffler Plate to Housing

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 607188

Screw

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

24

Lawn-Boy 603773

Nut

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 6

0

25

Lawn-Boy 608834

Washer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 681229

Knob and Spring Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

27

Lawn-Boy 608833

Bracket
(Superseded to 608833-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

28

Lawn-Boy 608835

Bolt-Shoulder
(Superseded to 610646)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 603620

Washer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

31

Lawn-Boy 682974

Wheel-Rear
(Superseded to 131-4520)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$37.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 605256

Washer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 603441

Bolt-Wheel

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 608175

Toe Bar

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$77.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

36

Lawn-Boy 678636

Wheel-Front

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 682876

Muffler-Cover Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$165.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 609786

Support-Crankshaft

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

39

Lawn-Boy 609471

Screw-Muffler to Muffler Plate

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.99

$

In Stock, Qty 14

0

40

Lawn-Boy 677525

Collar and Plate Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

41

Lawn-Boy 682915

Blade-21"
(Superseded to 612543-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

42

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

43

Lawn-Boy 682869

Batt. Box and Batt. Pack Assembly
(Superseded to 94-1614)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

44

Lawn-Boy 608649

Decal

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

45

Lawn-Boy 609022

Screw

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

46

Lawn-Boy 681369

Battery Charger Assembly
(Superseded to 131-0848)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$78.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$6.99

$

In Stock, Qty 6

0
