R 7268 - Lawn-Boy Walk-Behind Mower (SN: 800000001 - 899999999) (1978) ENGINE GROUP-F100-MODELS: R7268 Parts Diagram

Walk-Behind Mower

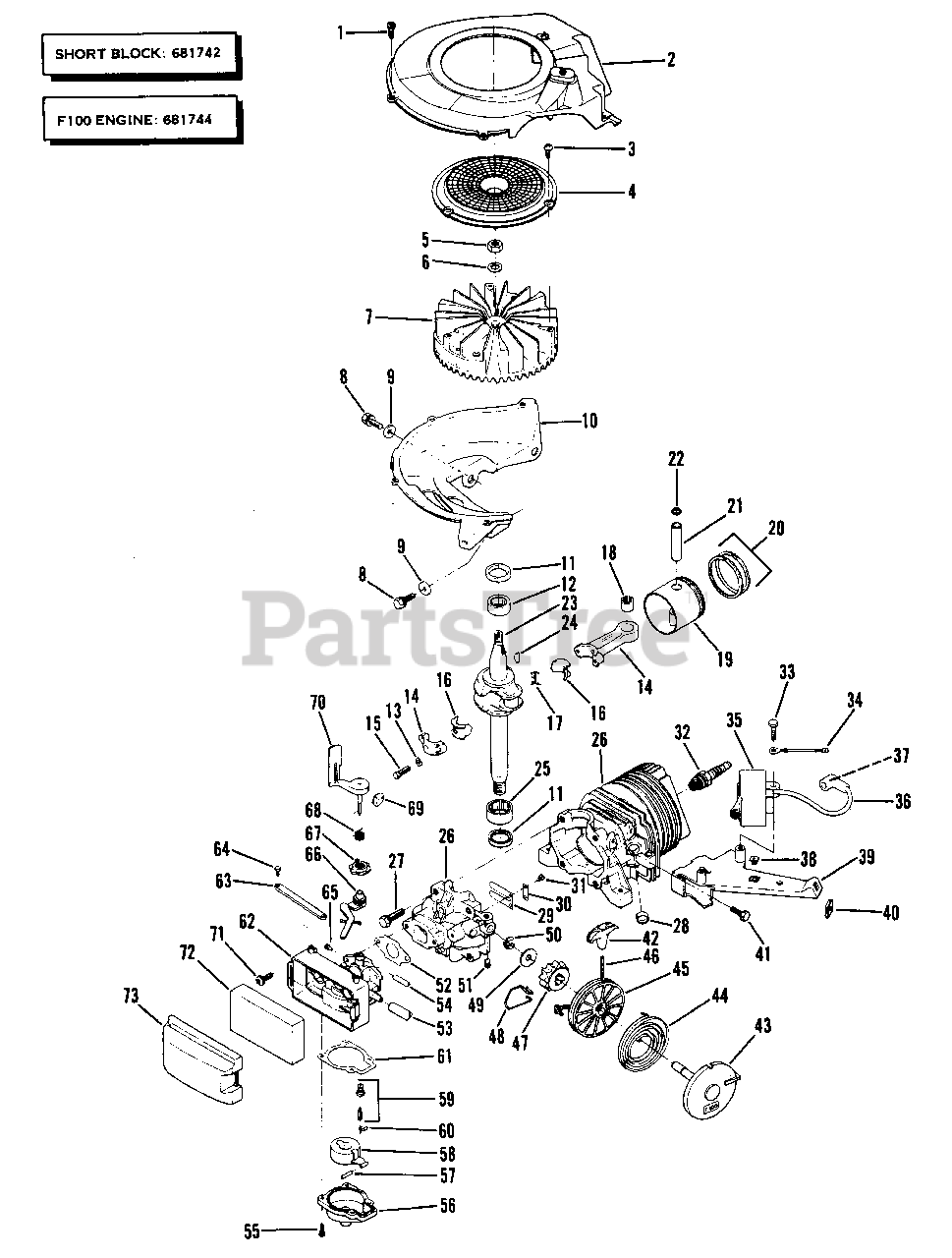

ENGINE GROUP-F100-MODELS: R7268 Parts Diagram

  • Title

1

Lawn-Boy 609807

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 681651

Air Baffle & Eyelet Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$137.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 606537

Screw-Flywheel Screen

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

4

Lawn-Boy 609465

Screen-Flywheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 130743

Nut-Flywheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, Qty 6

0

6

Lawn-Boy 304161

Lockwasher

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 681431

Flywheel Assembly
(Superseded to 682205)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 604857

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 314957

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

10

Lawn-Boy 609540

Base-Shroud

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 605020

Oil Seal
(Superseded to 611396)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 681830

Bearing-Upper

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

Lawn-Boy 681739

Piston & Connecting Rod Assembly
(Superseded to 92-4925)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 307558

Lockplate
(Superseded to 307578)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 681434

Connecting Rod Assembly
(Superseded to 92-4921)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$241.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 603976

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 677982

Liner-Split

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$46.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 677963

Needle Bearing Set
(Superseded to 683911)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$23.99

$

In Stock, Qty 5

0

18

Lawn-Boy 679144

Bearing Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 681738

Piston & Ring Set
(Superseded to 92-4923)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 681737

Ring Set

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 303712

Retaining Ring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, Qty 11

0

23

Lawn-Boy 609421

Crankshaft
(Superseded to 94-5713)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$292.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 607199

Key-Flywheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 9

0

25

Lawn-Boy 681831

Bearing-Lower

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 681763

Cylinder & Crankcase Cover Assembly
(Superseded to 683702)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 609918

Screw-Cover to Crankcase

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 609123

Plug

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 602588

Reed

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 602587

Plate-Reed Hold Down

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 303761

Screw-Reed to Crankcase Cover
(Superseded to 612872)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

In Stock, Qty 5

0

32

Lawn-Boy 605885

Spark Plug
(Superseded to 614009)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

33

Lawn-Boy 607526

Screw-C.D. Mounting
(Superseded to 32105-12)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 681788

Lead Assembly-Ignition

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 681578

C.D. Ignition Module & Lead Assembly
(Superseded to 100-2949)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$95.99

$

Usually ships in 3-6 days

0

Lawn-Boy 318535

Adhesive

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

36

Lawn-Boy 681678

High Tension Lead

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 510231

Spring Terminal
(Superseded to 684698)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 605120

Grommet-C.D. Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, Qty 9

0

39

Lawn-Boy 609120

Bracket-C.D. Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 609475

Clip-"U"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 307028

Screw
(Superseded to 614343)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

42

Lawn-Boy 609477

Handle-Starter

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

Lawn-Boy 681604

Starter Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 681603

Cup & Pin Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 604257

Spring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$40.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 609457

Pulley

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 607874

Rope

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 609133

Pinion

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 609229

Spring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

49

Lawn-Boy 609005

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 609004

Retainer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 603345

Set Screw-Starter Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

In Stock, only 3 left!

0

52

Lawn-Boy 609476

Gasket-Carburetor to Crankcase Cover

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 609639

Fuel Line

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

Lawn-Boy 681721

Carburetor & Air Vane Assembly
(Superseded to 682568)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 609640

Tube-Primer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$14.99

$

In Stock, only 3 left!

0

55

Lawn-Boy 608850

Screw-Float Chamber

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

In Stock, only 3 left!

0

56

Lawn-Boy 609793

Float Chamber
(Superseded to 682568)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 300096

Pin-Float
(Superseded to 92-6389)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

58

Lawn-Boy 678113

Float

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 681741

Float Valve & Seat
(Superseded to 92-9697)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$27.99

$

In Stock, Qty 8

0

60

Lawn-Boy 603145

Clip
(Superseded to 92-9697)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$27.99

$

In Stock, Qty 8

0

61

Lawn-Boy 602850

Gasket
(Superseded to 98-1362)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, Qty 20+

0

62

Lawn-Boy 681720

Carburetor Body
(Superseded to 682568)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 609792

Retainer-Speed Control Lever
(Superseded to 610165)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, Qty 15

0

64

Lawn-Boy 609804

Screw
(Superseded to 610165)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, Qty 15

0

65

Lawn-Boy 609686

Screw-Altitude Adjustment

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$11.99

$

In Stock, only 2 left!

0

66

Lawn-Boy 609631

Speed Control Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.99

$

In Stock, only 1 left!

0

67

Lawn-Boy 609489

Collar

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

68

Lawn-Boy 609638

Spring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$9.49

$

In Stock, only 1 left!

0

69

Lawn-Boy 609632

Disk-Throttle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, only 1 left!

0

70

Lawn-Boy 609630

Air Vane & Shaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

71

Lawn-Boy 609482

Screw-Carburetor Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 8

0

72

Lawn-Boy 609493

Element-Air Filter
(Superseded to 107-4621)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 7

0

73

Lawn-Boy 609641

Cover-Air Filter
(Superseded to 93-1231)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available
