R 7268 - Lawn-Boy Walk-Behind Mower (SN: 100000001 - 199999999) (1981) HANDLE AND REAR BAGGER GROUP MODEL: R7268 Parts Diagram

Walk-Behind Mower

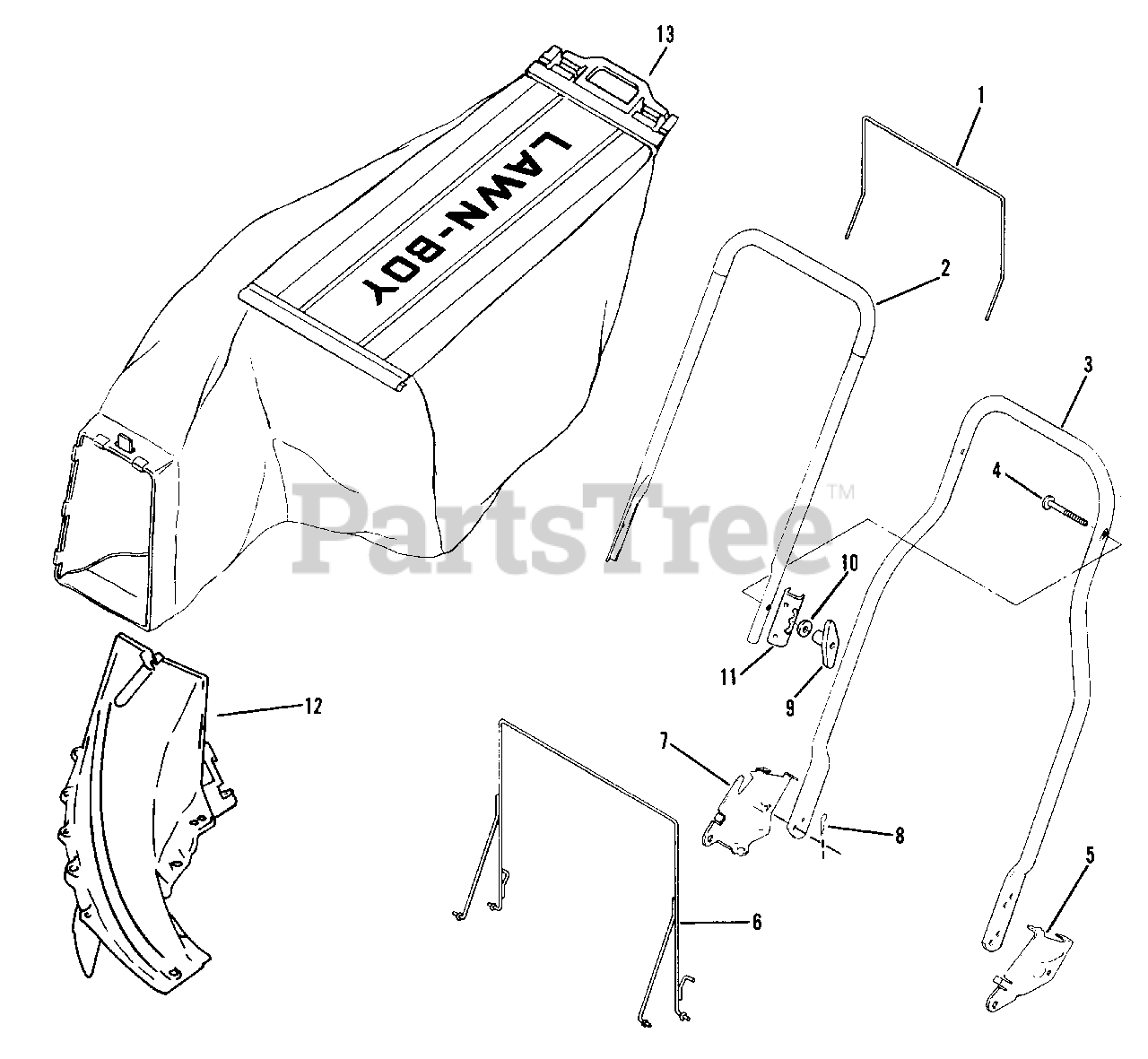

HANDLE AND REAR BAGGER GROUP MODEL: R7268 Parts Diagram

  • Title

1

Lawn-Boy 609691

Hanger-Rear

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 681834

Top Handle & Grip Assembly
(Superseded to 608094)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 607545

Handle Section-Bottom
(Superseded to 612787)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 607543

Screw
(Superseded to 611184)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$8.49

$

In Stock, only 1 left!

0

5

Lawn-Boy 681778

Handle Bracket-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 681805

Hanger Assembly-Front

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 681779

Handle Bracket-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 605803

Halr Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 607544

Knob

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 609739

Washer-Curved

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.49

$

In Stock, Qty 10

0

11

Lawn-Boy 609692

Bracket-Rear Hanger

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 679487

Chute Assembly
(Superseded to 99-6411)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 681917

Bag & Deflector Assembly
(Superseded to 99-5223)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available
