R 7268 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) Handle And Grass Catcher Group Models: 5247, 7229, 7268 Parts Diagram

Walk-Behind Mower

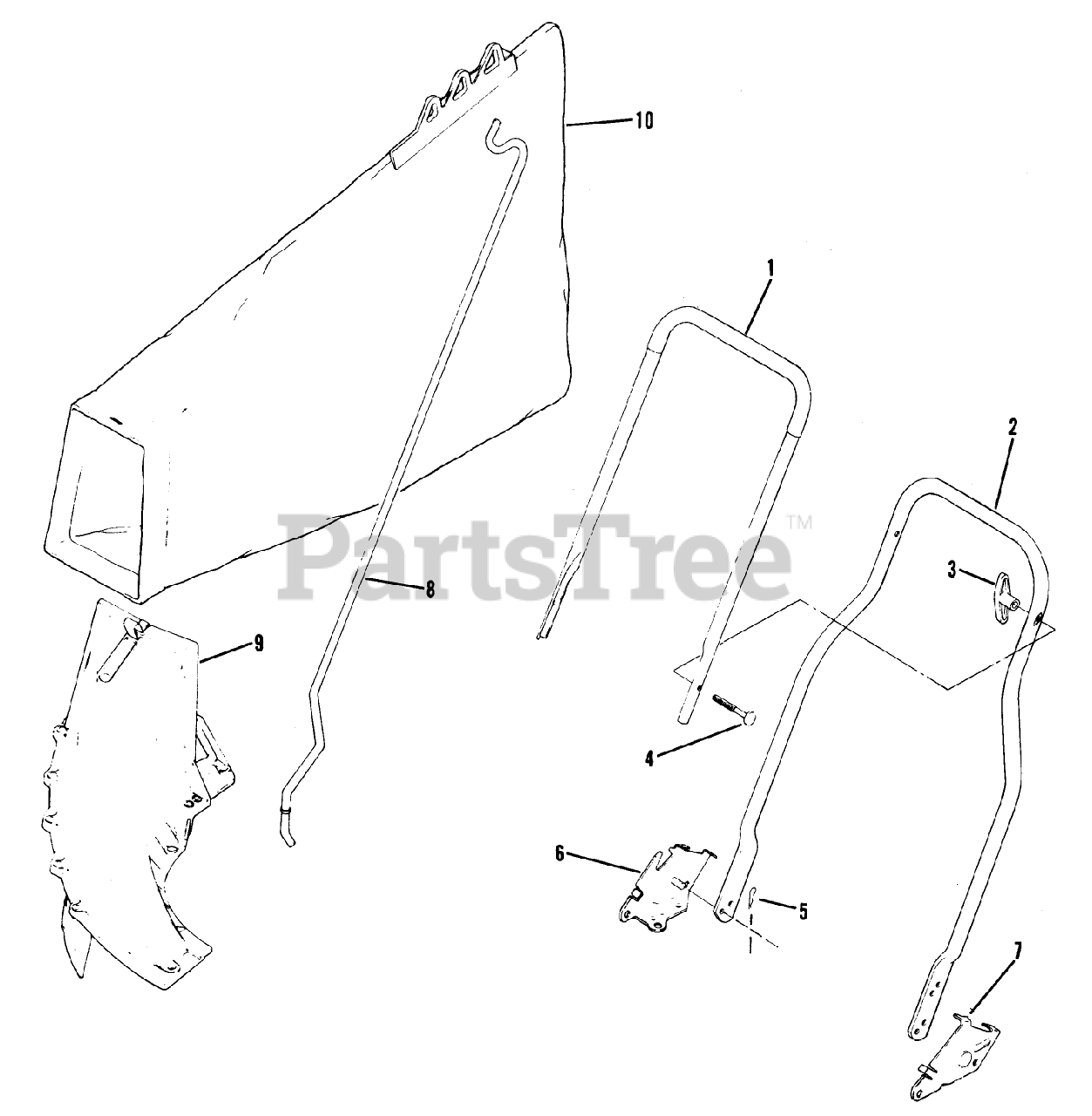

Handle And Grass Catcher Group Models: 5247, 7229, 7268 Parts Diagram

  • Title
1

Lawn-Boy 681834

DISCONTINUED
(Superseded to 608094)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 607545

DISCONTINUED
(Superseded to 612787)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 607544

NUT-WING

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

4

Lawn-Boy 607543

See Supercession: 611184
(Superseded to 611184)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$8.49

$

In Stock, only 1 left!

0

5

Lawn-Boy 605803

HAIR PIN

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

Lawn-Boy 609799

DISCONTINUED
(Superseded to 613363)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 681779

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 681778

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 607561

ROD GRASSBAG

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 607561

ROD GRASSBAG

Note: Catcher Models Only

$

$

Not available

9

Lawn-Boy 679487

See Supercession: 99-6411
(Superseded to 99-6411)

Note: Catcher Models Only

$

$

Not available

9

Lawn-Boy 679487

See Supercession: 99-6411
(Superseded to 99-6411)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 679966

89802 LB WHOLE GOODS

Note: Catcher Models Only

$

$

Not available

10

Lawn-Boy 679966

89802 LB WHOLE GOODS

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available
