R 7268 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) Handle And Grass Catcher Group Model 8237 Parts Diagram

Walk-Behind Mower

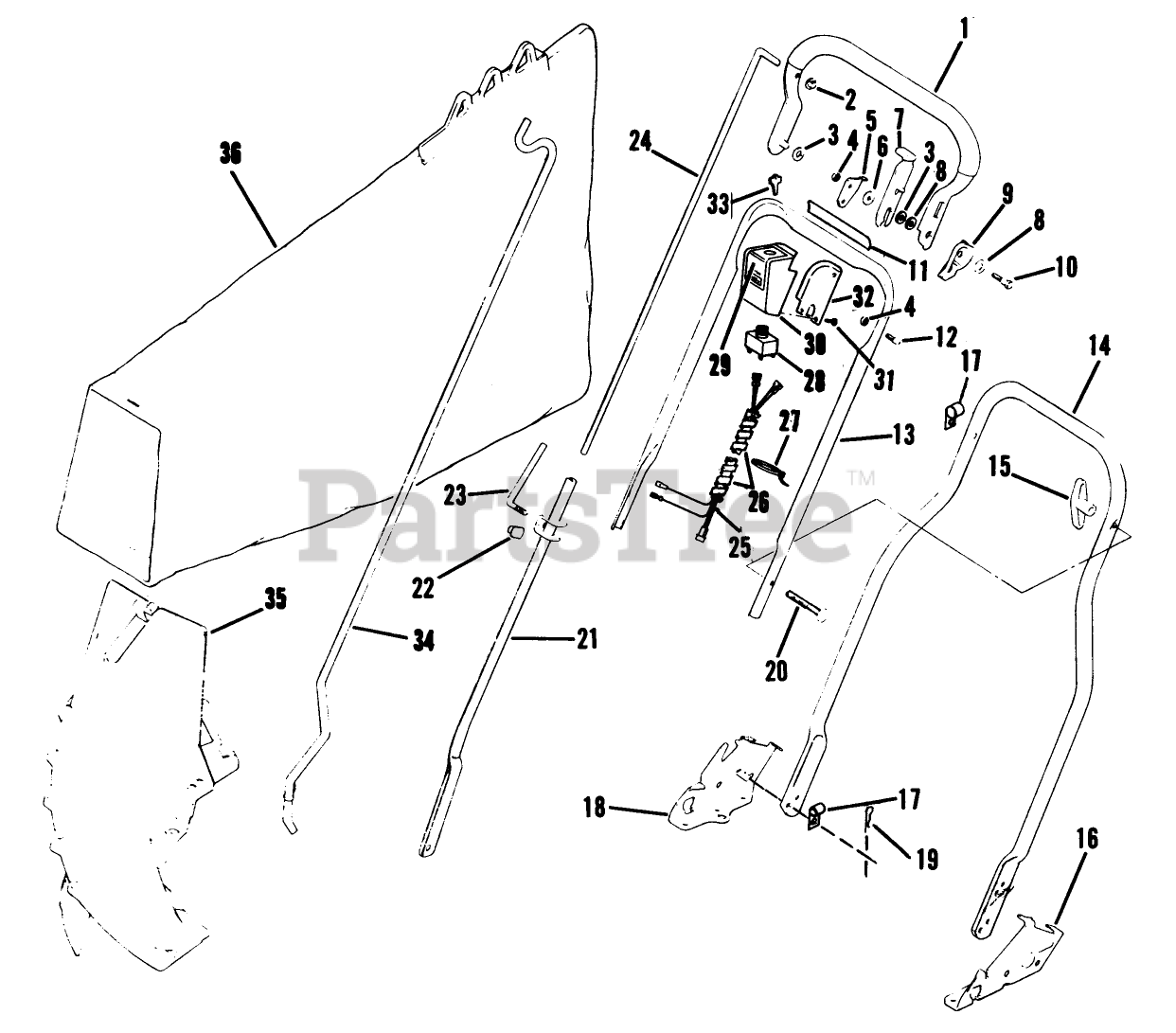

Handle And Grass Catcher Group Model 8237 Parts Diagram

  • Title

1

Lawn-Boy 681607

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

3

Lawn-Boy 306359

WASHER M

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 609689

HANDLE STOP

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609460

WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 609463

LEVER LOCKOUT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$62.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 303254

See Supercession: 121-4605
(Superseded to 121-4605)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 609544

DISCONTINUED
(Superseded to 610431)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 606144

BOLT PIONEER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 608958

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 609461

SCREW-HANDLE STOP

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 607669

HANDLE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$95.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 607545

DISCONTINUED
(Superseded to 612787)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 607544

NUT-WING

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 681781

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 609604

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 681780

HANDLE BRACKET

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$102.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 605803

HAIR PIN

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 607543

See Supercession: 611184
(Superseded to 611184)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$8.49

$

In Stock, only 2 left!

0

21

Lawn-Boy 679661

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 602912

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

23

Lawn-Boy 603690

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

24

Lawn-Boy 607660

ROD CONTROL

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 681670

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 681670

DISCONTINUED

Note: Model 8238AE Only

$

$

Not available

26

Lawn-Boy 609857

DISCONTINUED

Note: Model 8238AE Only

$

$

Not available

26

Lawn-Boy 609857

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: Model 8238AE Only

$1.49

$

In Stock, only 2 left!

0

27

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

28

Lawn-Boy 681679

See Supercession: 682857
(Superseded to 682857)

Note: Model 8238AE Only

$148.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 681679

See Supercession: 682857
(Superseded to 682857)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$148.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 609248

DISCONTINUED

Note: Model 8238AE Only

$

$

Not available

29

Lawn-Boy 609248

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 609730

HOUSING SWITCH

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$32.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 609730

HOUSING SWITCH

Note: Model 8238AE Only

$32.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 600022

Screw

Note: Model 8238AE Only

$

$

Currently unavailable

31

Lawn-Boy 600022

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

32

Lawn-Boy 609039

DISCONTINUED

Note: Model 8238AE Only

$

$

Not available

32

Lawn-Boy 609039

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 609269

DISCONTINUED

Note: Model 8238AE Only

$

$

Not available

33

Lawn-Boy 609269

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 607561

ROD GRASSBAG

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 679487

See Supercession: 99-6411
(Superseded to 99-6411)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 670966

ORDER 89814 W/G

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available
