R 7268 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) Handle And Grass Catcher Group Model 8070 Parts Diagram

Walk-Behind Mower

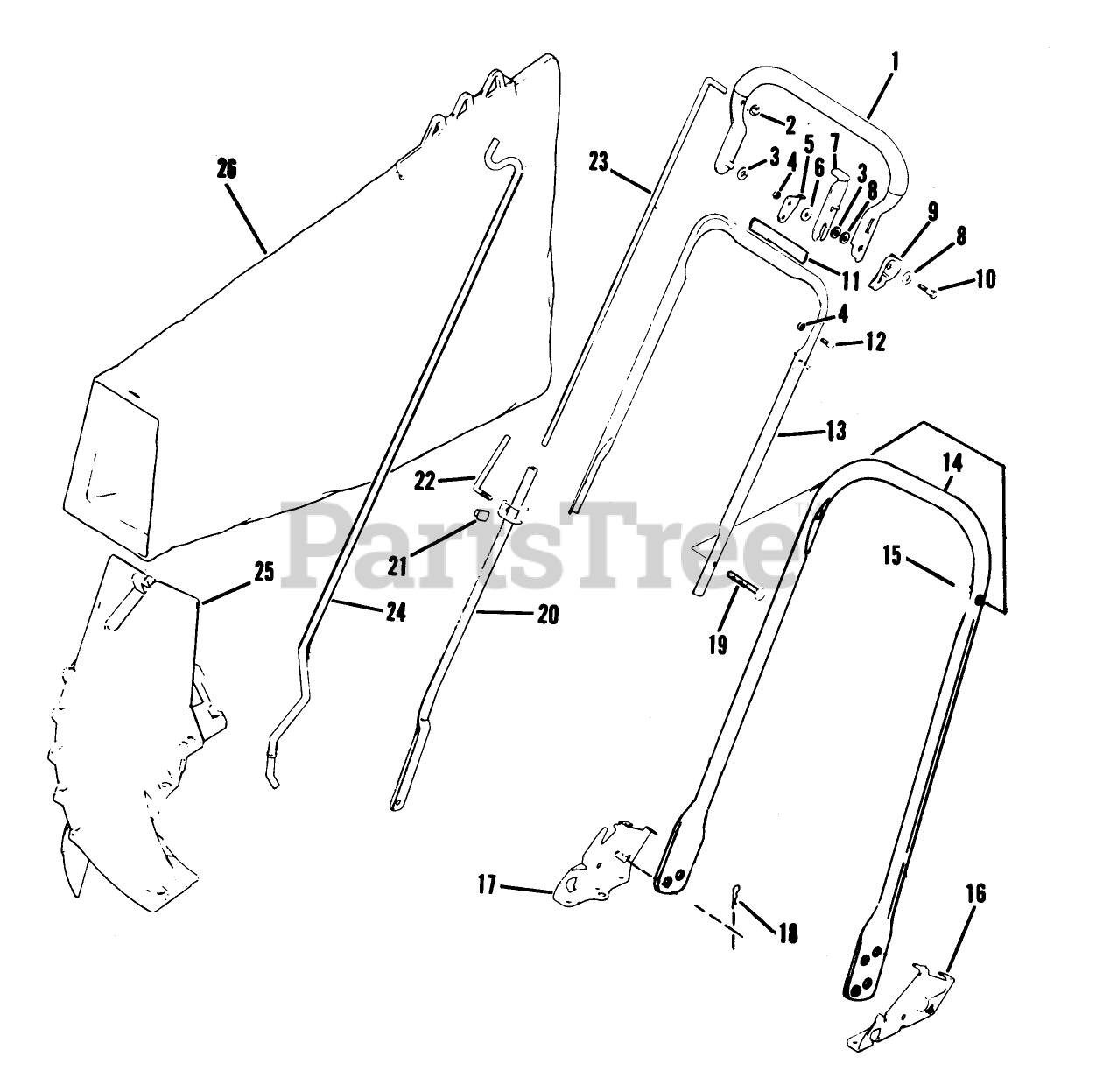

Handle And Grass Catcher Group Model 8070 Parts Diagram

  • Title
1

Lawn-Boy 682199

DISCONTINUED

$

$

Not available

2

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

3

Lawn-Boy 306359

WASHER M

$

$

Not available

4

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 609689

HANDLE STOP

$

$

Not available

6

$

$

Not available

7

Lawn-Boy 610496

DISCONTINUED

$

$

Not available

8

Lawn-Boy 303254

See Supercession: 121-4605
(Superseded to 121-4605)

$4.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 610498

DISCONTINUED

$

$

Not available

10

Lawn-Boy 606144

BOLT PIONEER

$

$

Not available

11

Lawn-Boy 610495

DISCONTINUED

$

$

Not available

12

Lawn-Boy 609461

SCREW-HANDLE STOP

$

$

Not available

13

Lawn-Boy 610494

Handle-Center

$

$

Currently unavailable

14

Lawn-Boy 610487

See Supercession: 611113
(Superseded to 611113)

$

$

Not available

15

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 682190

See Supercession: 681781
(Superseded to 681781)

$

$

Not available

17

Lawn-Boy 682191

See Supercession: 681780
(Superseded to 681780)

$102.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 605803

HAIR PIN

$

$

Not available

19

Lawn-Boy 610096

SCREW - USE 137-3042

$

$

Not available

20

Lawn-Boy 682197

See Supercession: 679661
(Superseded to 679661)

$

$

Not available

21

Lawn-Boy 602992

DISCONTINUED

$

$

Not available

22

Lawn-Boy 603699

DISCONTINUED

$

$

Not available

23

Lawn-Boy 610492

DISCONTINUED

$

$

Not available

24

Lawn-Boy 610488

See Supercession: 607561
(Superseded to 607561)

$

$

Not available

25

Lawn-Boy 679487

See Supercession: 99-6411
(Superseded to 99-6411)

$

$

Not available

26

Lawn-Boy 679966

89802 LB WHOLE GOODS

$

$

Not available
