R 7268 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) Engine Group-F141ae Models: 8238ae Parts Diagram

Walk-Behind Mower

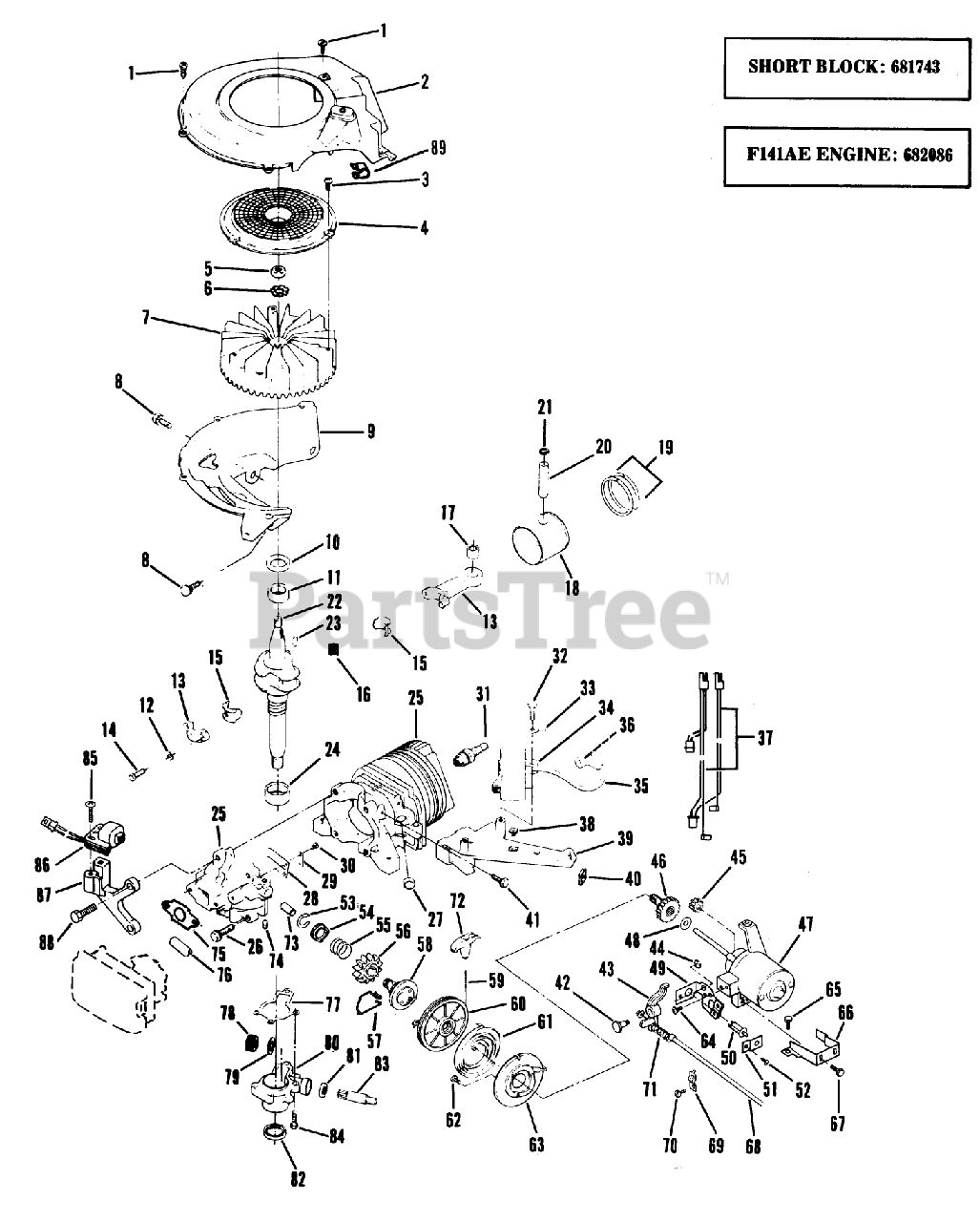

Engine Group-F141ae Models: 8238ae Parts Diagram

  • Title
1

Lawn-Boy 608997

SCREW S

$2.49

$

In Stock, only 2 left!

0

2

Lawn-Boy 681651

AIR BAF&EYELET S

$137.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 606537

SCREW F

$2.49

$

In Stock, only 4 left!

0

4

Lawn-Boy 609465

DISCONTINUED

$

$

Not available

$3.49

$

In Stock, Qty 6

0

6

Lawn-Boy 316959

See Supercession: 3253-6
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 681431

See Supercession: 682205
(Superseded to 682205)

$

$

Not available

8

Lawn-Boy 609947

SCREW-SEMS

$10.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 682226

DISCONTINUED

$

$

Not available

10

Lawn-Boy 605020

See Supercession: 611396
(Superseded to 611396)

$6.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 681830

BEARING V

$41.99

$

Usually ships in 3-6 days

0

Lawn-Boy 681739

DISCONTINUED
(Superseded to 92-4925)

$

$

Not available

12

Lawn-Boy 307558

DISCONTINUED
(Superseded to 307578)

$

$

Not available

13

Lawn-Boy 681434

See Supercession: 92-4921
(Superseded to 92-4921)

$241.99

$

In Stock, only 2 left!

0

14

$

$

Not available

15

Lawn-Boy 677982

LINER ASM

$46.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 677963

See Supercession: 683911
(Superseded to 683911)

$23.99

$

In Stock, Qty 5

0

17

Lawn-Boy 679144

BEARING AY F

$

$

Not available

18

Lawn-Boy 681738

DISCONTINUED
(Superseded to 92-4923)

$

$

Not available

19

Lawn-Boy 681737

DISCONTINUED

$

$

Not available

20

Lawn-Boy 606608

See Supercession: 94-5774
(Superseded to 94-5774)

$11.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 303712

RING-RETAINING

$3.49

$

In Stock, Qty 11

0

22

Lawn-Boy 609407

DISCONTINUED

$

$

Not available

$5.49

$

In Stock, Qty 9

0

24

Lawn-Boy 681832

BEARING S

$

$

Not available

25

Lawn-Boy 681655

See Supercession: 683708
(Superseded to 683708)

$

$

Not available

Lawn-Boy 610372

SEALER-LOCTITE (6 ML TUBE)

$27.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 609918

SCREW S

$3.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 609123

PLUG-CORE VF

$3.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 602588

DISCONTINUED

$

$

Not available

29

Lawn-Boy 602587

PLATE-BACKUP, REED

$3.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 303761

See Supercession: 612872
(Superseded to 612872)

$2.49

$

In Stock, Qty 5

0

31

Lawn-Boy 605885

See Supercession: 614009
(Superseded to 614009)

$5.49

$

In Stock, only 3 left!

0

32

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

$2.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 609651

TERMINAL S

$

$

Not available

34

Lawn-Boy 681578

See Supercession: 100-2949
(Superseded to 100-2949)

$95.99

$

Usually ships in 3-6 days

0

Lawn-Boy 318535

Adhesive

$

$

Currently unavailable

35

Lawn-Boy 681678

HT LEAD&COVER XEV

$24.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 510231

See Supercession: 684698
(Superseded to 684698)

$7.49

$

Usually ships in 3-6 days

0

37

Lawn-Boy 681671

DISCONTINUED

$

$

Not available

38

Lawn-Boy 605120

NUT-CLIP

$4.49

$

In Stock, Qty 9

0

39

Lawn-Boy 609120

DISCONTINUED

$

$

Not available

40

Lawn-Boy 609475

NUT - SPEED S

$2.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 307028

See Supercession: 614343
(Superseded to 614343)

$3.49

$

In Stock, only 4 left!

0

Lawn-Boy 681663

DISCONTINUED

$

$

Not available

42

Lawn-Boy 609575

PIN INTERLOCK

$

$

Not available

43

Lawn-Boy 609577

DISCONTINUED

$

$

Not available

44

Lawn-Boy 609576

DISCONTINUED

$

$

Not available

45

Lawn-Boy 610255

DISCONTINUED

$

$

Not available

46

$

$

Not available

47

Lawn-Boy 681437

DISCONTINUED

$

$

Not available

48

Lawn-Boy 609568

See Supercession: 252-98
(Superseded to 252-98)

$

$

Not available

49

Lawn-Boy 609574

DISCONTINUED

$

$

Not available

50

Lawn-Boy 681295

DISCONTINUED

$

$

Not available

51

Lawn-Boy 609068

DISCONTINUED

$

$

Not available

52

Lawn-Boy 608957

DISCONTINUED

$

$

Not available

53

Lawn-Boy 608622

RET.RING EF

$3.49

$

In Stock, only 4 left!

0

54

Lawn-Boy 609565

See Supercession: 613451
(Superseded to 613451)

$

$

Not available

55

Lawn-Boy 610257

*SPRING PINION EF

$

$

Not available

56

Lawn-Boy 610258

PINION EF

$31.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 609229

SPRING F

$4.49

$

In Stock, Qty 6

0

58

Lawn-Boy 682012

CLUTCH AY S

$161.99

$

Usually ships in 3-6 days

0

59

Lawn-Boy 607874

DISCONTINUED

$

$

Not available

60

Lawn-Boy 681439

PULLEY & CLUTCH BEARING

$

$

Not available

61

Lawn-Boy 609569

SPRING S

$

$

Not available

62

Lawn-Boy 609130

SCREW EF

$2.49

$

Usually ships in 3-6 days

0

63

Lawn-Boy 609129

DISCONTINUED

$

$

Not available

64

$1.99

$

In Stock, Qty 6

0

65

Lawn-Boy 609580

DISCONTINUED

$

$

Not available

66

Lawn-Boy 609573

DISCONTINUED

$

$

Not available

67

$

$

Not available

68

Lawn-Boy 681669

DISCONTINUED

$

$

Not available

69

$6.99

$

In Stock, only 2 left!

0

70

Lawn-Boy 608957

DISCONTINUED

$

$

Not available

71

Lawn-Boy 609571

DISCONTINUE

$

$

Not available

72

Lawn-Boy 609477

HANDLE STARTER S

$

$

Not available

73

Lawn-Boy 609572

SLEEVE F

$41.99

$

In Stock, only 1 left!

0

74

Lawn-Boy 603345

SET SCREW

$2.49

$

In Stock, only 3 left!

0

75

Lawn-Boy 609476

GASKET CARB S

$

$

Not available

76

Lawn-Boy 609639

DISCONTINUED

$

$

Not available

77

Lawn-Boy 609419

GASKET S

$1.99

$

In Stock, only 2 left!

0

78

Lawn-Boy 608367

GEAR, DR SHAFT S

$100.99

$

Usually ships in 3-6 days

0

79

Lawn-Boy 608030

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

80

Lawn-Boy 681435

See Supercession: 683876
(Superseded to 683876)

$

$

Not available

81

$15.99

$

In Stock, only 1 left!

0

82

Lawn-Boy 605020

See Supercession: 611396
(Superseded to 611396)

$6.99

$

In Stock, only 2 left!

0

83

Lawn-Boy 607708

DISCONTINUE

$

$

Not available

84

Lawn-Boy 609418

DISCONTINUED

$

$

Not available

85

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

$2.99

$

In Stock, only 2 left!

0

86

Lawn-Boy 681653

DISCONTINUED
(Superseded to 683095)

$

$

Not available

87

Lawn-Boy 609543

DISCONTINUED

$

$

Not available

88

Lawn-Boy 609545

DISCONTINUED

$

$

Not available

89

Lawn-Boy 815848

Clamp-Wire Harness

$

$

Currently unavailable

Lawn-Boy 682102

DISCONTINUED

$

$

Not available
