R 7268 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) Drive Group Models 8070 Parts Diagram

Walk-Behind Mower

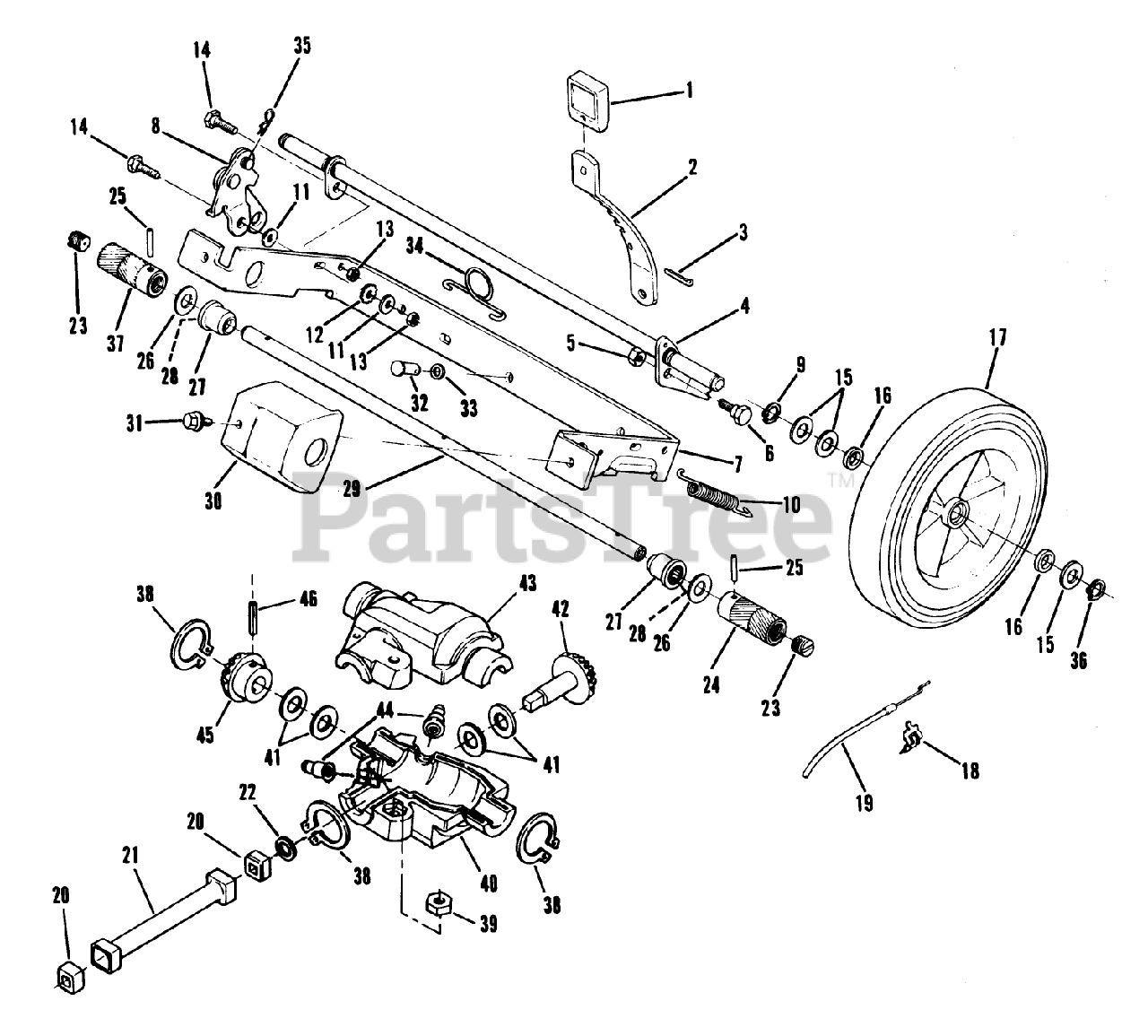

Drive Group Models 8070 Parts Diagram

  • Title

1

Lawn-Boy 610466

Knob-Rear Ht. Adj. Lever

$

$

Currently unavailable

1

Lawn-Boy 610484

Knob-Rear Ht. Adj Lever

$

$

Currently unavailable

2

Lawn-Boy 2607673

Lever-Rear Height Adjust

$

$

Currently unavailable

3

Lawn-Boy 3603036

Cotter Pin

$

$

Currently unavailable

Lawn-Boy 682179

AXLE BRK AY

$104.99

$

Usually ships in 3-6 days

0

Lawn-Boy 681290

DISCONTINUED

$

$

Not available

4

Lawn-Boy 682180

DISCONTINUED

$

$

Not available

4

Lawn-Boy 681534

DISCONTINUED

$

$

Not available

5

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 607665

BOLT RB&W

$9.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 608934

See Supercession: 610500
(Superseded to 610500)

$384.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 610500

BRK-21" AXLE

$384.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 679630

See Supercession: 683775
(Superseded to 683775)

$

$

Not available

9

Lawn-Boy 607676

RET RING

$5.99

$

In Stock, Qty 6

0

10

Lawn-Boy 603003

SPRING

$

$

Not available

11

Lawn-Boy 603093

WASHER S

$

$

Not available

12

Lawn-Boy 603123

DISCONTINUED

$

$

Not available

13

Lawn-Boy 602201

STOP NUT

$

$

Not available

14

Lawn-Boy 602984

BOLT RB&W

$

$

Not available

15

Lawn-Boy 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 605255

WASHER

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 682218

See Supercession: 682972
(Superseded to 682972)

$29.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 682222

See Supercession: 682972
(Superseded to 682972)

$29.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 608936

See Supercession: 682603
(Superseded to 682603)

$

$

Not available

19

Lawn-Boy 681667

DISCONTINUED

$

$

Not available

20

Lawn-Boy 608563

BUSHING

$9.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 610625

See Supercession: 683129
(Superseded to 683129)

$

$

Not available

22

Lawn-Boy 610644

O-RING

$2.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 602926

GREASE PLUG

$12.99

$

In Stock, Qty 6

0

24

Lawn-Boy 610475

ROLLER-LH

$120.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 607657

DISCONTINUED

$

$

Not available

25

Lawn-Boy 606013

PIN

$3.49

$

In Stock, Qty 5

0

26

Lawn-Boy 603037

DISCONTINUED

$

$

Not available

27

Lawn-Boy 678872

See Supercession: 681904
(Superseded to 681904)

$

$

Not available

28

Lawn-Boy 679144

BEARING AY F

$

$

Not available

29

Lawn-Boy 679952

DRIVE SHFT TAG AY

$

$

Not available

30

Lawn-Boy 607767

GUARD

$

$

Not available

31

Lawn-Boy 607783

DISCONTINUED

$

$

Not available

32

Lawn-Boy 606115

PIN

$7.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 606116

WASHER SPRING LAR

$

$

Not available

34

Lawn-Boy 605802

SPRING N.A.S

$7.99

$

In Stock, Qty 7

0

35

Lawn-Boy 603019

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

36

Lawn-Boy 607676

RET RING

$5.99

$

In Stock, Qty 6

0

37

Lawn-Boy 610476

ROLLER-RH

$

$

Not available

37

Lawn-Boy 607658

DISCONTINUED

$

$

Not available

38

Lawn-Boy 908973

See Supercession: 32151-33
(Superseded to 32151-33)

$3.49

$

In Stock, only 2 left!

0

39

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

40

Lawn-Boy 610152

See Supercession: 682662
(Superseded to 682662)

$

$

Not available

41

Lawn-Boy 608030

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

42

Lawn-Boy 607663

DISCONTINUED
(Superseded to 98-8319)

$

$

Not available

43

Lawn-Boy 610151

See Supercession: 682662
(Superseded to 682662)

$

$

Not available

44

Lawn-Boy 610153

ZERK FITTING

$

$

Not available

45

Lawn-Boy 607664

DISCONTINUED
(Superseded to 98-8319)

$

$

Not available

46

Lawn-Boy 311866

ROLL PIN

$3.49

$

In Stock, only 1 left!

0
