R 7268 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) Deck And Shroud Group Models: 8237, R8237, 8238ae, R8238ae Parts Diagram

Walk-Behind Mower

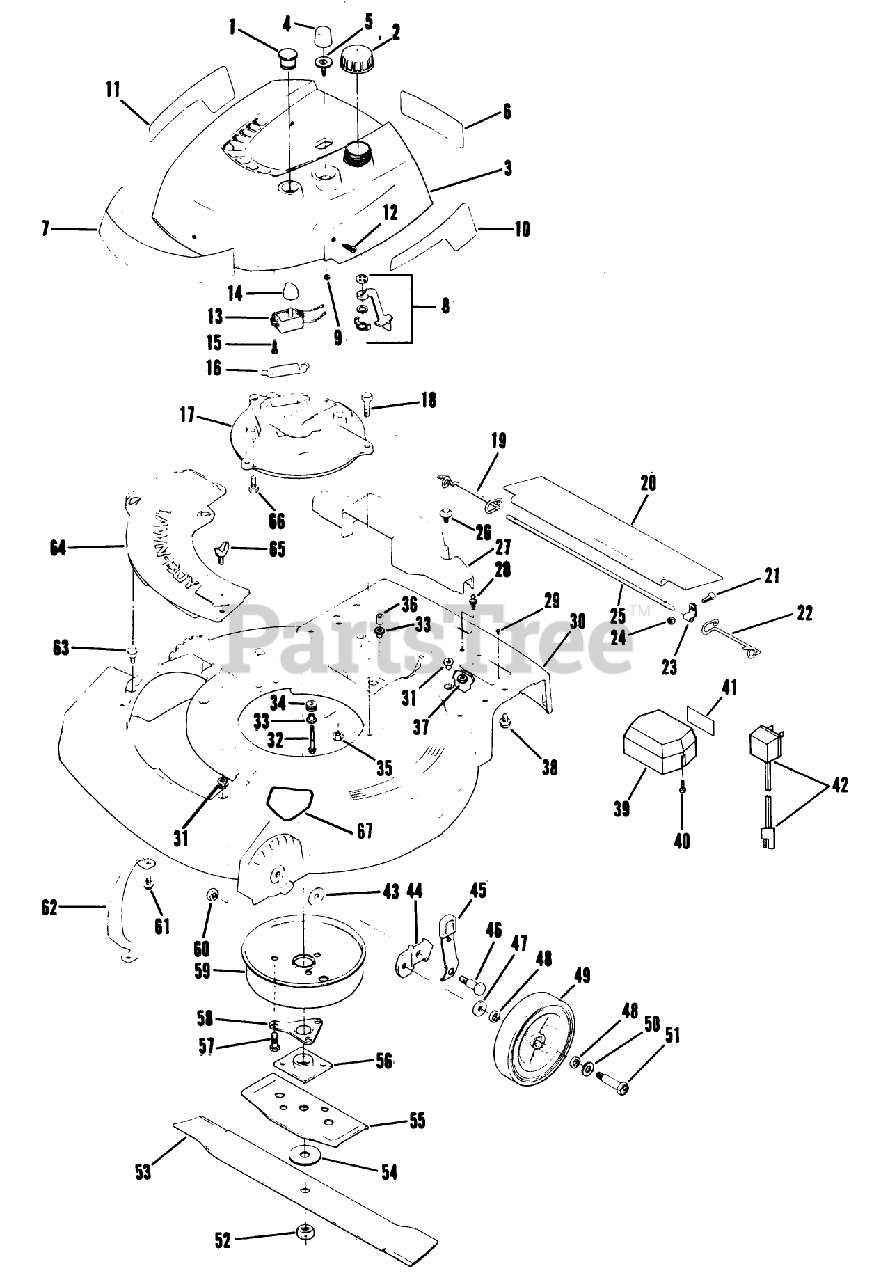

Deck And Shroud Group Models: 8237, R8237, 8238ae, R8238ae Parts Diagram

  • Title

1

Lawn-Boy 609652

F-PLUG

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 681929

See Supercession: 682755
(Superseded to 682755)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 681728

See Supercession: 682586
(Superseded to 682586)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 607310

See Supercession: 610482
(Superseded to 610482)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 607311

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609727

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 609865

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 681817

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 608027

LOCKNUT S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

In Stock, Qty 6

0

10

Lawn-Boy 609860

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 609859

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 608997

SCREW S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

13

Lawn-Boy 681656

DISCONTINUED
(Superseded to 104-4446)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 681656

DISCONTINUED
(Superseded to 104-4446)

Note: Manual Start Models Only

$

$

Not available

14

Lawn-Boy 609978

SWITCH KNOB

Note: Manual Start Models Only

$15.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 609978

SWITCH KNOB

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 609549

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 609549

DISCONTINUED

Note: Manual Start Models Only

$

$

Not available

16

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, Qty 6

0

17

Lawn-Boy 609534

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 609119

DISCONTINUED

Note: Manual Start Models Only

$

$

Not available

17

Lawn-Boy 609119

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 604862

SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 608870

SHIELD

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 608161

CLAMP ROD KMC

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 608174

ROD 21" ADVANCE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 606452

SCREW SEMS TRM HEX HD

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 609614

See Supercession: 611297
(Superseded to 611297)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 609034

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 602175

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 681758

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 681758

DISCONTINUED

Note: Manual Start Models Only

$

$

Not available

30

Lawn-Boy 681761

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 13

0

32

Lawn-Boy 30632

Screw-Sems

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

33

Lawn-Boy 607605

SPACER ECK PRES

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 307417

GROMMET

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 609588

SPACER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

37

Lawn-Boy 311505

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 607188

SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

39

Lawn-Boy 681838

See Supercession: 94-1614
(Superseded to 94-1614)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 609022

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 608649

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 681369

See Supercession: 131-0848
(Superseded to 131-0848)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$78.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 608834

WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

44

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

45

Lawn-Boy 681229

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 608835

See Supercession: 610646
(Superseded to 610646)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

47

Lawn-Boy 603620

WASHER WROUGHT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

48

Lawn-Boy 605255

WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

49

Lawn-Boy 678636

WHEEL & TIRE KIT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

50

Lawn-Boy 605256

SPACER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

51

Lawn-Boy 603441

BOLT WHEEL

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

52

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

53

Lawn-Boy 603703

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

54

Lawn-Boy 605058

WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 12

0

55

Lawn-Boy 603541

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

57

Lawn-Boy 609471

SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

58

Lawn-Boy 609786

SUPPORT F

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

59

Lawn-Boy 681614

See Supercession: 682876
(Superseded to 682876)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$165.99

$

Usually ships in 3-6 days

0

60

Lawn-Boy 603773

LOCKNUT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, only 1 left!

0

61

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

62

Lawn-Boy 608175

BAR-TOE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$77.99

$

Usually ships in 3-6 days

0

63

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, Qty 16

0

64

Lawn-Boy 609677

COVER PLATE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$210.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 606733

WING SCREW LAWRE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$9.99

$

In Stock, Qty 6

0

66

Lawn-Boy 607601

SCREW V

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

67

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0
