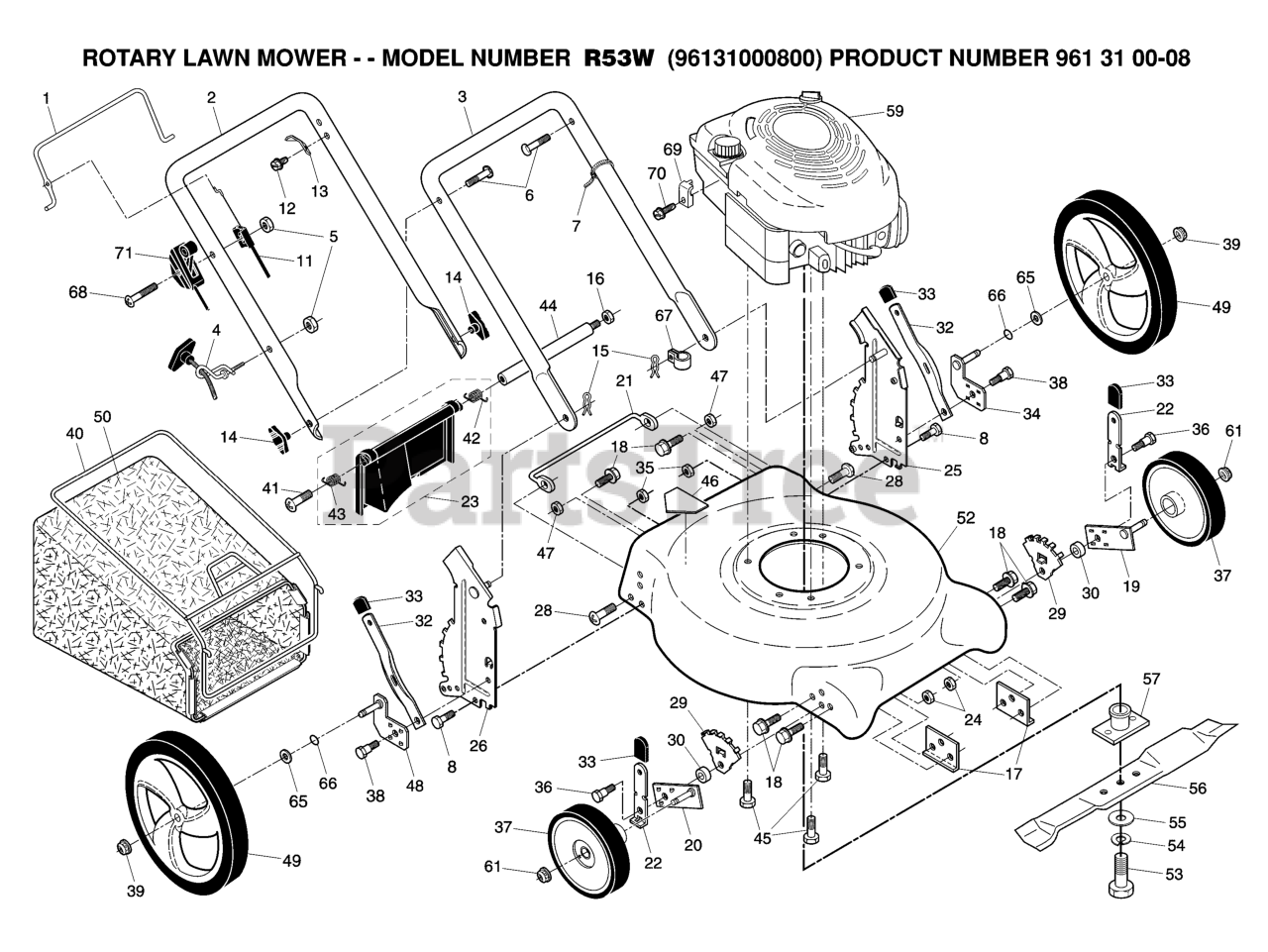

R 53 W (961310008-00) - Husqvarna Walk-Behind Mower (2006-02) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title

26

Husqvarna 532403113

NEEDS DESCRIPTION

$

$

Currently unavailable

37

Husqvarna 532403128

WHEEL.8X1.75.MAG2.BRK.GRY.TB.1

$

$

Not available

57

Husqvarna 532193707

ADAPTER.BLADE
(Superseded to 532420097)

$11.99

$

In Stock, Qty 20+

0

41

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

59

000000000

Note: B&S 12F802-1961-B1 FOR SERVICE & PARTS 1-800-233-3723

$

$

Not available

15

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

18

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532403112

BRACKET.ASM.HAND.HW.21.LT.BLAC
(Superseded to 580915604)

$24.99

$

In Stock, only 1 left!

0

8

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532125203

BRACKET
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

66

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532164362

SHOULDER BOLT

$

$

Not available

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 532189277

AXLE ARM ASSY
(Superseded to 532186577)

$

$

Not available

14

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

11

Husqvarna 532133107

ENGINE ZONE CONTROL

$20.99

$

In Stock, only 1 left!

0

42

Husqvarna 532165766

SPRING (LH)

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

36

Husqvarna 532160828

SHOULDER BOLT

$

$

Not available

39

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

61

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532402947

SPRING.SEL.EXT.21.DOME

$

$

Not available

43

Husqvarna 532165767

SPRING (RH)

$

$

Not available

3

Husqvarna 532174110

HANDLE.LOWER.GREY
(Superseded to 532174291)

$

$

Not available

2

Husqvarna 532403129

Upper Handle

$

$

Currently unavailable

30

Husqvarna 532183901

SPACER.34X1.38X.22

$7.49

$

In Stock, only 1 left!

0

44

Husqvarna 532185819

ROD.STIFFENER

$9.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532199377

BLADE.21.PUSH

$27.99

$

In Stock, only 2 left!

0

50

Husqvarna 532400070

NEEDS DESCRIPTION

$

$

Currently unavailable

24

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

33

Husqvarna 532087877

KNOB

$6.49

$

In Stock, only 1 left!

0

34

Husqvarna 532183661

ARM.ASM.AXLE.REAR.LT.B
(Superseded to 532180409)

$

$

Not available

67

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

52

Husqvarna 532400069

NEEDS DESCRIPTION

$

$

Currently unavailable

20

Husqvarna 532189278

AXLE ARM ASSY LF
(Superseded to 532186578)

$

$

Not available

70

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

28

Husqvarna 532054583

SCREW

$

$

Not available

69

Husqvarna 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

71

Husqvarna 532700417

THROTTLE CONTROL

$24.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532174112

SUPPORT BRACKET
(Superseded to 532165946)

$8.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

35

Husqvarna 532166785

LOCKNUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

23

Husqvarna 532186612

KIT.REAR.DOOR.21.DOMED.

$

$

Not available

- -

Husqvarna 532182191

DECAL.INTERN.4.SYMBOL.CURVED

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532165704

WHEEL BRACKET ADJUSTER
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

49

Husqvarna 532403127

WHEEL.12X1.75.
(Superseded to 532433099)

$47.99

$

In Stock, only 1 left!

0

21

Husqvarna 532169423

NEEDS DESCRIPTION

$

$

Currently unavailable

22

Husqvarna 532168599

REPL BY 532 1683-60
(Superseded to 532168360)

$

$

Not available

48

Husqvarna 532183662

ARM.ASM.AXLE.REAR.RT.BZP.RECS

$

$

Not available

1

Husqvarna 532195574

BAIL.MZR.STD.BLACK
(Superseded to 532194177)

$

$

Not available

40

Husqvarna 532194642

FRAME.BAG.21.REAR.DOME

$

$

Not available

45

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

- -

Husqvarna 532400064

NEEDS DESCRIPTION

$

$

Currently unavailable

46

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

- -

Husqvarna 532400063

NEEDS DESCRIPTION

$

$

Currently unavailable
